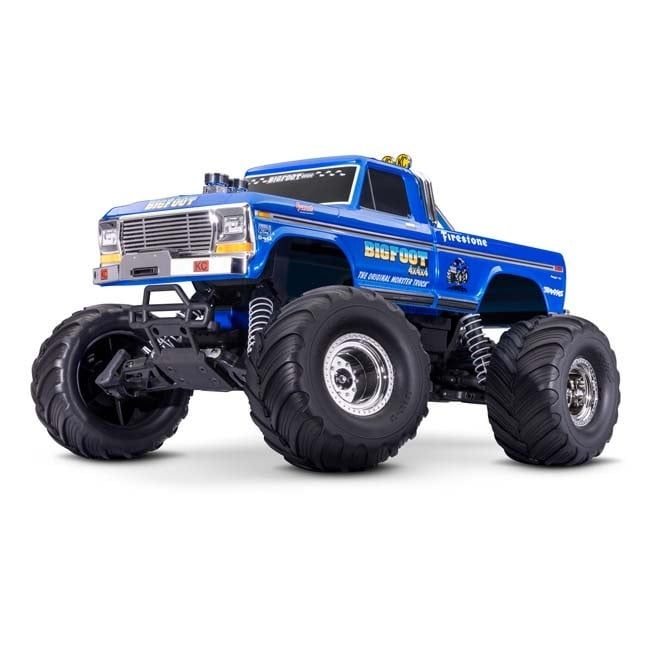

36234-8 Traxxas BIGFOOT No. 1: 1/10 Scale Monster Truck XL5

BIGFOOT No. 1 XL-5 w/Battery

MODEL 36234-8: BIGFOOT® No. 1 is The Original Monster Truck in a 1/10 Scale. This fully-assembled, waterproof, Ready-To-Race® model comes equipped with:

• TQ™ 2.4 GHz radio system
• XL-5™ electronic speed control
• 4-amp USB-C fast charger
• Clipless replica body

What’s In The Box:

• BIGFOOT® No. 1 with XL-5™ ESC and Titan® 550 Motor
• Quick Start Guide
• TQ™ 2.4 GHz radio system
• Traxxas 3000 mAh, 8.4-volt 7-cell NiMH battery with iD®
• 4-amp USB-C fast charger
• High-quality maintenance tools

What You’ll Need:

• Batteries: Four AA alkaline batteries for the transmitter
• USB Charger: Requires a USB power source and cable

Features

Licensed BIGFOOT® No. 1 Clipless Body

• Brilliant blue metallic officially licensed F-100 Ford® XLT Ranger body
• Chrome front bumper with replica winch
• Chrome grille with light buckets and reflectors
• Replica high-rise dual-carb intake manifold
• Chrome roll bar with replica KC lights
• Body reinforcements to prevent pull-through damage
• Holds tight for intense action
• Quick and easy removal
• Smooth appearance with no body posts or clips
• Includes wheelie bar

High-Performance Waterproof XL-5™ Electronic Speed Control

• Innovative waterproof design
• Three drive profiles:
  • Sport Mode: forward / brake / reverse
  • Race Mode: forward / brake
  • Training Mode™: 50% forward / brake / 50% reverse (patented)
• Traxxas EZ-Set® one-button setup
• LiPo and NiMH compatibility with two-stage low-voltage detection

Titan® 550 Motor

• Powerful Titan® 12T 550 brushed motor with internal cooling fan
• Oversized armature for big torque and increased power handling
• Virtually maintenance-free operation

Extreme Heavy Duty Parts Installed

• Strengthened C-hubs, axle carriers, and steering blocks
• HD suspension arms

TQ™ 2.4 GHz 2-Channel Radio System

• Ergonomic transmitter with internal antenna
• Traxxas 6519 3-channel micro receiver with fail-safe security
• Sealed watertight receiver box keeps the receiver dry

Includes Battery and USB-C Charger

• 4-amp USB-C fast charger
• 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®

Tough Fiber-Composite Monocoque Chassis

• Tall 4″ center ground clearance to drive over obstacles

Easy Access Battery Compartment

• Accepts NiMH 6 and 7-cell flat packs and hump packs
• Accepts 2-cell LiPo batteries

Transmission and Driveline

• Brushless-ready Magnum 272™ metal-gear transmission
• Torque-Control™ slipper clutch system
• Planetary gear differential with steel ring gear
• Sealed gearbox protects the transmission with beefed-up motor guard
• External gear cover with easy clutch access
• Heavy-duty telescoping U-joint driveshafts and yokes

Steering

• High-torque waterproof Traxxas 2056 steering servo
• Spring-loaded servo saver helps protect against impacts

Suspension

• Durable, solid camber links eliminate the need for adjustment
• Captured rod ends won't pop off

Springs and Shocks

• Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
• White powder-coated springs

Wheels and Tires

• Pre-glued high-profile Terra-Groove shaved monster truck tires
• 2.2″ Deep dish mirror-chrome beadlock-style wheels

Model Specs

• Model Name: BIGFOOT No. 1 HD w/USB-C
• Model Type: Monster Truck
• Model Speed: 30+ mph with 7-cell battery
• Model Skill Level: 1
• Scale: 1/10
• Weight: 4.08 pounds (1.85 kg)
• Length: 16.25 inches (413 mm)
• Width: 12.75 inches (324 mm)
• Front Track: 12.75 inches (324 mm)
• Rear Track: 12.75 inches (324 mm)
• Height: 9.5 inches (241 mm)
• Wheelbase: 10.63 inches (270 mm)
• Center Ground Clearance: 4 inches (102 mm)
• Drivetrain: 2WD
• Transmission: Magnum 272™
• Differential Type: Planetary steel gear
• Gear Ratio (Internal): 2.72 (final drive: 12.34)
• Gear Pitch: 48 pitch
• Servo(s): 2056 high-torque waterproof
• Radio System: TQ™ 2.4 GHz 2-channel radio
• Battery Compartment Specs: 164 mm X 46 mm X 26 mm

Motor Specs

• Motor Name: Titan® 12T 550
• Motor Type: High-speed brushed motor
• Motor Weight: 8.47 ounces (240 g)
• Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
• Motor Diameter: 1.41 inches (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Bullet

ESC Specs

• ESC Name: Waterproof XL-5™ ESC with low-voltage detection
• ESC Type: Brushed
• ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
• ESC Weight: 2.44 ounces (69 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High-Current Connector
• ESC Power Wire: 14 gauge
