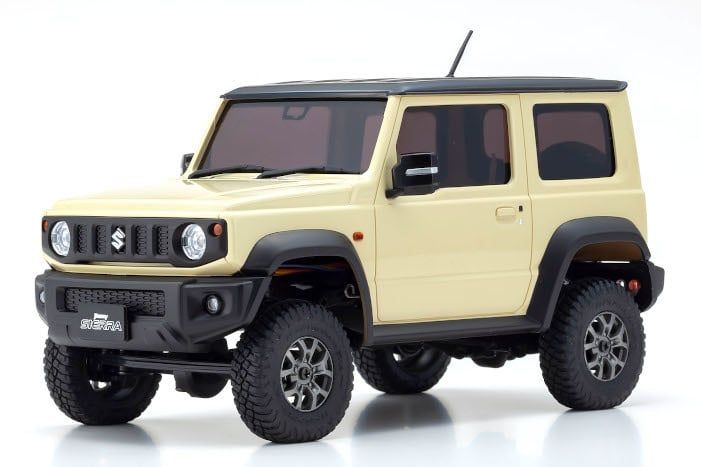

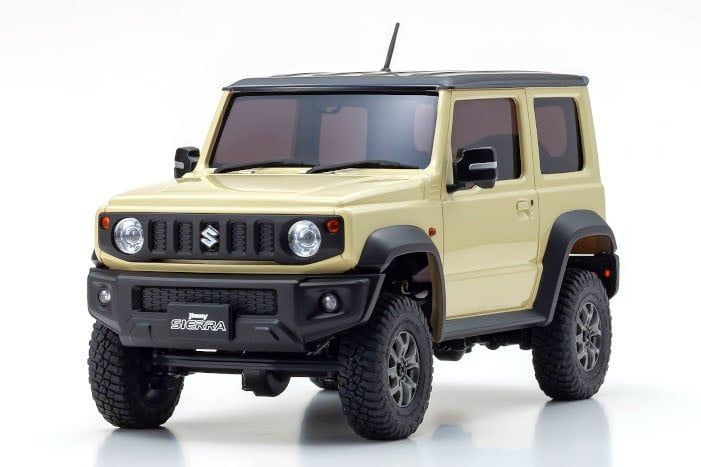

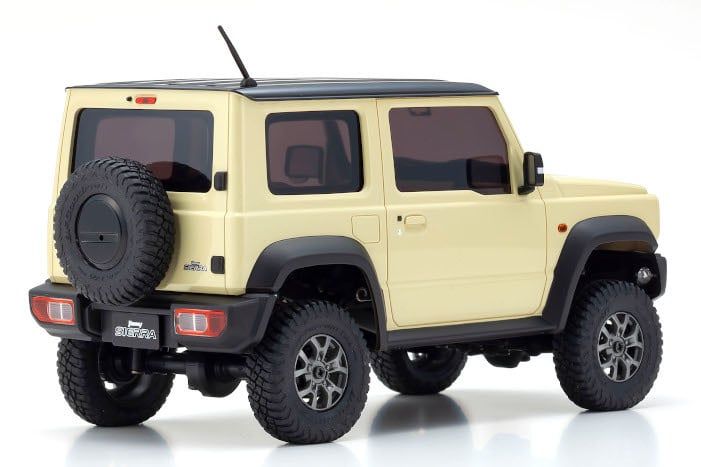

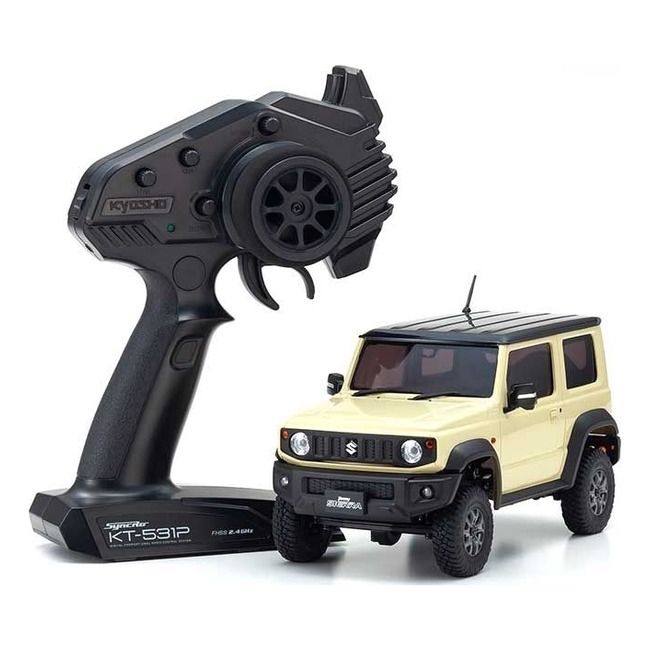

KYO-32523IV Kyosho Mini-Z 4x4 Suzuki Jimny Sierra Chiffon Ivory Readyset

Mini-Z 4x4 Suzuki Crawler

Balancing exquisite style, scale detail, and superior driving performance, the MINI-Z 4x4 is designed to impress. All you need is 8 x AAA alkaline batteries (sold separately) to start enjoying this marvel. Whether you're navigating normal driving conditions or tackling rock crawling adventures, this mini crawler delivers stunning visual appeal and unmatched performance.

The Kyosho Mini-Z 4x4 stands out as the only mini crawler that offers a full range of crawling capabilities in a compact package. Key features include:

• Ladder frame design with steel vertical plates
• Solid front and rear axles with steel tie rods
• Metal ring and pinion gears and other metal components for excellent durability and construction

Required For Operation

• 4 AAA batteries for the transmitter
• 4 AAA batteries for the chassis

Technical Data

• Length: 193mm
• Width: 84mm
• Height: 90.0mm
• Chassis Type: MX-01
• Wheel Base: 120mm
• Tread F/R: 72.7mm
• Weight: 242g (excluding battery)
• Motor/Engine: 130 Class
• Gear Ratio: 55.44:1 / 30.80:1 / 46.20:1 / 27.72:1 / 39.60:1 / 34.65:1
• Front Tire Diameter: 37.0mm
• Rear Tire Diameter: 37.0mm
• Front Tire Width: 12.0mm
• Rear Tire Width: 12.0mm
• Battery: 4 x AAA alkaline (vehicle)

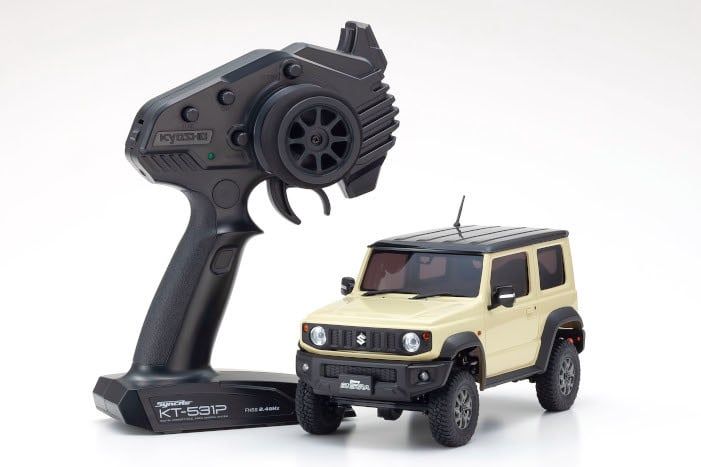

• Transmitter: Syncro KT-531P
• Speed Approx.: 2.7km/h - 5.4km/h (Pinion gears 10T - 20T)
• Running Time: Approx. 60 mins (variable depending upon terrain and usage)

Visual Highlights

Kyosho Mini-Z Ladder Frame

Kyosho Mini-Z 4x4 Ring and Pinion

Kyosho Mini-Z 4x4 Transmission

Watch It In Action
