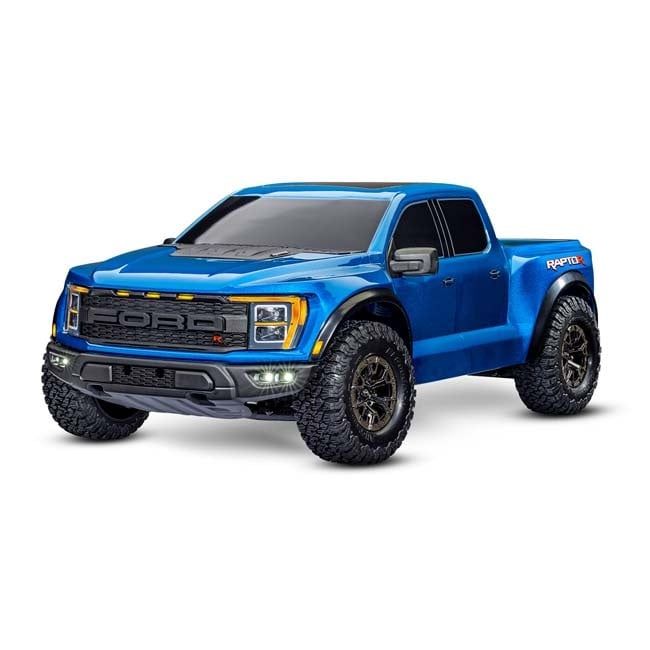

TRX-101076-4-BLUE Traxxas Ford Raptor R: 4X4 VXL 1/10 Scale 4X4 Brushless Replica Truck

Ford F-150 Raptor R: 1/10 scale 4X4 short course truck, fully-assembled, waterproof electronics, Ready-To-Race, with TQi™ 2.4 GHz Transmitter

Features
Officially Licensed Ford ® F-150 ® Raptor R™ Pro Scale ® Clipless Body and Graphics
Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
LED lighting in front and rear bumpers
Body reinforcements to prevent pull-through damage

Clipless Body Mounting
Holds tight for intense action
Quick and easy removal
Smooth appearance with no body posts or clips

Extreme Heavy-Duty Upgrade Kit Installed
Made from our toughest cold-weather resistant composite
Strengthened C-hubs, axle carriers, steering blocks, and shock towers
Extreme heavy-duty driveshafts
Oversize diameter
6 mm axles
Steel wheel hexes

VXL-3s ™ Waterproof Electronic Speed Control
Cooling fan with large heat sink
Three Programmable Drive Profiles
Sport Mode - Forward / Brake / Reverse
Race Mode - Forward / Brake
Training Mode ™ - 50% Forward / Brake / 50% Reverse (patented)
Traxxas EZ-Set ® one-button setup
Built-in two-stage low-voltage detection for LiPo batteries
NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Up to 60+ mph with 3s LiPo battery

Velineon ® 3500 kV Brushless Motor
Ultra high-temperature sintered Neodymium magnets
Optimized for power and efficiency in 1/10th scale vehicles
Efficient, high-speed ball bearings
Precision-balanced rotor
3500 kV
Brilliant blue-anodized finish

Traxxas Stability Management ® (TSM)
Improves straight line acceleration and braking on low-traction surfaces
Maintains steering composure to allow throttle-on powerslides
Never dulls throttle or slows the truck
Adjusts from off to 100% assistance from the transmitter

TQi ™ 2.4 GHz High Output Radio System
TQi ™ 2-channel transmitter
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
Programmable multi-function knob
Adjustable steering and throttle percentage (dual rates)
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle end points
5-channel micro receiver (6533) with fail-safe security
Patented waterproof receiver box with easy-access plug

Chassis
Extended modular composite tub design
Secure battery hold-down latch
Side nerf bars for impact resistance

Drivetrain
Full-time shaft-driven 4-wheel drive
Oil-filled steel gear front and rear differentials
Large 32-pitch steel spur gear
Anodized-aluminum center driveshaft

Steering
Chassis-mounted 2075 servo
Dual bellcrank design with integrated servo saver

Suspension
Heavy-duty suspension arms
Adjustable 4 mm steel toe and camber links
Oil-filled Ultra Shocks
White powder-coated progressive springs

Wheels and Tires
Licensed Ford replica option wheels
2″ outer diameter, 3″ inner diameter
Licensed BFGoodrich ® All-Terrain T/A ® KO2 tires
Larger114 mm diameter

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Model Specs
Model Name: Ford Raptor R 4X4 VXL: 1/10 Scale 4X4 Brushless Replica Truck
Model Type: Short Course Trucks
Model Speed: 60+ mph with optional gearing and 3s LiPo battery (items sold separately)
Model Skill Level: 2
Scale: 1/10
Weight: 6.05 pounds (2.74 kg)
Length: 24.98 inches (637 mm)
Width: 11.63 inches (289 mm)
Front Track: 11.63 inches (289 mm)
Rear Track: 11.63 inches (289 mm)
Height: 8.91 inches (226 mm)
Wheelbase: 15.11 inches (384 mm)
Center Ground Clearance: 2.05 inches (52 mm)
Drive System: Shaft-driven 4WD
Drivetrain: Shaft-driven 4WD
Differential Type: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32 pitch
Servo(s): 2075 high-torque waterproof
Radio System: TQi™ 2.4 GHz 2-channel radio
Battery Compartment Specs: 165 mm X 50 mm X 23/26 mm

Motor Specs
Motor Name: Velineon® 3500
Motor Type: Sensorless brushless
Motor Weight: 9.24 ounces (262 g)
Motor Length: 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length
Motor Diameter: 1.41 inches (36 mm)
Motor Shaft Size: 3 mm
Motor Connector Type: 3.5 mm bullet

ESC Specs
ESC Name: VXL-3s™ electronic speed control
ESC Type: Brushless
ESC Case Size: 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm)
ESC Weight: 3.17 ounces (90 g)
Motor Connectors: 3.5 mm bullet
Battery Connectors: Traxxas High-Current Connector
ESC Power Wire: 12 gauge Maxx® Cable

What You’ll Need:

• Batteries -

  Raptor R requires a single NiMH or LiPo battery with Traxxas ID Connector.

• Charger -

  Traxxas EZ-Peak^® Live charger (2971) is recommended for easy and fast charging performance.

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
