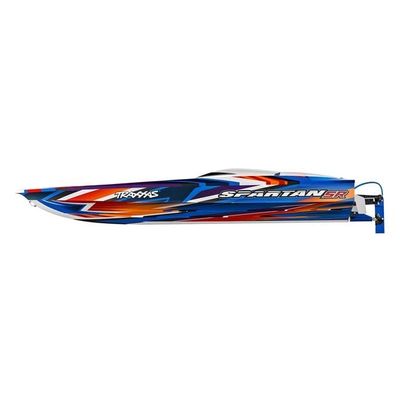

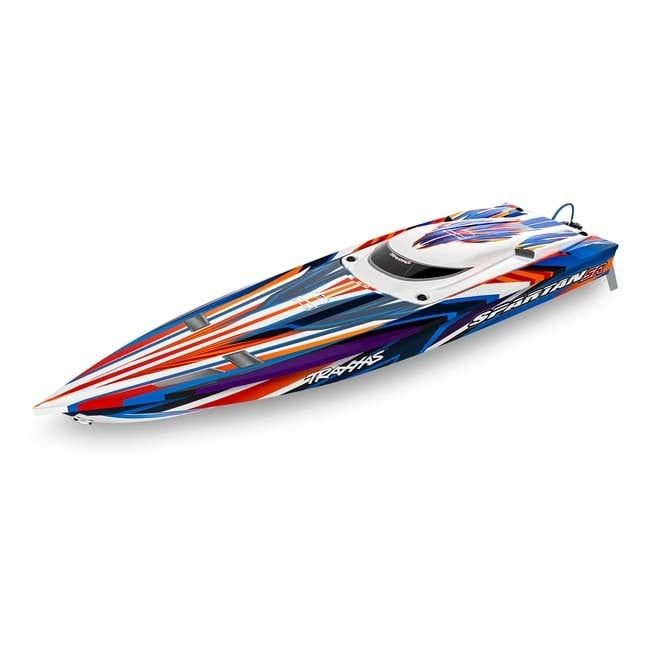

TRX-103076-4-ORNG Traxxas Spartan SR Self Righting boat

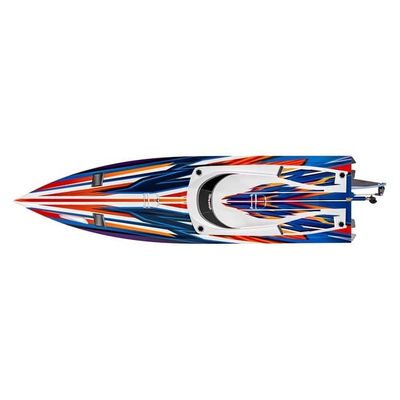

Spartan SR Self-Righting Boat

Extreme Full-Throttle Fun with Self-Righting - the Spartan® SR is built for speed and performance. Pull the trigger, and Spartan SR immediately jumps to life!

Self-Righting Security

Self-righting is more than a convenience feature; it’s an all-access pass to exploit Spartan’s full 50+ mph fury. Boaters of all skill levels will enjoy the confidence-inspiring security of self-righting. There’s no need to back off the throttle or tone down the action. Just pin the throttle, and Spartan SR takes care of the rest.

Model Overview

MODEL 103076-4 Spartan SR: Brushless race boat with self-righting, TQi™ 2.4 GHz radio system, Traxxas Stability Management® (TSM), Velineon® 540XL Brushless Motor, VXL-6s Marine ESC, and factory-applied graphics.

Key Features

• 36″ Reinforced Deep-V Hull
  • Made from lightweight vacuum-formed ABS
  • Self-righting flood chamber
  • Pre-applied graphics

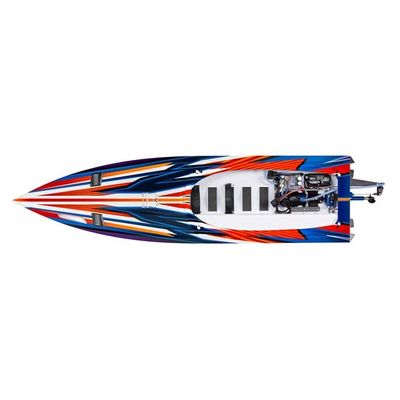

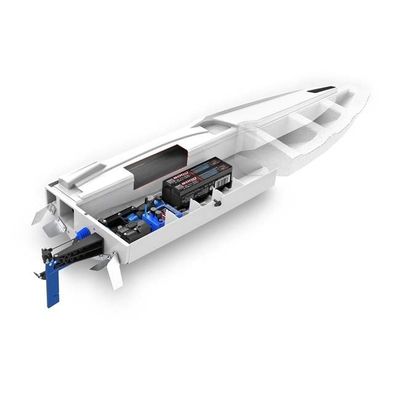

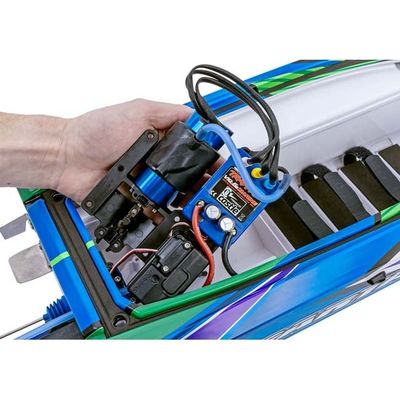

• Quick-Release Electronics Tray
  • Rigid Injection-Molded Clipless Hatch
  • Four quick-release hatch nuts with tool
  • Foam seal keeps water out
  • Includes optional tool-free wingnuts
• Up to 50 MPH with Dual 3s LiPo Batteries

VXL-6s™ Marine Electronic Speed Control

• Water-cooled case
• Three drive profiles:
  • Sport Mode - forward / brake / reverse
  • Race Mode - forward / brake
  • Training Mode™ - 50% forward / brake / 50% reverse (patented)
• Built-in two-stage low-voltage detection for LiPo batteries
• Compatible battery packs:
  • NiMH: 14 cells (16.8 volts)
  • LiPo: 4-6 cells (14.8 to 22.2 volts)

Velineon® 540XL Brushless Motor

• Ultra high-temperature sintered Neodymium magnets
• Efficient, high-speed ball bearings
• 1800 kV
• 5 mm output shaft
• Water-cooled jacket

Traxxas Stability Management® (TSM)

• Improves straight-line acceleration
• Never dulls the throttle or slows the vehicle
• Adjusts from 'off' to 100% assistance from the transmitter

TQi™ 2.4 GHz Radio System

• 2-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Programmable multi-function knob
• Patented waterproof receiver box

Extra-Long 218 mm Battery Tray

• Centralizes battery weight
• Allows fore and aft battery positioning
• Accommodates multiple battery configurations
• Secure hook and loop straps

Driveline

• Heavy-duty 4.7 mm diameter flex shaft
• Quick-release motor collet
• Blue-anodized aluminum drive strut
• Low-maintenance bushings
• High-performance prop

Steering

• Waterproof digital 2056 servo
• Blue-anodized aluminum rudder with water pickup

Additional Features

• Precision-Cut Stainless Steel Trim Tabs and Turn Fins
• Stainless Steel Hex Hardware Used Throughout

Specifications

• Model Name: Spartan SR Race Boat
• Model Type: Boats
• Model Speed: 50+ mph with two 3-cell LiPo batteries
• Model Skill Level: 2
• Scale: 1/10
• Weight: 5.29 pounds (2.39 kg)

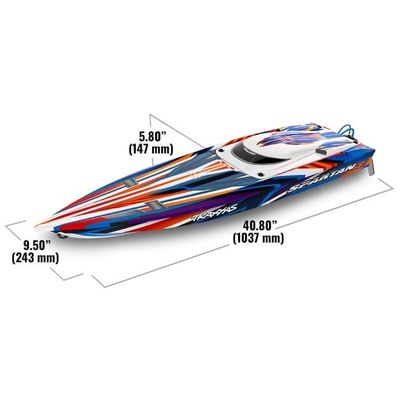

• Length: 40.8 inches (1037 mm)
• Width: 9.5 inches (243 mm)
• Height: 7.2 inches (183 mm)
• Drive System: Direct drive, 4.7 mm flex cable

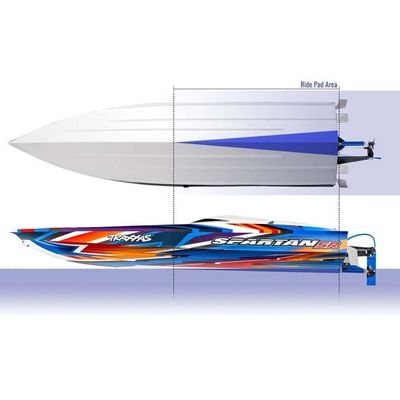

Hull Details:

• Hull Length: 36.5 inches (927 mm)
• Dead Rise Angle: 26 degrees
• Hull Type: Composite Deep-V

Outdrive: Adjustable aluminum

Servo(s): 2056 high-torque waterproof

Radio System: TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

Motor Specifications

• Motor Name: Velineon® 540XL Marine
• Motor Type: Sensorless brushless
• Motor Weight: 13.62 ounces (386 g)
• Motor Length: 4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length
• Motor Diameter: 1.42 inches (36 mm)
• Motor Shaft Size: 5 mm
• Motor Connector Type: Traxxas 5.5 mm bullet connectors

ESC Specifications

• ESC Name: Velineon® VXL-6s Marine
• ESC Type: Brushless
• ESC Case Size: 2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
• ESC Weight: 7.30 ounces (207 g)
• Motor Connectors: Traxxas 5.5 mm bullet connectors
• Battery Connectors: Traxxas High Current Connector

Note: Battery and Charger Sold Separately
