TRX-36334-4 Traxxas BIGFOOT No. 1 BL-2s HD

BIGFOOT No. 1 BL-2s

Model Overview:

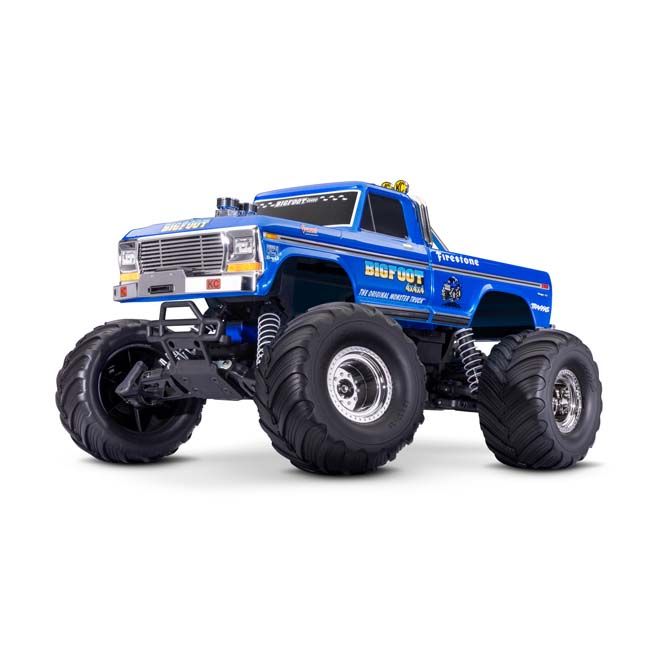

MODEL 36334-4: BIGFOOT No. 1 is a 1/10 scale 2WD monster truck that comes fully assembled with waterproof electronics. It is Ready-To-Race®, featuring the TQ™ 2.4 GHz 2-channel radio system, BL-2s™ brushless power system, and a clipless painted body.
Note: Battery and charger are required and sold separately.

---

What’s In The Box:

• 2WD BIGFOOT monster truck with BL-2s ESC and 3300 Kv motor
• Quick Start Guide
• TQ™ 2.4 GHz radio system
• High-quality maintenance tools

---

What You’ll Need:

• Battery: BIGFOOT BL-2s requires a single NiMH or LiPo battery.
• Charger: Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

---

Features:

Licensed BIGFOOT® No. 1 Clipless Body

• Brilliant blue metallic officially licensed F-100 Ford® XLT Ranger body
• Chrome front bumper with replica winch
• Chrome grille with light buckets and reflectors
• Replica high-rise dual-carb intake manifold
• Chrome roll bar with replica KC lights
• Body reinforcements to prevent pull-through damage
• Holds tight for intense action
• Quick and easy removal
• Smooth appearance with no body posts or clips
• Includes wheelie bar

---

BL-2s™ Waterproof Electronic Speed Control

• Heat sink accepts accessory cooling fan
• Three Programmable Drive Profiles:
  • Sport Mode: forward / brake / reverse
  • Race Mode: forward / brake
  • Training Mode™: 50% forward / brake / 50% reverse (patented)
• Traxxas EZ-Set® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection
• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
• LiPo battery packs: 2 cells (7.4 volts)

---

BL-2s Brushless Motor

• Integrated cooling fan
• Low-maintenance design
• Efficient ball bearings
• 3300 kV
• Virtually maintenance-free

---

Extreme Heavy Duty Parts Installed

• Strengthened C-hubs, axle carriers, and steering blocks
• HD suspension arms
• Extreme heavy-duty driveshafts
• Extra material for improved strength

---

TQ™ 2.4 GHz 2-Channel Radio System

• Ergonomic transmitter with internal antenna
• Traxxas 6519 3-channel micro receiver with fail-safe security
• O-ring sealed watertight receiver box keeps the receiver dry

---

Easy Access Battery Compartment

• Adjustable battery hold-down
• Accepts 6- and 7-cell flat packs and 7-cell hump packs
• Accepts many 2s LiPo battery configurations

---

Transmission and Driveline

• Velineon®-ready Magnum 272™ metal-gear transmission
• Torque-Control™ slipper clutch system
• Planetary gear differential with steel ring gear
• Sealed gearbox protects the transmission with beefed-up motor guard
• External gear cover with easy clutch access

---

Tough Fiber-Composite Monocoque Chassis

• Tall 4″ center ground clearance to drive over obstacles

---

Steering

• High-torque waterproof Traxxas 2056 steering servo
• Spring-loaded servo saver helps protect against impacts

---

Suspension

• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won't pop off

---

Springs and Shocks

• Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
• White powder-coated springs

---

Wheels and Tires

• Pre-glued high-profile Terra-Groove shaved monster truck tires
• 2.2″ Deep dish mirror-chrome beadlock-style wheels

---

Additional Features:

• Rubber-Sealed Ball Bearings
• Precision Hex Hardware

---

Important Note:

Battery and Charger Sold Separately
