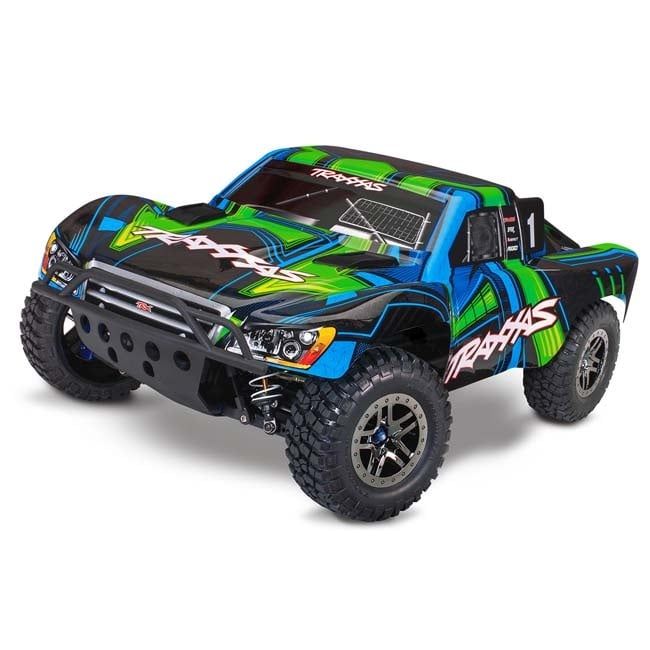

TRX-68277-4-GRN Traxxas Slash 4x4 Ultimate Clipless

Slash 4X4 VXL Ultimate

Model 68277-4

The Slash® 4X4 Ultimate is a 1/10 scale 4X4 short-course truck, fully assembled and equipped with waterproof electronics. This Ready-To-Race® vehicle features a TQi™ 2.4 GHz 2-channel radio system with a factory-installed Wireless Module and telemetry sensors, VXL-3s™ speed control, and a clipless ProGraphix® body.
Requires: Battery and charger.

What’s In The Box:

• Slash 4X4 Ultimate with Velineon VXL-3s and 3500 kV motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High-quality maintenance tools

What You’ll Need:

• Battery: A single NiMH or LiPo battery for the Slash 4X4 VXL.
• Charger: The Traxxas EZ-Peak® Live charger (2971) is recommended for fast and easy charging performance.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

Key Features:

Pre-Installed Heavy-Duty Aluminum Upgrades

• Blue-anodized 6061-T6 aluminum C-hubs
• Blue-anodized 6061-T6 aluminum steering blocks
• Blue-anodized 6061-T6 aluminum rear hub carriers
• Blue-anodized 6061-T6 aluminum axle nuts

Clipless ProGraphix® Painted Body

• Pre-painted body with applied decals.
• Scale dimensions and looks of actual short-course race trucks.
• Chassis nerf bars absorb impact and support the body.
• Scale front and rear tube-style bumpers.

VXL-3s™ Waterproof Electronic Speed Control

• Three programmable drive profiles:
  • Sport Mode - Forward / Brake / Reverse
  • Race Mode - Forward / Brake
  • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup.
• Large heat sink.
• Built-in two-stage low-voltage detection for LiPo batteries.
• Compatible with:
  • NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
  • LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Velineon® Brushless Motor

• Ultra high-temperature sintered neodymium magnets.
• Optimized for power and efficiency in 1/10th scale vehicles.
• Low-maintenance, unique Traxxas design.
• Efficient, high-speed ball bearings.
• Precision-balanced rotor.
• 3500 kV motor with a brilliant blue-anodized finish.

Traxxas Stability Management® (TSM)

• Improves straight-line acceleration and braking on low-traction surfaces.
• Maintains steering composure to allow throttle-on powerslides.
• Never dulls the throttle or slows the truck.
• Adjustable from off to 100% assistance via the transmitter.

TQi™ 2.4 GHz High Output Radio System

• TQi 2-channel transmitter.
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports.
• Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately).
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models.
• Programmable multi-function knob.
• Adjustable steering and throttle percentage (dual rates).
• Adjustable steering and throttle sensitivity (exponential).
• Adjustable steering and throttle end points.
• Patented waterproof receiver box with easy-access plug.

Performance and Design Features:

Low-CG Reinforced Monocoque Chassis

• Batteries and electronics are held low for improved handling.
• Low-CG design dramatically increases corner speed.
• Modular chassis makes maintenance quick and easy.
• Long 12.75″ wheelbase for increased stability.
• Easy motor access with single-screw motor plate attachment.
• All electronics securely fastened to chassis.
• Integrated personal transponder mount.

Easy Access Battery Compartment

• Adjustable battery hold-down.
• Accepts 6- and 7-cell NiMH flat packs.
• Accepts many 2s and 3s LiPo battery configurations.

Transmission and Driveline

• Full-time shaft-driven 4WD.
• Blue-anodized aluminum center driveshaft.
• Torque-Control™ slipper clutch with large 32-pitch gearing.
• Sealed, silicone-filled differentials with steel gears.
• Upgraded extreme-duty telescoping driveshafts.

Steering

• Digital high-speed 2075R waterproof metal gear steering servo.
• Dual bellcrank steering system with integrated servo saver.

Suspension

• Impact-resistant heavy-duty suspension arms.
• Adjustable front and rear sway bars.
• Adjustable steel turnbuckles.
• Captured rod ends won't pop off.

Springs and Shocks

• High-volume GTR shocks with adjustable-collar blue PTFE-coated aluminum bodies and titanium-nitride coated shafts.
• Race-tuned white powder-coated springs.

Wheels and Tires

• Officially-licensed BFGoodrich® Mud-Terrain™ T/A® Tires molded in S1 race compound.
• 2″ outer diameter, 3″ inner diameter dual-profile SCT wheels.

Additional Features:

• Rubber-Sealed Ball Bearings
• Precision Hex Hardware
• Backed by Unparalleled Traxxas Support and Parts Availability

Important Note:

Requires Battery and Charger (Sold Separately).
