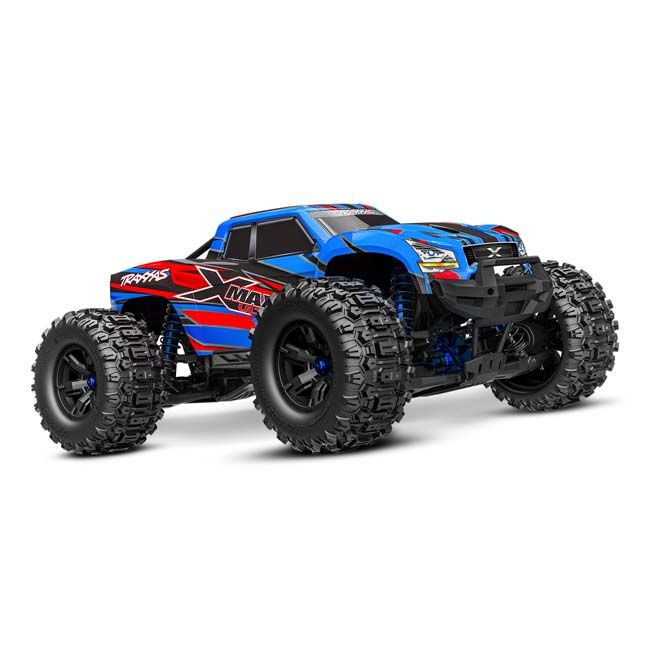

TRX-77097-4-BLUEX Traxxas X-Maxx® Ultimate (BLUE X)

X-Maxx Ultimate

MODEL 77097-4: The X-Maxx Ultimate comes fully assembled, Ready-To-Race, equipped with the TQi 2.4 GHz radio system, VXL-8s brushless power system, and a ProGraphix clipless body.

What’s In The Box

• X-Maxx Ultimate: Ready-To-Race model with Traxxas Big Block™ brushless motor
• VXL-8s Waterproof Electronic Speed Control: Includes integrated telemetry
• Quick Start Guide
• TQi 2.4 GHz Radio System: Comes with a factory-installed wireless module
• High-Quality Maintenance Tools

What You’ll Need

• Batteries: Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (part 2997).
• Charger: 4s LiPo Balance Charger with iD®
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

Key Features

High Performance Aluminum Upgrades

• 6061-T6 aluminum C-hubs
• 6061-T6 aluminum steering blocks
• 6061-T6 aluminum rear hub carriers
• 6061-T6 aluminum differential housings
• 6061-T6 aluminum motor mounts

VXL-8s™ Waterproof Electronic Speed Control

• 8s LiPo compatible
• Built-in cooling fan
• Machined heat sinks
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights

Velineon® 1200XL Brushless Motor

• 4-pole 1275 Kv
• 5 mm output shaft
• Aluminum slip-on heat sink
• Dual motor cooling fans

Performance

• Achieves 50+ MPH with two 4s LiPo batteries and optional gearing (sold separately).

Traxxas Stability Management® (TSM)

• Prevents spinouts and loss of control.
• Adjustable assistance from off to 100% via the transmitter.

TQi™ 2.4 GHz 2-Channel Radio System

• Factory-installed telemetry sensors
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

Clipless Body Mount System

• Quick one-handed installation and removal
• Pivoting rear latch mechanism
• Eliminates body posts and clips
• Reinforced for extra protection

Drivetrain

• Machined, hardened steel pinion and spur gear
• Full-time shaft-driven 4-wheel drive
• Heavy-duty steel CV driveshafts with laser etching
• Beefed-up steel differential output cups
• Splined aluminum center driveshaft
• Machined aluminum stub axles
• Torque-Biasing Center Drive™ absorbs shocks and distributes power
• 24 mm splined wheel hexes
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears

Fixed Motor Mounting System

• Rigid aluminum motor mounts
• Preset gear mesh adjustments (no manual adjustments required)
• Motor retention is separate from the gear mesh

Heavy-Duty Modular Composite Chassis

• Interlocking front and rear bulkheads
• Motor mounts to the rear bulkhead to eliminate gear-crunching flex
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt and grit

Snap-Lock Battery Retention System

• No body clips or hook-and-loop straps
• Battery hold-downs pivot for easy access
• Adjustable for battery size
• More secure than conventional retention systems
• Integrated into the chassis top brace for improved battery tray and chassis stiffness

Bumpers

• Front energy-absorbing rubber impact bumper
• Lower front and rear skids for impact and abrasion resistance
• Integrated nerf bars for side impact resistance

Steering

• 6061-T6 aluminum steering bellcranks
• 2085RL high-output metal-gear steering servo
  • 650 oz-in torque at 6.0 volts
  • 0.13 sec/60° at 6.0 volts
• Double-shear aluminum servo horn
• Heavy-duty servo saver spring

Suspension

• TUBES 7075-T6 Aluminum front toe links
• All critical suspension points have double shear strength
• High-strength steel suspension pins used throughout
• Suspension pin retainers won’t come loose or “back out”
• C-hub and steering block geometry maximizes steering angle
• Adjustable roll center
• Steel upper and lower tie bars
• Full-contact sealed bearings used in exposed locations

Aluminum GTX™ Shocks

• Machined aluminum threaded body
• Extra-large bore and capacity
• Ultra-smooth TiN-coated 5.2 mm damper shafts
• Lower seal cartridge includes an integrated wiper seal combination
• Adjustable aluminum upper spring retainer
• Aluminum shock caps with pivot balls
• Fixed shock locations
• Lower spring perches bolted on

Wheels/Tires

• Massive 8.4″ Sledgehammer® belted tires
  • Virtually eliminates ballooning at high speeds
  • Open tread block design
  • 2-piece foam insert
  • High-strength glue and bead design
• Large, dual-diameter wheels
