Name: Traxxas Ford Raptor R 4X4 VXL 1/10 Brushless Truck Red 101076-4-RED - Collector Specs
Brand: TRX - Traxxas
SKU: 101076-4-RED
Price: 499.95 USD
Availability: OutOfStock

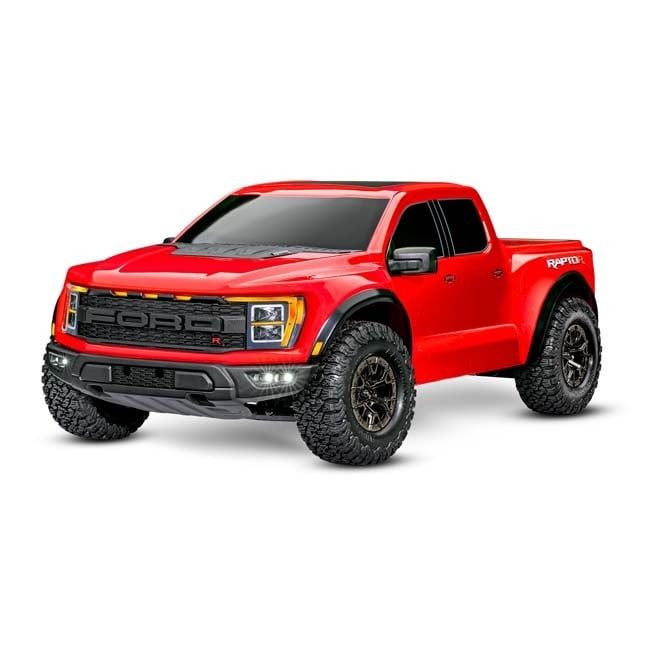

TRX-101076-4-RED Traxxas Ford Raptor R 4X4 VXL 1/10 Scale Brushless Truck - Red (Collector Specs)

+12

+11

+10

TRX-101076-4-RED Traxxas Ford Raptor R 4X4 VXL 1/10 Scale Brushless Truck - Red (Collector Specs)

Product Details

UPC: 020334012234

Brand: TRX - Traxxas

Tags: 101076-4-RED, TRA101076-4-RED, TRX-101076-4-RED, Ford Raptor R, Ford F-150 Raptor R, VXL-3s, 1/10 scale, 4WD brushless, short course truck, Collector Specs, 101076-4

The Ford Raptor R 4X4 VXL brought Ford-licensed Pro Scale realism and serious VXL-3s brushless performance together in a 1/10 scale short course package. This is a collector-grade listing — the 101076-4 has been superseded and is no longer in production.

Current Model

This model has been discontinued. The Ford Raptor R 4X4 Ultimate (101177-4) is its current successor — upgraded to 4S VXL-4s power, the Velineon 540XL motor, aluminum GTR shocks, and a TQi radio with Traxxas Link wireless module included. Browse all current RC Cars & Trucks for available models.

What's Included

Fully assembled Ford Raptor R 4X4 VXL — ready to run
TQi 2.4GHz 2-channel transmitter
5-channel micro receiver (6533) with TSM and waterproof receiver box
VXL-3s waterproof electronic speed control
Velineon 3500 brushless motor
2075 high-torque waterproof servo
Officially licensed Ford F-150 Raptor R Pro Scale clipless painted body

You Also Need

⚠️ Vehicle battery NOT included — requires a single NiMH (6–9 cell) or LiPo (2S–3S) with Traxxas iD connector
⚠️ Battery charger NOT included — Traxxas EZ-Peak Live (2971) recommended
⚠️ 4 AA alkaline batteries required for transmitter — not included. Traxxas AA batteries (2914) available separately.

Size & Scale

1/10 scale — about the size of a watermelon, or a pizza box. Fully assembled: 24.98 in × 11.63 in × 8.91 in (637 mm × 295 mm × 226 mm). Wheelbase: 15.11 in (384 mm). Weight: 6.05 lb (2.74 kg).

Key Features

VXL-3s brushless system — Velineon 3500 motor paired with the waterproof VXL-3s ESC; 2S–3S LiPo capable, rated 60+ mph with 3S LiPo and optional gearing
Officially licensed Ford body — Pro Scale clipless Ford F-150 Raptor R body with molded bumpers, grille, hood vent, side mirrors, and front/rear LED lighting
Extreme Heavy-Duty Upgrade Kit installed — cold-weather-resistant composite C-hubs, axle carriers, steering blocks, shock towers, and oversize 6 mm steel axles with steel wheel hexes
Traxxas Stability Management (TSM) — helps maintain straight-line acceleration and braking on low-traction surfaces without limiting throttle or speed; adjustable via the TQi Multi-Function knob
Three ESC drive modes — Sport (Forward / Brake / Reverse), Race (Forward / Brake only — reverse locked out), Training (Forward / Brake / Reverse — 50% power limit)
Fully waterproof electronics — ESC, receiver, and servo are all waterproof for all-weather use

Who It's For

Built for intermediate to advanced drivers (Skill Level 2) who want serious brushless performance in a scale-realistic short course truck package. At home on dirt, gravel, asphalt, and grass.

Specs

Spec	Value
Scale	1/10
Drive System	Shaft-driven 4WD
Motor	Velineon 3500 brushless sensorless — 3500 kV
ESC	VXL-3s waterproof brushless — 2S–3S LiPo / 6–9 cell NiMH
Servo	2075 high-torque waterproof
Radio System	TQi 2.4GHz 2-channel with TSM receiver (6533)
Top Speed	60+ mph (optional gearing + 3S LiPo, items sold separately)
Skill Level	2
Length	24.98 in (637 mm)
Width	11.63 in (295 mm)
Height	8.91 in (226 mm)
Wheelbase	15.11 in (384 mm)
Ground Clearance	2.05 in (52 mm)
Weight	6.05 lb (2.74 kg)
Battery Compartment	165 mm × 50 mm × 23/26 mm
Differential Type	Hardened steel bevel, sealed, limited slip (front & rear)
Gear Pitch	32 pitch
Drivetrain	Shaft-driven 4WD; oil-filled steel gear front & rear differentials
Tires	BFGoodrich All-Terrain T/A KO2 — 114 mm diameter
Wheels	Licensed Ford replica option wheels
Motor Shaft	3 mm
Motor Connector	3.5 mm bullet
Battery Connector	Traxxas High-Current iD Connector

Frequently Asked Questions

Does this come with a battery and charger?: No — a vehicle battery and charger are sold separately. The Raptor R VXL requires a single NiMH (6–9 cell) or LiPo (2S–3S) battery with a Traxxas iD connector. The Traxxas EZ-Peak Live (2971) is the recommended charger. Four AA alkaline batteries for the transmitter are also required and not included.
How fast does it go?: The Raptor R VXL is rated at 60+ mph with optional gearing and a 3S LiPo battery (both sold separately). Stock gearing with a 3S LiPo delivers strong performance; exact speed varies with battery, surface, and gearing.
What battery does it take?: A single NiMH (6–9 cell, 7.2–10.8V) or LiPo (2S–3S, 7.4–11.1V) with a Traxxas iD connector. Do not exceed 3S — the VXL-3s ESC is not rated for 4S.
What's the difference between this and the Raptor R 4X4 Ultimate (101177-4)?: The Ultimate is a significant step up: 4S VXL-4s power system, larger Velineon 540XL motor, aluminum GTR shocks with TiN-coated shafts, XHD aluminum outer suspension, and a TQi radio with Traxxas Link wireless module included from the factory. The VXL is the 3S predecessor.
Is this available for in-store pickup in Greeley?: This model has been discontinued and is no longer in stock. Shop online and ship to your door, or stop by JackWagon R&C Hobbies in Greeley, CO to see current Traxxas models on the floor.

What's Next

The current successor to this model is the Ford Raptor R 4X4 Ultimate (101177-4). Browse all current RC Cars & Trucks, or find parts and upgrades for your Raptor R at RC Parts & Supplies.

Reference Numbers

Traxxas PN: 101076-4-RED · Retailer PN: TRA101076-4-RED · JackWagon SKU: TRX-101076-4-RED · UPC: 020334012234
