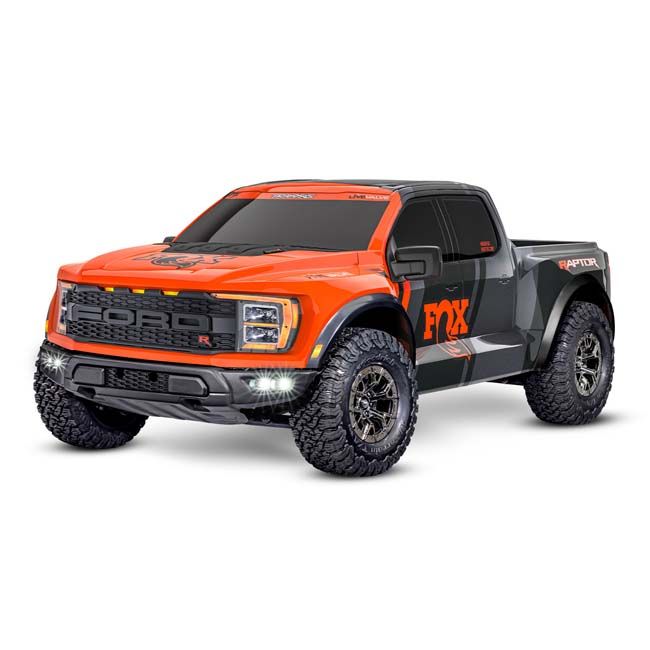

TRX-101177-4-FOX2 Traxxas Raptor R 4x4 Ultimate (Orange)

Ford Raptor R 4X4 Ultimate

MODEL 101177-4: Ford® Raptor R™ 4X4 Ultimate is a 1/10 scale 4X4 short course truck that comes fully assembled and equipped with waterproof electronics. It’s Ready-To-Race® with advanced features like the TQi™ 2.4 GHz 2-channel radio system with a wireless module, Traxxas Stability Management (TSM)®, VXL-4s™ speed control, Velineon 540XL brushless motor, and a clipless painted Pro Scale® body.

What’s In The Box:

• Raptor R with Velineon VXL-4s ESC and 2400 Kv motor
• Quick Start Guide
• TQi 2.4 GHz radio system w/ wireless module
• High-quality maintenance tools

What You’ll Need:

• Batteries: A single 2s, 3s, or 4s LiPo battery with iD®.
• Charger: Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

Features

Officially Licensed Ford® F-150® Raptor R™ Clipless Pro Scale® Body

• Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
• LED lighting in front and rear bumpers
• Body reinforcements to prevent pull-through damage

Clipless Body Mounting

• Holds tight for intense action
• Quick and easy removal
• Smooth appearance with no body posts or clips

Color-Matched Aluminum Suspension Parts

• 6061-T6 aluminum C-hubs
• 6061-T6 aluminum steering blocks
• 6061-T6 aluminum rear hub carriers

VXL-4s™ Waterproof Electronic Speed Control

• 2s–4s LiPo compatible
• Real-time telemetry via Traxxas Link™
• Selectable 7.4-volt high-voltage BEC
• Large heat sink accepts accessory cooling fan (3340)
• Three Programmable Drive Profiles:
  • Sport Mode: Forward / Brake / Reverse
  • Race Mode: Forward / Brake
  • Training Mode™: 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Integrated protection circuits
• LED status lights

Velineon® 540XL Brushless Motor

• Long-format brushless motor
• 4-pole 2400 Kv
• 5 mm output shaft
• Low-maintenance design

TQi™ 2.4 GHz Radio System with Wireless Module

• Factory-installed telemetry sensors
• TQi 2-channel high-power transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

Traxxas Stability Management (TSM)®

• Improves straight-line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls the throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

Suspension

• Heavy-duty suspension arms
• Adjustable 4 mm steel toe and camber links
• Aluminum oil-filled GTR shocks with:
  • 70% more oil capacity than standard Ultra Shocks™
  • Threaded bodies with adjustable spring collars
  • TiN-coated shock shafts to reduce friction

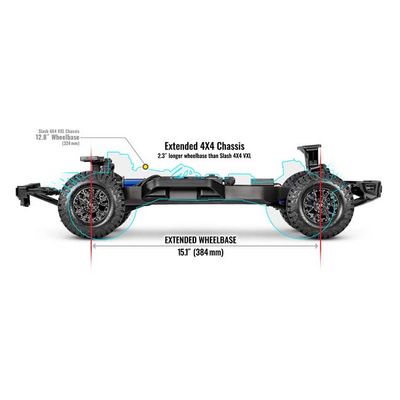

Chassis

• Extended modular composite tub design
• Heavy-duty front & rear shock towers
• Secure battery hold-down latch
• Side nerf bars for impact resistance

Steering

• 2275 waterproof metal-gear servo
• 347 oz-in torque @ 6.0 volts
• Aluminum center case w/ full bearings
• Dual bellcrank design with integrated servo saver

Drivetrain

• Full-time shaft-driven 4-wheel drive
• Center differential with 20-million-weight oil
• Oil-filled, steel gear front and rear differentials
• Steel 32-pitch spur gear
• Anodized-aluminum center driveshaft
• Maxx-duty driveshafts with:
  • Oversize diameter
  • 6 mm axles

Wheels and Tires

• Licensed Ford® replica option wheels
• 2″ outer diameter, 3″ inner diameter
• Licensed BFGoodrich® All-Terrain T/A® KO2 tires
• Large 114 mm diameter

Additional Features:

• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

This premium RC truck combines durability, performance, and authentic design for an unmatched experience!
