TRX-102076-4-RNR Traxxas Maxx Slash 6s Short Course Truck

Maxx Slash 6s

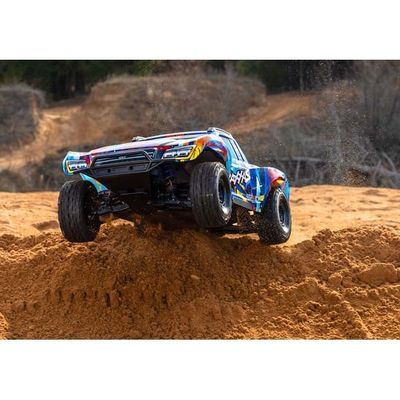

Traxxas Maxx Slash 6s Short Course Truck - Rock n Roll

Prepare for Short Course Supremacy with a large-scale 4x4 short course truck inspired by the Slash, but Maximized in size and performance!

Key Features

Maxx Slash: 6s Brushless Short Course Truck

• Ready-To-Race® with TQi™ 2.4 GHz radio system
• Traxxas Stability Management®
• VXL-6s ESC

VXL-6s™ Waterproof Electronic Speed Control

• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link™
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire
• Integrated protection circuits
• Velineon® 2000 kV Brushless Motor
  • 4-pole 2000 kV
  • 5 mm output shaft
  • Finned can for better heat dissipation
• Fixed-Mesh Motor Cradle
  • Supports entire motor length
  • Reduces flex for longer gear life
• 70+ mph with Optional Gearing and Two 3s LiPo Batteries (sold separately)

Traxxas Stability Management®

• Improves straight-line acceleration and braking on low-traction surfaces
• Never dulls throttle or slows the truck
• Adjustable from off to 100% assistance via the transmitter

TQi™ 2.4 GHz High Output Radio System

• TQi 2-channel transmitter
• Traxxas Link enabled
• 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, no "model selection" required
• Programmable Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points

Clipless Body

• Quick and secure installation and removal

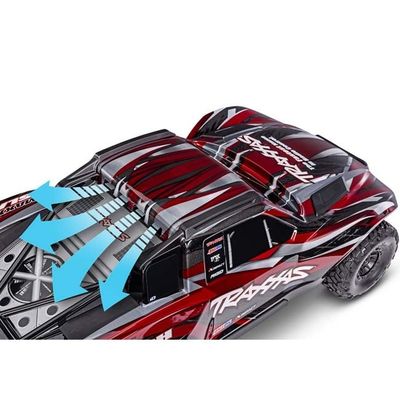

• Managed airflow for improved high-speed stability
• Rigid internal frame
• Additional nerf bar side support
• Eliminates body posts and clips
• Molded body reinforcements for tear-through protection

Drivetrain

• Full-time shaft-driven 4-wheel drive
• Torque-Biasing Center Drive
  • Absorbs shocks and distributes power
  • Aluminum housing
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears
• Steel pinion and spur gear
• Heavy-duty Cush Drive™
• Steel-Core hybrid telescoping driveshafts
• Splined aluminum center driveshaft

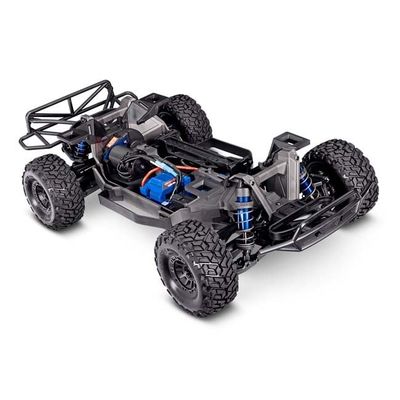

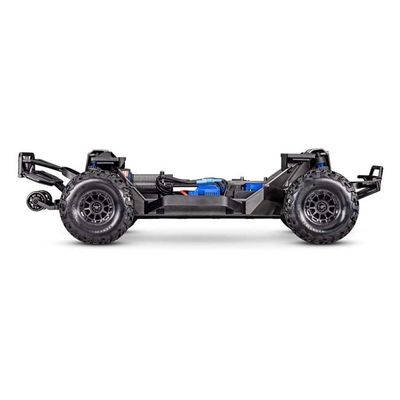

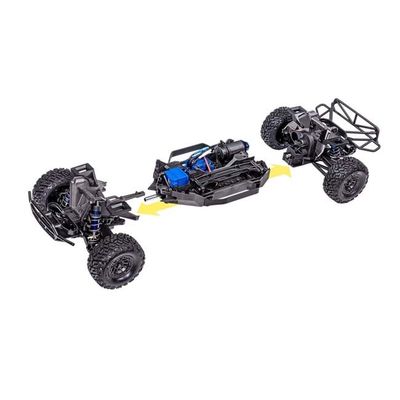

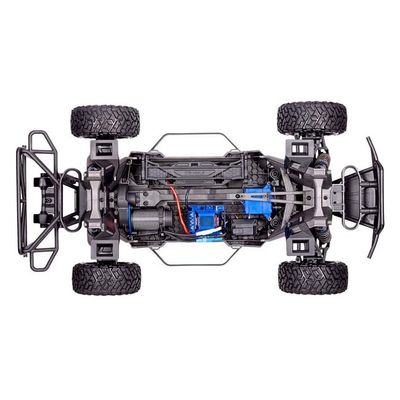

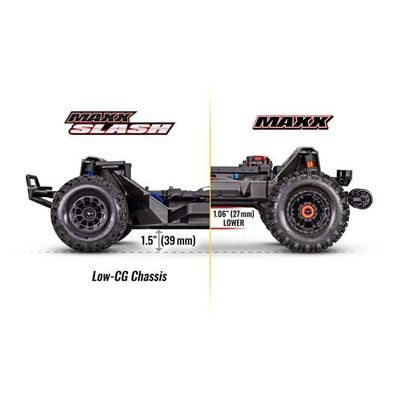

Modular Low-CG Composite Chassis

• Extended modular chassis design interlocks with front and rear bulkheads
• Absorbs and distributes impact energy
• Molded-in hex reinforcements on flat surfaces
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt and grit

Easy Battery Access

• Large battery compartment with secure snap-lock battery door
• Accepts single 6700 mAh 4-cell LiPo battery or dual 5000 mAh 3s LiPo batteries
• Batteries are protected deep in the chassis
• More secure than conventional retention systems

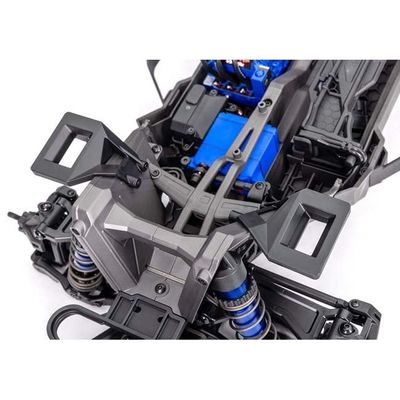

Heavy-Duty Steering Bellcranks and Servo

• Large-scale high-output steering servo
  • 285 oz-in of torque
  • 0.18 sec transit speed
• Triangulated mounting system to fully support case
• Heavy-duty double-shear bellcranks

Suspension

• Heavy-duty double-shear suspension arms
  • Tough composite formula resists impact damage, even in cold weather
  • Engineered to optimize suspension travel and steering angles
  • All critical suspension points have double shear strength
• Steel pivot balls
• C-hub and steering block geometry maximizes steering angle
• Fixed, high-strength camber and toe links
• Steel upper and lower tie bars
• GT-Maxx® Shocks
  • Machined aluminum threaded body
  • Extra-large bore and capacity
  • Large-diameter damper shaft
  • Lower seal cartridge with dual X-rings
  • Adjustable upper spring retainer
  • Plastic shock caps with pivot balls
  • Lower spring perches bolted on

Bumpers

• Heavy-duty energy-absorbing front and rear bumpers
• Lower front and rear skids for impact and abrasion resistance
• Integrated nerf bars for side impact resistance
• Adjustable wheelie bar with integrated carry handle

Wheels & Tires

• Tough dual-profile wheels with keyed 17 mm hex receptor
• Large 5.3″ Maxx SC belted tires
  • Limits tire expansion for game-changing performance
• 1-piece foam inserts
• Pre-glued and ready for action

Specifications

• Model Name: Maxx Slash 6s Short Course Truck
• Model Type: Short Course Trucks
• Model Speed: 70+ mph with Dual 3s LiPo batteries and optional pinion gear (sold separately)
• Model Skill Level: 4
• Scale: 1/8
• Weight: 10.34 pounds (4.69 kg)
• Length: 26.5 inches (674 mm)
• Width: 14.3 inches (363 mm)
• Front Track: 14.3 inches (363 mm)
• Rear Track: 14.3 inches (363 mm)
• Height: 9.64 inches (245 mm)

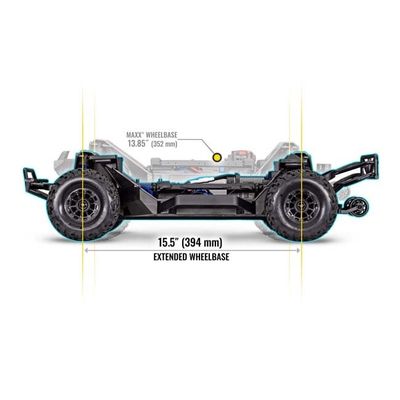

• Wheelbase: 15.5 inches (394 mm)
• Center Ground Clearance: 1.54 inches (39 mm)
• Drivetrain: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Ratio (Internal): 11.38:1
• Gear Pitch: 1.0 metric pitch
• Servo(s): 2090 digital high-torque waterproof (285 oz-in)
• Radio System: TQi™ 2.4 GHz transmitter with TSM® receiver
• Battery Compartment Specs: 181 mm X 56 mm X 45 mm

Motor Specs

• Motor Name: 4-pole 2000 kV
• Motor Type: 2000 kV sensorless brushless
• Motor Weight: 14.32 oz (406 g)
• Motor Length: 2.97 inches (76 mm)
• Motor Diameter: 1.65 inches (42 mm)
• Motor Shaft Size: 5 mm
• Motor Connector Type: Traxxas 6.5 mm bullet connectors

ESC Specs

• ESC Name: VXL-6s
• ESC Type: Brushless
• ESC Case Size: 2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm)
• ESC Weight: 7.30 oz (207 g)
• Motor Connectors: 6.5 mm bullet connectors
• Battery Connectors: Traxxas High-Current Connectors

Additional Information

Battery and Charger Sold Separately
