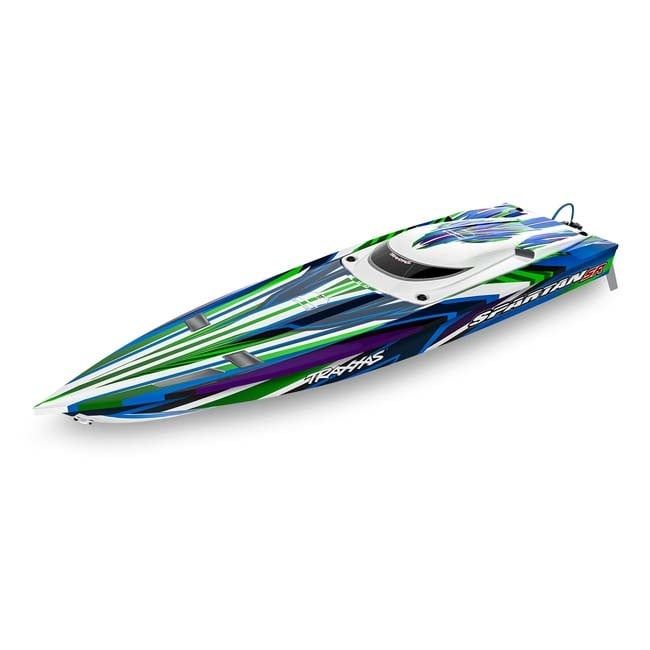

TRX-103076-4-GRN Traxxas Spartan SR Self Righting boat

Spartan SR

Extreme Full-Throttle Fun with Self-Righting - the Spartan® SR is built for speed and performance. Pull the trigger and Spartan SR immediately jumps to life!

Self-Righting Security

Self righting is more than a convenience feature, it’s an all-access pass to exploit Spartan’s full 50+ mph fury. Boaters of all skill levels will enjoy the confidence-inspiring security of self righting. There’s no need to back off the throttle or tone down the action. Just pin the throttle and Spartan SR takes care of the rest.

MODEL 103076-4 Spartan SR: brushless race boat with self righting,
TQi™ 2.4 GHz radio system, Traxxas Stability Management^®, Velineon^® 540XL Brushless Motor, VXL-6s Marine ESC, and factory-applied graphics.

Features
36″ Reinforced Deep-V Hull
Made from lightweight vacuum-formed ABS
Self-righting flood chamber
Pre-applied graphics
Quick-release electronics tray
Rigid Injection-Molded Clipless Hatch
Four quick-release hatch nuts with tool
Foam seal keeps water out
Includes optional tool-free wingnuts

Up to 50 MPH with Dual 3s LiPo Batteries

VXL-6s™ Marine Electronic Speed Control
Water-cooled case
Three drive profiles
Sport Mode - forward / brake / reverse
Race Mode - forward / brake
Training Mode™ - 50% forward / brake / 50% reverse (patented)
Built-in two-stage low-voltage detection for LiPo batteries
NiMH battery packs: 14 cells (16.8 volts)
LiPo battery packs: 4-6 cells (14.8 to 22.2 volts)

Velineon® 540XL Brushless Motor
Ultra high-temperature sintered Neodymium magnets
Efficient, high-speed ball bearings
1800 kV
5 mm output shaft
Water-cooled jacket

Traxxas Stability Management® (TSM)
Improves straight line acceleration
Never dulls throttle or slows the vehicle
Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4 GHz Radio System
2-channel transmitter
5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
Automatically stores and loads settings for up to 30 Traxxas Link enabled models
Programmable multi-function knob
Patented waterproof receiver box

Extra-Long 218 mm Battery Tray
Centralizes battery weight
Allows fore and aft battery positioning
Accommodates multiple battery configurations
Secure hook and loop straps

Driveline
Heavy duty 4.7 mm diameter flex shaft
Quick-release motor collet
Blue-anodized aluminum drive strut
Low-maintenance bushings
High performance prop

Steering
Waterproof digital 2056 servo
Blue-anodized aluminum rudder with water pickup

Precision-Cut Stainless Steel Trim Tabs and Turn Fins

Stainless Steel Hex Hardware Used Throughout

*Battery and Charger Sold Separately

Model Name: Spartan SR Race Boat
Model Type: Boats
Model Speed: 50+ mph with two 3-cell LiPo batteries
Model Skill Level: 2
Scale: 1/10
Weight: 5.29 pounds (2.39 kg)
Length: 40.8 inches (1037 mm)
Width: 9.5 inches (243 mm)
Height: 7.2 inches (183 mm)
Drive System: Direct drive, 4.7 mm flex cable

Outdrive: Adjustable aluminum
Hull Length: 36.5 inches (927 mm)
Dead Rise Angle: 26 degrees
Overall Length: 40.8 inches (1037 mm)
Overall Height: 7.2 inches (183 mm)
Beam (Width): 9.5 inches (243 mm)
Hull Type: Composite Deep-V
Servo(s): 2056 high-torque waterproof
Radio System: TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

Motor Name: Velineon® 540XL Marine
Motor Type: Sensorless brushless
Motor Weight: 13.62 ounces (386 g)
Motor Length: 4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length
Motor Diameter: 1.42 inches (36 mm)
Motor Shaft Size: 5 mm
Motor Connector Type: Traxxas 5.5 mm bullet connectors

ESC Name: Velineon® VXL-6s Marine
ESC Type: Brushless
ESC Case Size: 2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight: 7.30 ounces (207 g)
Motor Connectors: Traxxas 5.5 mm bullet connectors
Battery Connectors: Traxxas High Current Connector
