TRX-108076-1-BLUE Mini XRT VXL (Blue)

Mini XRT VXL-3s

---

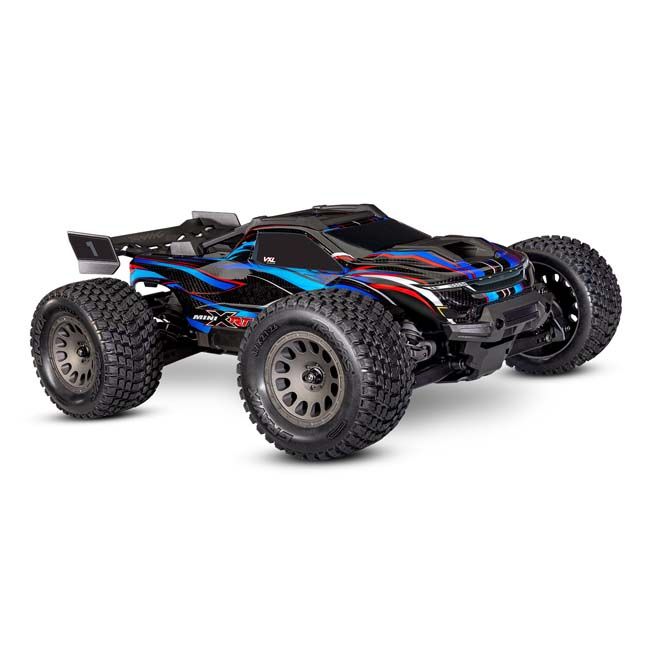

Model 108076-1: Mini XRT VXL-3s

• Mini-scale monster truck, fully assembled, Ready-To-Race®
• Equipped with TQi™ 2.4 GHz radio system, Velineon® VXL-3s™ brushless power system, and clipless painted body
• Includes:
  • 2-cell LiPo battery
  • 2-amp USB-C charger

---

What’s In The Box

• Mini XRT Ready-To-Race monster truck
• Velineon VXL-3s brushless power system
• 3500 mAh 2-cell LiPo battery
• 2-amp USB-C charger
• Quick Start Guide
• TQi 2.4 GHz radio system
• High-quality maintenance tools

---

What You’ll Need

• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
• USB Power Source: Power adapter 2912 and power cable 2916 recommended for peak charging performance

---

Features

Speed

• 40+ mph with the included 2-cell LiPo Battery
• 55+ mph with optional 3-Cell LiPo Battery (sold separately)

---

Clipless Body Mounting System

• Quick and easy installation and removal
• Nerf bar channels for side body support
• Reinforced for extra protection against tearing
• Functional rear wing

---

VXL-3s™ Waterproof Electronic Speed Control

• Three programmable drive profiles:
  • Sport Mode: forward / brake / reverse
  • Race Mode: forward / brake
  • Training Mode™: 50% forward / brake / 50% reverse
• Heat sink accepts accessory cooling fan (3340)
• Traxxas EZ-Set® one-button setup
• Built-in two-stage low-voltage detection

---

Velineon® 3500 Kv Brushless Motor

• Ultra high-temperature sintered neodymium magnets
• Low-maintenance design
• Precision-balanced rotor
• Efficient high-speed ball bearings
• 3500 Kv
• Brilliant blue-anodized finish

---

Battery and Charger Included

• High-capacity 2-cell LiPo battery
  • 7.4 volts
  • 3500 mAh for extended run time
• 2-amp USB-C charger
• iD® technology for faster, safer charging

---

TQi™ 2.4 GHz High Output 2-Channel Radio System

• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

---

Traxxas Stability Management® (TSM)

• Improves straight-line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls the throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

---

1/10 Scale 4X4 Driveline

• Full-time shaft-driven 4-wheel drive
• 1/10 scale extreme-duty telescoping driveshafts
• Direct-drive (no transmission)
• Sealed center differential
• Large 32-pitch gears
• Sealed planetary steel-gear differentials (F&R)
• Fixed gear mesh system

---

Modular Composite Chassis

• Modular chassis with interlocking front and rear bulkheads
• Driveline is sealed in the chassis to keep out dirt
• Absorbs and distributes impact energy
• Easy to service and access components

---

Easy Battery Access

• Battery is protected deep in the chassis
• Battery hold-down pivots for easy access
• More secure than conventional retention systems

---

Steering

• 1/10 scale 2075X waterproof high-torque, metal-gear servo
• Heavy-duty double-shear bellcranks
• Cam-operated servo saver

---

Suspension

• Heavy-duty, double-shear suspension arms
• Dual wishbone design
• Extra-tough outer suspension components

---

Oil-Filled Ultra Shocks™

• Full-size 1/10 scale shocks
• Large oil capacity
• Easy to tune

---

Bumpers and Skid Plates

• Tough energy-absorbing front bumper
• High-angle front skid plate
• Rugged interlocking skid plates
• Smooth undertray eliminates snags
• Integrated nerf bars for side impact resistance

---

Wheels and Tires

• New graphite gray mini XRT wheels
• Gravix® tires with foam inserts
• Excellent traction on or off the road
• Directional tread pattern for quieter running
• Thick center carcass resists ballooning

---

Hex Hardware with Rust-Resistant Black Oxide Coating

---

Sealed Ball Bearings
