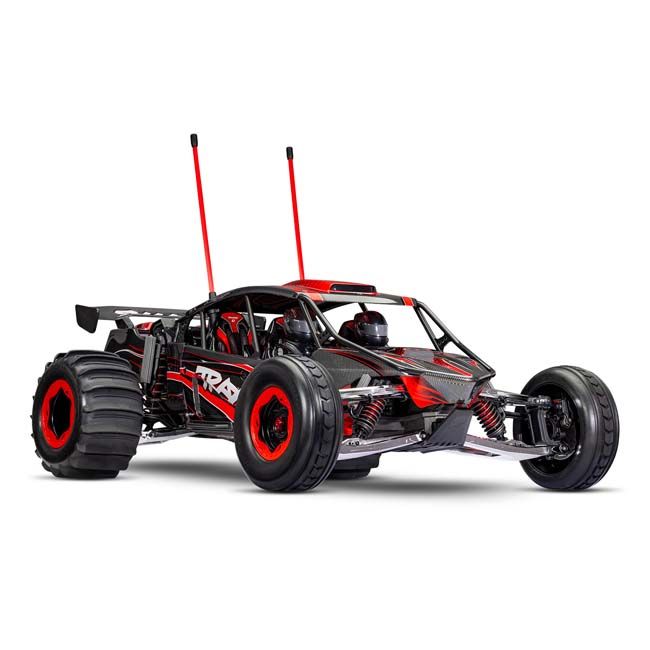

TRX-109076-4-RED Traxxas Funco Pro Sand Car (Red)

Funco Pro Scale Sand Car

Model 109076-4: Pro Scale® X-Series Sand Car

• Fully assembled and Ready-To-Race®
• Equipped with TQi™ 2.4 GHz radio system
• Powered by VXL-8s brushless power system
• Features a Replica Funco clipless body
• Oversized Item: only available for In-Store Pickup. No Shipping available at this time.

---

What’s In The Box:

• Pro Scale Sand Car Ready-To-Race model with Traxxas Big Block™ brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi™ 2.4 GHz radio system
• High-visibility whip lights
• Wheelie bar
• Speed gearing
• High-quality maintenance tools

---

What You’ll Need:

LiPo Batteries

• Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (Part 2997).

LiPo Balance Charger with iD®

• The Traxxas EZ-Peak Live Dual 4S-capable charger (model 2973) is recommended for easy and fast charging performance.

AA Alkaline Batteries

• Four AA alkaline batteries for the transmitter.

---

Key Features

Replica Funco Sand Car Body:

• Clipless body for easy access
• Full-length tube frame support
• Detailed interior with driver figures
• Replica engine with licensed accessories
• 10″ color-matched whip lights
• Spring-loaded Flex Tech mounts for rollover protection
• High-performance rear wing
• Wheelie bar

---

VXL-8s Waterproof Electronic Speed Control:

• Aggressive tuning for more power at any rpm
• Integrated cooling fan
• Real-time telemetry via Traxxas Link
• Machined heat sink
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights

---

Velineon 1200XL Brushless Motor:

• “Big Block” brushless motor
• 4-pole 1275 Kv
• 5 mm output shaft
• Oversized aluminum heatsink for improved cooling
• Dual cooling fans

---

Performance:

• 55+ mph with Two 4s LiPo Batteries and Included Speed Gearing

---

Traxxas Stability Management:

• Improves straight-line acceleration and braking on low-traction surfaces
• Never dulls the throttle or slows the truck
• Adjustable from 'off' to 100% assistance via the transmitter

---

TQi 2.4 GHz 2-Channel High Output Radio System:

• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Patented waterproof receiver box with easy-access plug

---

Ultra-Heavy-Duty 8s Drivetrain:

• Steel CV driveshafts & axles
• New, larger X-Series differential output yokes
• Fully machined aluminum stub axles

---

Direct-Drive Transmission:

• 1.5 mod wide-face steel gears
• 1.0 mod steel pinion and spur gears
• Fixed gear mesh system

---

Rear Differential:

• Huge 1.5 module straight-cut ring gear
• Sealed 4-gear design
• Splined outdrives attached with the external thru-bolt method
• Reinforced bulkhead and covers for increased bearing support

---

Rock-Solid Motor Mounting System:

• Precise preset gear mesh adjustments
• 4 keyed pins lock the motor in place
• Motor retention is separate from the gear mesh

---

GT Maxx Shocks:

• Machined aluminum threaded body
• Extra-large bore and capacity
• Height-adjustable spring retainer
• Heavy-duty composite shock caps with pivot balls
• Lower spring perches bolted on

---

Suspension:

• Polished aluminum-finish suspension arms
• Made from cold-weather HD composite
• Performance-optimized geometry
• Double-shear connections
• High-strength steel suspension pins with retainers
• 4 mm machined pivot balls
• Fixed high-strength camber and toe links
• Heavy-duty steering blocks and axle carriers
• Oversized wheel bearings

---

Braking:

• Electronic rear brakes
• Powerful front disc brakes with spring-loaded calipers
• Operated by 2075 digital servo
• Sheathed brake cables
• Stainless steel slotted and drilled brake rotors

---

Low-CG Chassis Design:

• Modular chassis with interlocking bulkheads
• Low center of gravity for improved handling
• Flat bottom design
• Interlocking skid plates
• High-strength buttressing on shock towers
• Dual snap-lock battery compartments:
  • Protects batteries from side impacts
  • Allows secondary battery-clip security
• Interlocking components for tight tolerances
• Wire management for a clean appearance

---

Wheels and Tires:

• 7.5" Rear paddle tires with aggressive paddle design
• Belted carcass resists ballooning
• 6.8" front arrow-pattern tires for excellent traction on sand, dirt, and pavement
• Replica Funco beadlock wheel design
• Color-matched beadlock rings and axle nuts
• High-strength glue and bead design
• Huge 24 mm splined wheel hubs

---

Steering:

• Powerful 450 oz-in steering servo (2085XL)
• Heavy-duty cam-style servo saver
• Dirt evacuation channels
• Fully waterproof

---

Additional Details:

• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating
