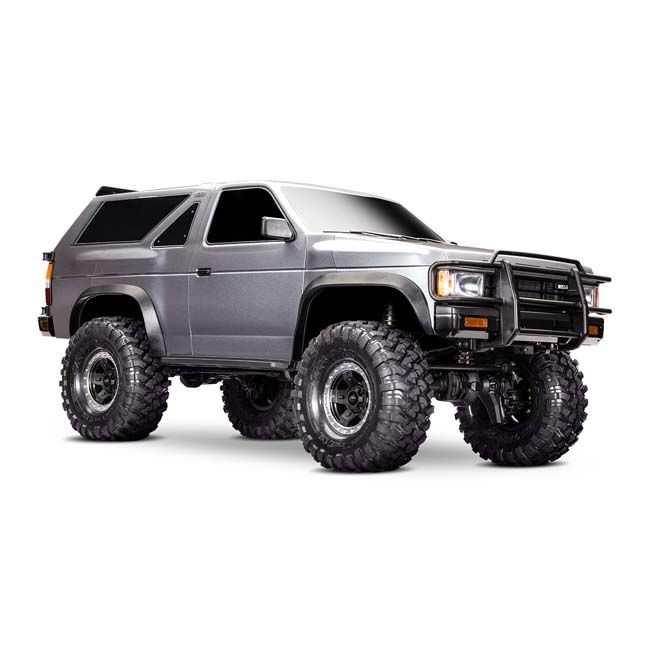

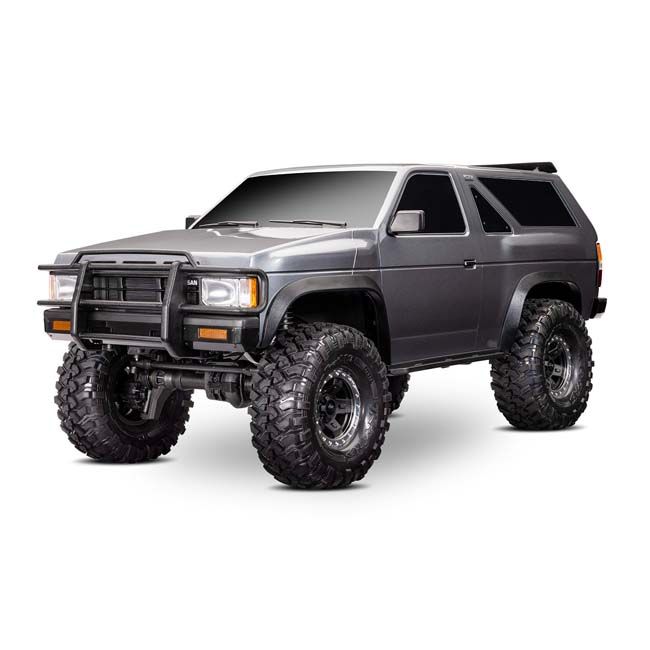

TRX-110056-4-SLVR Traxxas TRX-4 Nissan Pathfinder (Silver)

TRX-4 Nissan Pathfinder

MODEL 110056-4: TRX-4 Scale and Trail™ crawler with Nissan® Pathfinder® Body. This is a 1/10 scale 4X4 trail truck, fully assembled with waterproof electronics and Ready-To-Drive® functionality. It includes the TQi™ 2.4 GHz 4-channel radio system, XL-5™ HV speed control, high/low transmission, remote locking differentials, and a clipless painted body.

What’s In The Box:

• TRX-4 Ready-To-Race model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High-quality maintenance tools

What You’ll Need:

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
• Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

Features:

Officially Licensed Nissan® Pathfinder® Clipless Body:

• Clipless body holds tight on the trail but releases in seconds.
• Smooth body lines, uninterrupted by body clips.
• Scale details: grille, black bumpers, push bar, rear spoiler, side mirrors, door handles, and wipers.
• Full composite wheel wells and floor pans.

Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control:

• Five drive profiles:
  • Sport Mode — forward / brake / reverse.
  • Race Mode — forward / brake / no reverse.
  • Training Mode™ — 50% forward / 100% brake / 50% reverse (patented).
  • Trail Mode — forward / brake / reverse with trail-tuned drag brake in neutral.
  • Crawl Mode — forward / instant reverse, no neutral, with 100% hill holding brake.
• Traxxas EZ-Set® one-button setup.
• Large, efficient heat sink.
• Wide voltage latitude: 6–7 cell NiMH, 2–3s LiPo.

Titan® 550 Motor:

• Powerful Titan 21T reverse rotation motor with internal cooling fan.
• Precision, preset gear mesh adjustments.
• Motor retention is separate from gear mesh.

Portal Axles:

• Increased ground clearance.
• Eliminate torque twist.
• Steel gears.
• Improve axle geometry and reduce strain on driveshafts.

TQi™ 2.4 GHz Radio System:

• 4-channel transmitter.
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports.
• Compatible with optional Traxxas Link Wireless Module (6511) for full Traxxas Link app functionality (sold separately).
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models.
• Exclusive Cruise Control feature for extended trail driving.
• Patented waterproof receiver box with easy-access plug.

Rigid Steel Frame:

• 1.5 mm thick steel frame rails increase torsional rigidity.
• Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm).
• Adjustable rear shock tower positions for SWB and LWB configurations.
• Rugged rock rails adjust for width.
• Wire routing clips integrated into frame rails.

Innovative Battery Compartment:

• Hinged battery strap allows quick and easy battery access.
• No pins to lose.
• Accommodates different height batteries.
• Accepts full-size extended battery packs.
• Integrated compartment accepts smaller 1/16 scale batteries.
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap).

Driveline:

• Full-time shaft-driven 4-wheel drive.
• Tough 6 mm stub axles.
• Steel front CV driveshafts.
• Hardened steel rear axle shafts.
• Remote locking steel gear differentials with cable-actuation.
• Steel transfer case gears.

Transmission:

• Two-speed high/low range with remote shifting.
• Dual horizontal shafts.
• Twin friction plate slipper clutch.
• Easily removed for servicing.

Steering:

• Chassis-mounted 2075X metal gear digital servo.
• Superior 45° steering angle.
• Direct steering (no servo saver).
• Steering geometry corrected for bump steer.

Suspension:

• Front — 3 link with panhard bar.
• Rear — Triangulated 4-link.
• Heavy-duty rod ends with steel hollow balls.
• 5 mm diameter steel link rods with 4 mm threaded ends.

Aluminum GTS Shocks:

• Oil-filled coilover GTS shocks.
• Silver-anodized aluminum bodies.
• Threaded bodies with collars easily adjust ride height.
• Silky smooth damping for the most challenging trails.
• O-ring cap seal and dual X-ring shaft seals.

Wheels and Tires:

• 1.9" black wheels with chrome beadlock trim.
• Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts.
• Trail-tuned S1 rubber compound.
• 12 mm steel hex.

Additional Details:

• Sealed Ball Bearings.
• Hex hardware with rust-resistant black oxide coating.
