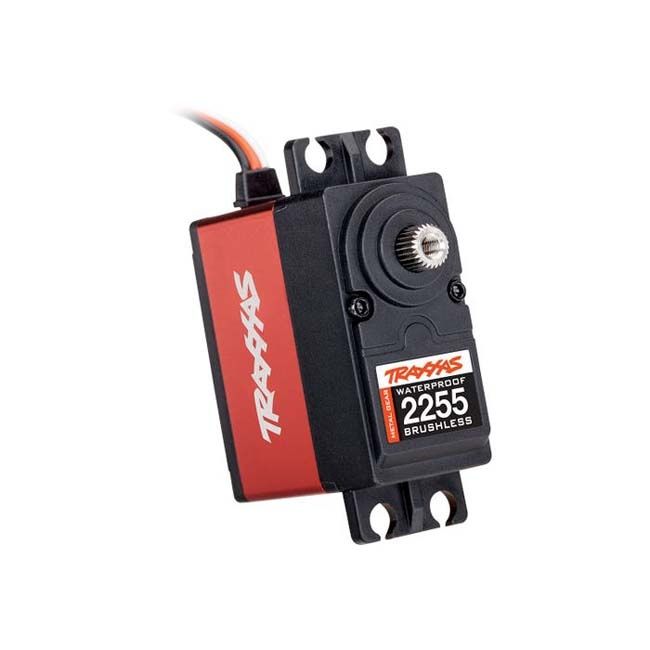

TRX-2255 Traxxas High-Torque 400 Brushless Digital Metal-Gear Waterproof Servo

About This Part

The 2255 is Traxxas's top-performing standard-size servo. A brushless motor delivers 400 oz-in of torque at 6 volts — more than three times the output of the standard 2075 — with a faster transit time and superior command precision over coreless or brushed designs. It features full metal gears, dual ball bearings, and an aluminum mid-case for heat dissipation. A genuine performance upgrade for high-demand applications including Slash, Stampede, and Crawler builds.

What's Included

• (1×) 2255 High-Torque 400 brushless digital metal-gear waterproof servo

Key Features

• 400 oz-in torque at 6V (505 oz-in at 7.4V) — more than 3× the output of the standard 2075
• Brushless motor for maximum power, faster response, and superior precision
• Full all-metal gear drivetrain with bearing support
• Dual ball bearings
• Aluminum mid-case (plastic ends) for heat dissipation
• Fully waterproof — not just water-resistant
• 25T output spline / 6.0–7.4V operating voltage
• Works great with TSM®-equipped vehicles
• Can replace the E-Revo's dual servos with a single 2255 for less weight and more torque
• Standard servo footprint — fits most 1/10 scale Traxxas models
• Shared gear set with 2250 (replacement gears: 2252)
• TRX-4 installation requires 2262 BEC kit and 8247X metal servo horn

Reference Numbers

2255 · TRA2255 · TRX-2255
