TRX-67134-4 Traxxas Bigfoot 4x4 BL-2S

BIGFOOT 4X4 BL-2s

Model Overview

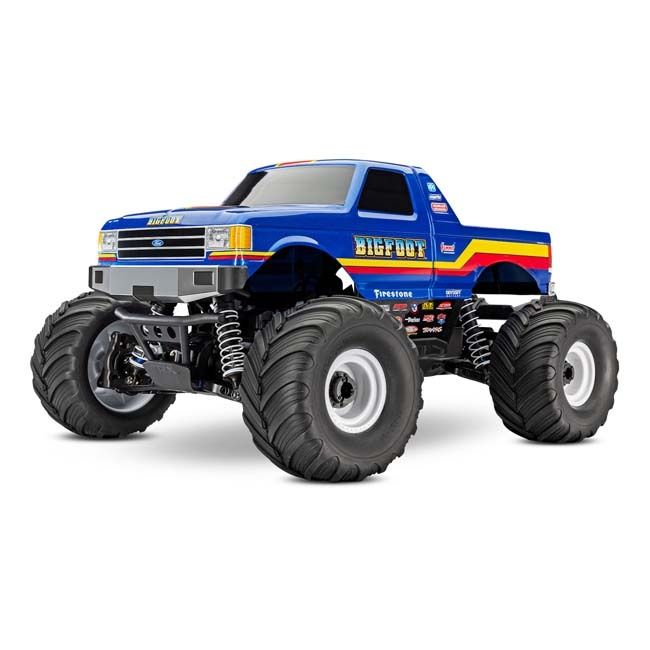

MODEL 67134-4: BIGFOOT® 4X4 is a 1/10 scale brushless monster truck that comes fully assembled with waterproof electronics. It is Ready-To-Race®, featuring:

• TQ™ 2.4 GHz 2-channel radio system
• BL-2s™ brushless power system
• Clipless BIGFOOT No. 8 replica body

Note: Requires battery and charger.

---

What’s In The Box:

• BIGFOOT 4X4 with BL-2s ESC and 3300 Kv motor
• Quick Start Guide
• TQ 2.4 GHz radio system
• High-quality maintenance tools

---

What You’ll Need:

• Batteries: BIGFOOT 4X4 requires a single 7.2 or 8.4-volt NiMH or 7.4-volt LiPo battery
• Charger: Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter

---

Key Features:

Licensed BIGFOOT No. 8 Clipless Body

• Brilliant blue metallic officially licensed Ford® F-150® body
• Chrome front and rear bumpers
• Holds tight for intense action
• Quick and easy removal

---

BL-2s™ Waterproof Electronic Speed Control

• Heat sink accepts accessory cooling fan (3340) (sold separately)
• Three Programmable Drive Profiles:
  • Sport Mode: Forward / Brake / Reverse
  • Race Mode: Forward / Brake
  • Training Mode™: 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Built-in two-stage low-voltage detection for LiPo batteries
• Compatible with:
  • NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
  • LiPo battery packs: 2 cells (7.4 volts)

---

3300 Kv Brushless Motor

• Integrated cooling fan
• Low-maintenance design
• Efficient ball bearings
• 3300 Kv

---

TQ™ 2.4 GHz Transmitter

• Full-size 2-channel transmitter
• All-day comfort with precise long-range control

---

Extreme Heavy-Duty Upgrade Kit Installed

• Strengthened C-hubs, axle carriers, and steering blocks
• Maxx-duty driveshafts
• Oversize diameter
• 6 mm axles
• Steel wheel hexes

---

Additional Features:

Chassis

• Modular composite tub design
• Secure battery hold-down latch
• High-angle bumpers
• 4-position adjustable wheelie bar

---

Suspension

• HD-composite suspension arms
• Oil-filled Ultra Shocks
• White powder-coated springs

---

Steering

• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver

---

Driveline

• Full-time shaft-driven four-wheel drive
• Sealed steel gear front and rear differentials
• Large 32-pitch steel spur gear

---

Wheels and Tires

• Dual-profile white monster truck wheels
• Replica military-style axle hubs
• Pre-glued high-profile Terra Groove shaved monster truck tires with foam inserts

---

Additional Details

• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating
