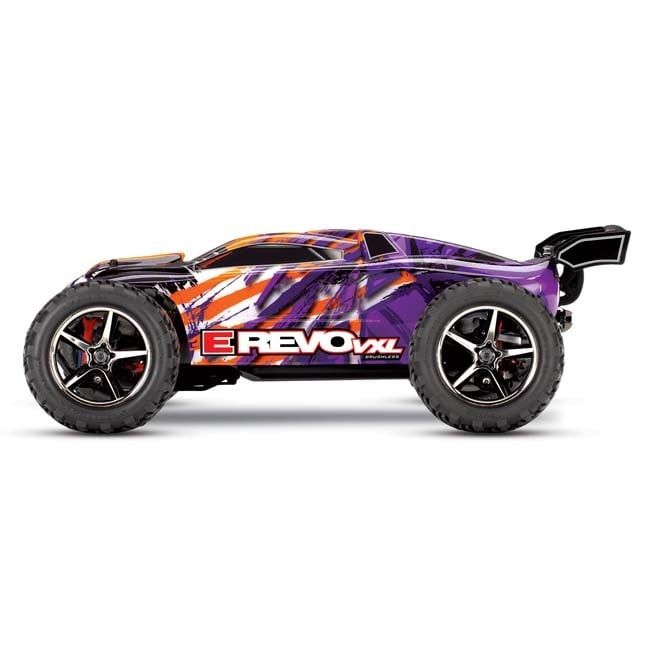

TRX-71076-8-PRPL Traxxas 1/16 Scale E-Revo VXL: 4X4 Brushless Monster Truck w/USB-C

1/16 E-Revo VXL w/Battery

MODEL 71076-8

Fully assembled, Ready-To-Race® with:

• Traxxas Stability Management (TSM)®
• TQi™ 2.4 GHz radio system
• Velineon® 380 motor
• VXL-3m™ electronic speed control
• 7.2 volt NiMH battery
• 2-amp USB-C fast charger
• ProGraphix® painted body

What’s In The Box:

• 1/16 E-Revo VXL with ProGraphix® painted body
• TQi™ 2.4 GHz radio system
• Quick Start Guide
• 7.2 volt NiMH iD® battery
• 2-amp USB-C fast charger with iD®

What You’ll Need:

• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
• USB Power Source

Features Overview

ProGraphix® Painted Body

• 1/16 Scale pre-painted body with applied decals
• High-downforce composite wing

Waterproof VXL-3m™ Electronic Speed Control

• Innovative waterproof design
• Three drive profiles:
  • Sport Mode: forward / brake / reverse
  • Race Mode: forward / brake
  • Training Mode™: 50% forward / brake / 50% reverse (patented)
• Traxxas EZ-Set® one-button setup
• High-capacity heat sink
• Compatible with:
  • NiMH battery packs: 6-12 cells (7.2 to 14.4 volts)
  • LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Velineon® 380 Brushless Motor

• Powerful 8-turn, 4000 kV design
• Optimized for smooth sensorless power
• Ultra high-temperature sintered Neodymium motor magnets
• Gold-plated 3.5 mm bullet connectors

Traxxas Stability Management® (TSM)

• Improves straight-line acceleration and braking on low-traction surfaces
• Maintains steering composure for throttle-on powerslides
• Never dulls the throttle or slows the vehicle
• Adjustable from off to 100% assistance via the transmitter

TQi™ 2.4 GHz High Output Radio System

• TQi 2-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Compatible with optional TQi Traxxas Link Wireless Module (6511) for full Traxxas Link app functionality (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle:
  • Percentage (dual rates)
  • Sensitivity (exponential)
  • End points
• Patented waterproof receiver box

Includes Battery and USB-C Charger

• 2-amp USB-C Fast Charger
• 1200 mAh Traxxas 6-cell 7.2 V NiMH battery with iD®

Fiber-Composite Monocoque Chassis

• Low-CG design for improved handling
• Tough skid plates for driveline protection
• All electronics securely fastened to the chassis

Dual Integrated Battery Compartments

• Quick-release battery doors for fast pack changes
• Intake and exhaust cooling vents to keep battery temperatures down
• Accepts 1/16 scale NiMH and LiPo batteries

Transmission and Driveline

• Full-time shaft-driven 4WD
• Sealed heavy-duty transmission
• Adjustable slipper clutch
• Sealed, silicone-filled differentials with steel gears
• Heavy-duty telescoping U-joint driveshafts

Steering

• Digital waterproof Traxxas 2080 steering servo
• Servo horn with integrated servo saver

Suspension

• Twin-arm pivot ball suspension
• Progressive rocker-arm damping for extreme travel
• Captured rod ends that won't pop off

Springs and Shocks

• Inboard fully adjustable oil-filled GTR™ shocks
• Adjustable pre-load collars
• Red powder-coated springs

Wheels and Tires

• Pre-glued Talon™ tires with high-performance foam inserts
• 53 mm Gemini 5-spoke chrome wheels

Rubber-Sealed Ball Bearings

Precision Hex Hardware

Backed by Unparalleled Traxxas Support and Parts Availability
