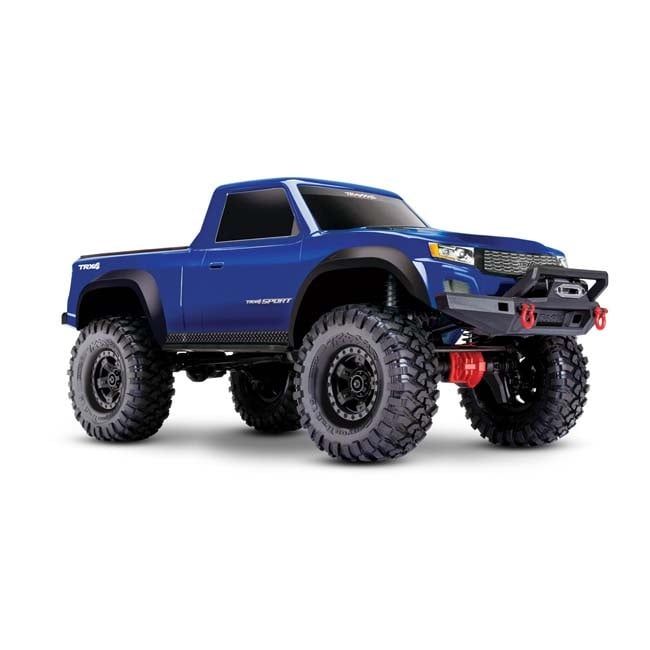

TRX-82224-4-BLUE Traxxas TRX-4 Sport Clipless BLUE

TRX-4 Sport: Purpose Built

The TRX-4® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sport’s unique bumpers, wheels, and body are designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach take your outdoor adventure to a new level.

Model 82024-4

TRX-4 Sport: 1/10 scale 4X4 trail truck, fully assembled, waterproof electronics, Ready-To-Drive®, with TQ™ 2.4 GHz 2-channel radio system, XL-5™ HV speed control, and painted body.

What’s In The Box:

• TRX-4 Ready-To-Drive model
• XL-5 HV waterproof electronic speed control
• Titan™ 21T reverse rotation motor
• TQ 2.4 GHz radio system
• High-quality maintenance tools

What You’ll Need:

• Batteries: TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
• Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
• AA Alkaline Batteries: Four (4) AA alkaline batteries for the transmitter.

Features:

Rugged, Clipless Pickup Truck Body

• Clipless design for a smooth body appearance
• Rugged internal body cage for added rigidity
• Low-profile bumpers for increased clearance
• Red differential covers and D-rings

Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control

• Fully waterproof design
• Five drive profiles:
  • Sport Mode — forward / brake / reverse
  • Race Mode — forward / brake / no reverse
  • Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
  • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude (6–7 cell NiMH and 2–3s LiPo)
• Two-stage low-voltage protection (LVD)

Titan® 550 Motor

• Powerful Titan 21T reverse rotation motor with internal cooling fan
• Precise preset gear mesh adjustments
• Motor retention is separate from the gear mesh

TQ™ 2.4 GHz 2-Channel Radio System

• Ergonomic transmitter with internal antenna
• Traxxas 6519 3-channel micro receiver with fail-safe security
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry

Rigid Steel Frame

• 1.5 mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails

Innovative Battery Compartment

• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

Portal Axles

• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

Drivetrain

• Full-time shaft-driven 4-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Spool-locked front and rear differentials
• Steel gear transfer case

Transmission

• Single-speed with steel gears
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

Steering

• Chassis-mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

Suspension

• Front: 3 link with panhard
• Rear: Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5 mm diameter steel link rods with 4 mm threaded ends

Aluminum GTS Shocks

• Oil-filled coilover GTS shocks exclusive to the TRX-4 chassis
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the most challenging trails
• O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

• Rugged black 5-spoke wheels
• Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
• Trail tuned S1 rubber compound
• 12 mm steel hex

Additional Features

• Sealed Ball Bearings
• Hex Hardware with Rust-Resistant Black Oxide Coating
• Requires Battery and Charger (Sold Separately)

Take your trail adventures to the next level with the TRX-4 Sport’s unmatched performance, rugged design, and innovative features!
