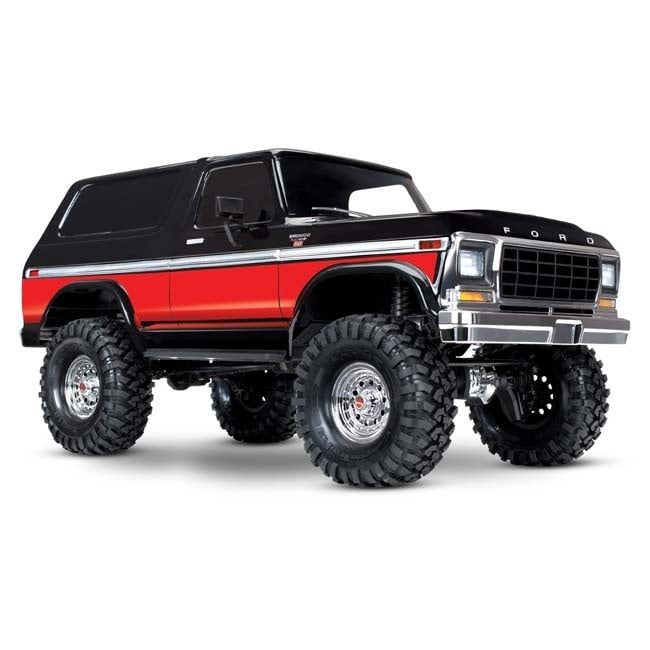

TRX-82246-4-RED Traxxas TRX-4® Scale and Trail® Crawler with Ford Bronco Body: 4WD Electric Truck w. Clipless Body

TRX-4 1979 Ford Bronco

Overview

MODEL 82246-4: TRX-4 Scale and Trail™ crawler featuring the 1979 Ford® Bronco Body. This 1/10 scale 4X4 trail truck comes fully assembled with waterproof electronics, Ready-To-Drive®, and includes:

• TQi™ 2.4 GHz 4-channel radio system
• XL-5™ HV speed control
• High/low transmission
• Remote locking differentials
• Painted body

What’s In The Box:

• TRX-4, Ready-To-Race model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High-quality maintenance tools

What You’ll Need:

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
• Charger: Traxxas EZ-Peak® Live charger (model 2971) is recommended for easy and fast charging performance.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

1979 Ford Bronco Ranger XLT

Originally introduced in 1966 as a 4X4 compact SUV, the Ford® Bronco evolved into a full-size truck in the late 1970s, establishing its reputation as a rugged off-roader. Traxxas pays homage to this classic Ford with a meticulously detailed 1979 Ford Bronco replica clipless body mounted on the highly capable TRX-4® chassis.

Highlights:

• Chrome wheels and bumpers
• Stunning Sunset or red graphics
• Combines iconic design with advanced toughness and technology

Features

Officially Licensed 1979 Ford® Bronco Body

• Scale details: grille, chrome bumpers, side mirrors, chrome side trim, and wipers
• Clear front and side windows
• Authentic decal sheet
• Full Nylon composite wheel wells and floor pans
• Additional scale accessories sold separately

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control

• Fully waterproof design
• Sport Mode: Forward / brake / reverse
• Race Mode: Forward / brake / no reverse
• Training Mode™: 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode: Forward / brake / reverse with trail-tuned drag brake in neutral
• Crawl Mode: Forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude: 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
• Two-stage low-voltage protection (LVD)

Titan® 550 Motor

• Powerful Titan 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention is separate from the gear mesh

Portal Axles

• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

TQi™ 2.4 GHz Radio System

• 4-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Compatible with optional TQi Traxxas Link Wireless Module (6511) for full Traxxas Link app functionality (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• Patented waterproof receiver box with easy-access plug

Rigid Steel Frame

• 1.5 mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails

Innovative Battery Compartment

• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

Drivetrain

• Full-time shaft-driven 4-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case

Transmission

• Two-speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

Steering

• Chassis-mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

Suspension

• Front: 3 link with panhard
• Rear: Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5 mm diameter steel link rods with 4 mm threaded ends

Aluminum GTS Shocks

• Oil-filled coilover GTS shocks exclusive to the TRX-4 chassis
• Silver-anodized aluminum bodies
• Threaded bodies with collars for easy ride height adjustment
• Silky smooth damping for the most challenging trails
• O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

• Replica chrome wheels with hub inserts
• Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
• Trail tuned S1 rubber compound
• 12 mm steel hex

Additional Features

• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

Requires Battery and Charger (Sold Separately)
