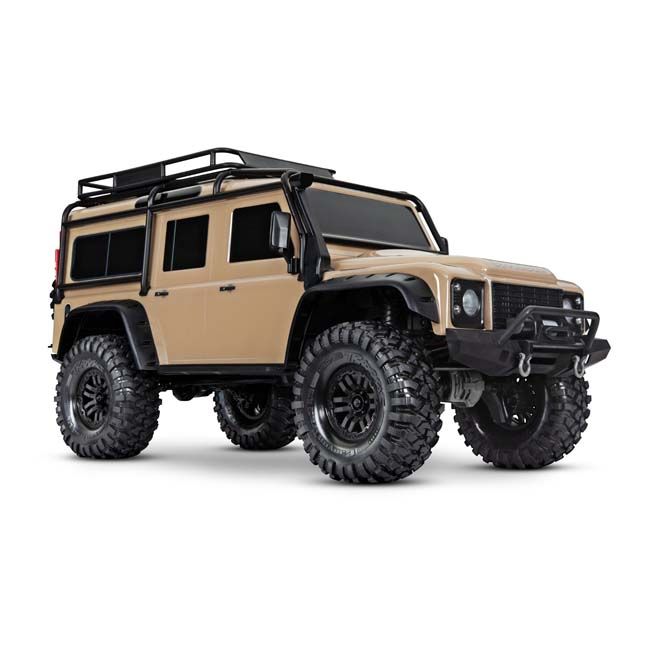

TRX-82256-4-SAND Traxxas TRX-4 Land Rover Defender Sand - Clipless

TRX-4 Land Rover Defender

MODEL 82256-4:
TRX-4 Land Rover® Defender®: 1/10 Scale and Trail® crawler, fully-assembled, waterproof, Ready-To-Drive®, with TQi™ 2.4 GHz radio system, XL-5™ HV Electronic Speed Control, and Clipless painted replica body.

What’s In The Box:

• TRX-4, Ready-To-Race® model Pre-Assembled
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High-quality maintenance tools

What You’ll Need:

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
• Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

Take the Path Less Traveled

TRX-4® Land Rover® Defender® delivers innovation, versatility, and capability to match its incredible scale and looks. Underneath the rugged body, the TRX-4 Defender is built with extreme capability to take your off-road adventures to new heights.

• Portal axles deliver maximum ground clearance that turns “no way” into “no problem.”
• Whether you are enjoying outdoor trails or getting technical on the rocks, the remote-locking front and rear differentials and high/low range transmission provide unmatched driving versatility.

Features:

Clipless Officially Licensed Land Rover® Defender® Body

• Injection molded scale details, including grille, snorkel, and side mirrors
• Rugged, functional roll cage
• Tough fender flares
• Front bumper with tow hooks and a replica winch
• Rear bumper with scale accessories and functional spare tire
• Full nylon composite wheel wells and floor pans
• Quick and easy removal

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control

• Fully waterproof design
• Five drive profiles:
  • Sport Mode: forward / brake / reverse
  • Race Mode: forward / brake / no reverse
  • Training Mode™: 50% forward / 100% brake / 50% reverse (patented)
  • Trail Mode: forward / brake / reverse / with trail-tuned drag brake in neutral
  • Crawl Mode: forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude: 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
• Two-stage low voltage protection (LVD)

Titan® 550 Motor

• Powerful Titan 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh

Portal Axles

• Increase ground clearance (3.14″)
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

TQi™ 2.4 GHz Radio System

• 4-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• Patented waterproof receiver box with easy-access plug

Rigid Steel Frame

• 1.5 mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails

Innovative Battery Compartment

• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

Drivetrain

• Full-time shaft-driven 4-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case

Transmission

• Two-speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

Steering

• Chassis-mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

Suspension

• Front — 3 link with panhard
• Rear — Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5 mm diameter steel link rods with 4 mm threaded ends

Aluminum GTS Shocks

• Oil-filled coilover GTS shocks
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals

Wheels and Tires

• 1.9″ Canyon Trail tires with trail-tuned foam inserts
• Pre-glued and mounted to tough black scale wheels
• Trail-tuned S1 rubber compound
• 12 mm steel hex

Other Features

• Sealed ball bearings
• Hex hardware with rust-resistant black oxide coating

Requires Battery and Charger (Sold Separately)

Specs:

• Model Name: TRX-4 Defender
• Model Type: Trail / Crawler
• Skill Level: 1
• Scale: 1/10
• Weight: 7.43 pounds (3.37 kg)
• Length: 23.07 inches (586 mm)
• Width: 9.78 inches (249 mm)
• Front Track: 9.78 inches (249 mm)
• Rear Track: 9.78 inches (249 mm)
• Height: 11.48 inches (292 mm)
• Wheelbase: 12.75 inches (324 mm)
• Center Ground Clearance: 3.14 inches (80 mm)
• Drivetrain: Shaft-driven 4WD
• Transmission: 2-speed high/low, remote shifting
• Differential Type: 4 gear, remote locking
• Gear Pitch: 32 pitch
• Servo: 2075X metal gear, digital high-torque waterproof
• Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
• Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm

Motor Specs:

• Motor Name: Titan® 21T Reverse Rotation
• Motor Type: High-torque brushed motor
• Motor Weight: 8.47 ounces (240 g)
• Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
• Motor Diameter: 1.53 inches (39 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Bullet

ESC Specs:

• ESC Name: XL-5™ HV
• ESC Type: Brushed
• Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
• Weight: 2.60 ounces (74 g)
• Battery Connectors: Bullet
• Motor Connectors: Traxxas High-Current Connector
• ESC Power Wire: 14 gauge
