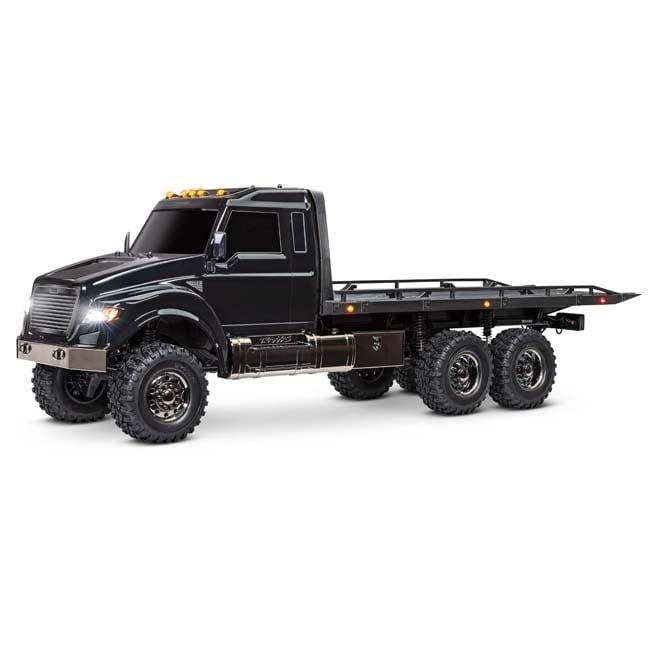

TRX-88086-84-BLK Traxxas TRX-6 Ultimate RC Hauler

TRX-6 Flatbed Hauler w/Winch

ULTIMATE RC HAULER

One look at the TRX-6® Ultimate RC Hauler, and you’ll know this truck means business. Based on the hugely capable TRX-6 platform, the RC Hauler is the biggest and baddest rig in the TRX lineup. The rugged looks are backed up with even tougher performance.

• The rear bed features adjustable wheel chocks and tie-down bands to haul and display 4-Tec® models with style.
• A highly detailed LED lighting system and black-over-black chrome body accessories give the Hauler a rugged, menacing look.

Built Traxxas Tough™, it boasts portal axles, a high/low transmission, and T-Lock™ remote locking differentials. When you’re ready for big-scale RC fun, nothing comes close to the Traxxas Ultimate RC Hauler.

---

MODEL 88086-84

TRX-6® Ultimate RC Hauler

• Scale: 1/10 scale
• Drive System: 6WD electric flatbed truck
• Ready-To-Drive®
• Radio System: TQi™ Traxxas Link™ enabled 2.4 GHz radio system
• ESC: XL-5™ HV ESC (fwd/rev)
• Motor: Titan® 550 motor
• Winch: Pro Scale® Winch

---

What’s In The Box:

• TRX-6 Ready-To-Drive model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High-quality maintenance tools

---

What You’ll Need:

• Batteries: TRX-6 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) Traxxas batteries.
• Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

---

Key Features

Large-Scale RC Hauler Rig Body

• Molded black chrome scale details
• Fuel tanks, tool boxes, side rails, and unique bumpers
• Molded side mirrors and roll bar
• Authentic decals
• Full Nylon composite wheel wells
• Detailed multi-piece hauler bed with adjustable wheel chocks

---

Installed LED Light Kit

• Molded headlights with amber marker lights
• Clearance and marker lights on the roof, roll bar, and hauler bed
• Tail lights integrated into the rear bumper
• Sealed waterproof design
• 25 individual LED lights
• Regulated voltage for consistent and reliable power output

---

Pro Scale® Winch

• Detailed scale appearance
• Rugged waterproof design
• 10-pound towing capacity
• Includes 2-channel remote

---

Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control

• Fully waterproof design
• Five drive profiles:
  • Sport Mode: forward / brake / reverse
  • Race Mode: forward / brake / no reverse
  • Training Mode™: 50% forward / 100% brake / 50% reverse (patented)
  • Trail Mode: forward / brake / reverse with trail-tuned drag brake in neutral
  • Crawl Mode: forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude: NiMH (7.2–8.4 V) and LiPo (7.4–11.1 V)
• Two-stage low-voltage protection (LVD)

---

Titan® 550 Motor

• Mighty Titan 21T reverse rotation motor with internal cooling fan
• Precise, preset gear mesh adjustments
• Motor retention is separate from the gear mesh

---

TQi™ 2.4 GHz Radio System

• 4-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Compatible with optional TQi Traxxas Link Wireless Module (6511) for full Traxxas Link app functionality (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Exclusive Cruise Control for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• Patented waterproof receiver box with easy-access plug

---

Extended Chassis Design

• Full-length 30″ steel frame rails
• 1.5 mm thick for increased torsional rigidity
• Rails run from bumper to bumper
• Extended wheelbase for full-length tow bed
• Bearing-supported intermediate driveshaft
• Wire management clips integrated into frame rails

---

Drivetrain

• Full-time shaft-driven 6-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case

---

Portal Axles

• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

---

Transmission

• Two-speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

---

Steering

• Chassis-mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

---

Suspension

• Front: 3-link with panhard
• Rear: Dual triangulated four link
• Heavy-duty rod ends with steel hollow balls
• 5 mm diameter lower steel link rods with 4 mm threaded ends

---

Aluminum GTS Shocks

• Oil-filled coilover GTS shocks
• Silver-anodized aluminum bodies
• Threaded bodies with collars to easily adjust ride height
• Silky smooth damping for the most challenging trails
• O-ring cap seal and dual X-ring shaft seals

---

Wheels and Tires

• 2.2″ black chrome big rig wheels with hub inserts
• 2.2″ Canyon RT all-terrain tires with foam inserts
• Sticky S1 rubber compound
• 12 mm steel hex

Patented O-ring sealed watertight receiver box keeps the micro receiver dry.

---

Battery and Charger Required

Sold separately.
