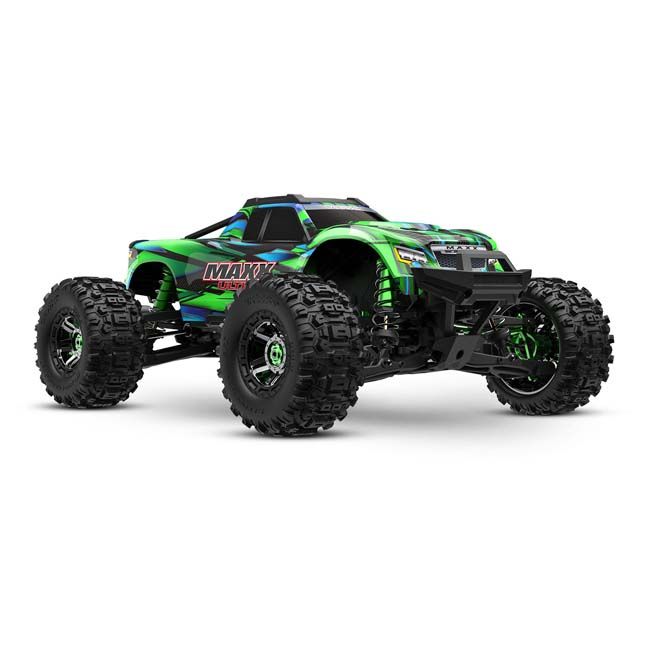

TRX-89087-4-GRN Traxxas Maxx Ultimate (Green)

Maxx Ultimate

Ready-To-Race® 1/10 Scale Monster Truck MODEL 89087-4

The Maxx® Ultimate is a fully assembled 1/10 scale monster truck that comes Ready-To-Race® with the following features:

• TQi™ 2.4 GHz radio system
• VXL-4s™ brushless power system
• ProGraphix® painted body
• Only Available In Store, No shipping

What’s In The Box

• Maxx Ultimate with Velineon® 540XL brushless motor
• VXL-4s waterproof electronic speed control with integrated telemetry
• TQi 2.4 GHz radio system with factory-installed wireless module
• Quick Start Guide
• High-quality maintenance tools

What You’ll Need

• LiPo Battery:
  • Recommended: 4-cell 14.8-volt Power Cell LiPo battery for maximum performance.
  • Optional: 3-cell 11.1 V LiPo battery (reduced performance).
  • Note: NiMH batteries are not supported.
• Charger: LiPo Balance Charger with iD®.
• Alkaline Batteries: Four AA alkaline batteries for the transmitter.

Key Features

High-Performance Aluminum Upgrades

• 6061-T6 aluminum C-hubs
• 6061-T6 aluminum steering blocks
• 6061-T6 aluminum rear hub carriers
• 6061-T6 aluminum transmission cover
• 6061-T6 aluminum motor cradle

Speed Capabilities

• 55 mph out of the box using a single 4s LiPo battery (sold separately).
• 60+ mph with optional gearing & 4s LiPo battery (sold separately).

VXL-4s™ Waterproof Electronic Speed Control

• 3s–4s LiPo compatible
• Built-in cooling fan
• Real-time telemetry via Traxxas Link™
• Machined heat sinks
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights
• Waterproof

Velineon® 540XL Brushless Motor

• Long-format brushless motor
• 4-pole 2400 Kv
• 5 mm output shaft
• Aluminum heat sink
• Cooling fan

Traxxas Stability Management®

• Prevents spinouts and loss of control
• Adjustable from off to 100% assistance via the transmitter

TQi™ 2.4 GHz 2-Channel Radio System

• Factory-installed telemetry through VXL-4s ESC
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Stores and loads settings for up to 30 Traxxas Link-enabled models

Clipless Body Mount System

• Unique Maxx Ultimate graphics
• Quick one-hand installation and removal
• Pivoting rear latch mechanism
• Eliminates body posts and clips
• Molded body reinforcements for extra protection against tearing

Driveline

• Full-time shaft-driven 4-wheel drive
• Steel constant-velocity driveshafts
• Torque-Biasing Center Drive with aluminum housing
• 17 mm aluminum axle adapters & wheel nuts
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears
• Heavy-duty Cush Drive™ with steel spur gear
• Splined aluminum center driveshaft

Chassis & Battery

• Modular Composite Chassis
  • Interlocks with front and rear bulkheads
  • Absorbs and distributes impact energy
  • Easy servicing and component access
  • Sealed driveline to keep out dirt and grit
• Easy Battery Access
  • Extended battery tray accepts Traxxas’ largest 6700 mAh 4-cell LiPo battery
  • Battery is protected deep in the chassis
  • Pivoting battery hold-downs for easy access
  • More secure than conventional retention systems

Steering

• 6061-T6 aluminum steering bellcranks
• 2085RL high-output metal gear steering servo
  • 650 oz-in torque at 6.0 volts
  • 0.13 sec/60° at 6.0 volts
• Double-shear aluminum servo horn
• Heavy-duty servo saver spring

Suspension

• TUBES 7075-T6 Aluminum front toe links
• WideMaxx® suspension arms
• Tough composite formula resists impact damage, even in cold weather
• Double shear strength at all critical suspension points
• Aluminum suspension pin retainers
• Steel pivot balls

GT-Maxx® Shocks

• Threaded aluminum body
• Aluminum shock caps with pivot balls
• Ultra-smooth TiN-coated damper shafts
• Adjustable aluminum upper spring retainer
• Lower seal cartridge with dual X-rings
• Lower spring perches bolted on

Bumpers

• Tough energy-absorbing front and rear bumpers
• Lower front and rear skid plates for impact and abrasion resistance
• Integrated nerf bars for side impact resistance
• Wheelie bar with aluminum wheels

Wheels & Tires

• 2.8″ black chrome wheels with keyed 17 mm hex receptor
• Sledgehammer® extreme tires for sure-footed traction
• 1-piece foam inserts
• Pre-glued, TSM® rated
