TRX-90154-4-BLK Traxxas Jato 4x4 BL-2S Brushless Black

Jato 4X4 BL-2s

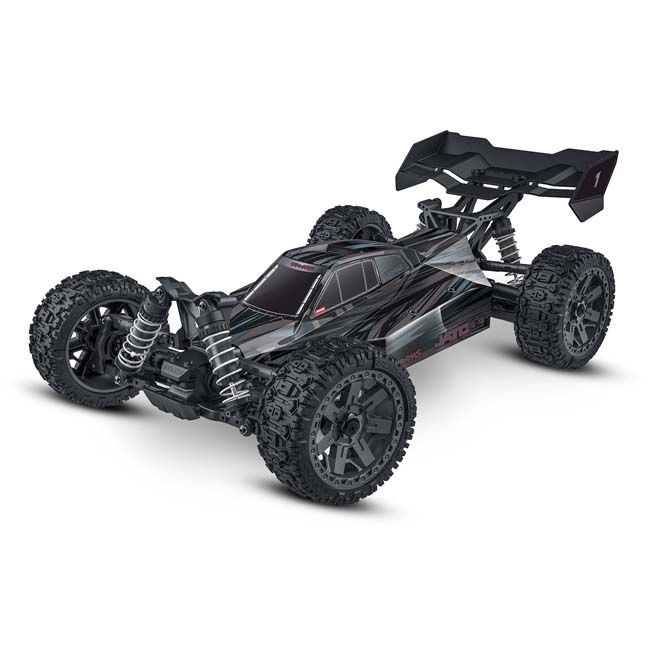

MODEL 90154-4: Jato® 4X4 BL-2s is a 1/8 scale 4X4 brushless buggy, Ready-To-Race® with factory-installed Extreme HD kit, waterproof electronics, TQ™ 2.4 GHz 2-channel radio system, BL-2s™ speed control, and a clipless painted body.

What’s In The Box

• Jato 4X4 with BL-2s ESC and 3300 Kv motor
• Quick Start Guide
• TQ 2.4 GHz radio system
• High-quality maintenance tools

What You’ll Need

• Batteries: Jato 4X4 requires a 7.4-volt LiPo battery or an 8.4-volt NiMH battery.
• Charger: The Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

Features

Clipless Body

• Holds tight for intense action
• Quick and easy removal
• High-downforce wing

Extreme Heavy Duty Upgrade Kit Installed

• Strengthened C-hubs, axle carriers, and steering blocks
• Heavy-duty one-piece camber & toe links
• Maxx-duty driveshafts
• Oversize diameter
• 6 mm axles
• 17 mm hex hubs
• Aluminum wheel nuts

TQ™ 2.4 GHz Transmitter

• Full-size 2-channel transmitter
• All-day comfort with precise long-range control

Steering

• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver

BL-2s™ Waterproof Electronic Speed Control

• Heat sink accepts accessory cooling fan (3340)
• Three Programmable Drive Profiles:
  • Sport Mode: Forward / Brake / Reverse
  • Race Mode: Forward / Brake
  • Training Mode™: 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
• LiPo battery packs: 2 cells (7.4 volts)

3300 kV Brushless Motor

• Integrated cooling fan
• Low-maintenance design
• Efficient ball bearings
• 3300 kV

Chassis

• T-Bar chassis stiffener
• Modular composite tub design
• Secure battery hold-down latch
• Low-CG design
• High-clearance skid plate

Suspension

• Heavy-duty shock towers
• Reinforced shock mounts
• Double-shear camber link connections
• Heavy-duty suspension arms
• Oil-filled GTR shocks
• Threaded shock collars for precise ride height adjustment
• Large oil capacity for consistent damping
• White powder-coated springs

Driveline

• Full-time shaft-driven 4-wheel drive
• Sealed steel gear front and rear differentials
• Large 32-pitch spur gear
• Heavy-duty slipper clutch

Wheels and Tires

• 3″ gray buggy wheels
• 4.5″ Sledgehammer® tires

Sealed Ball Bearings

Hex Hardware

• Rust-Resistant Black Oxide Coating
