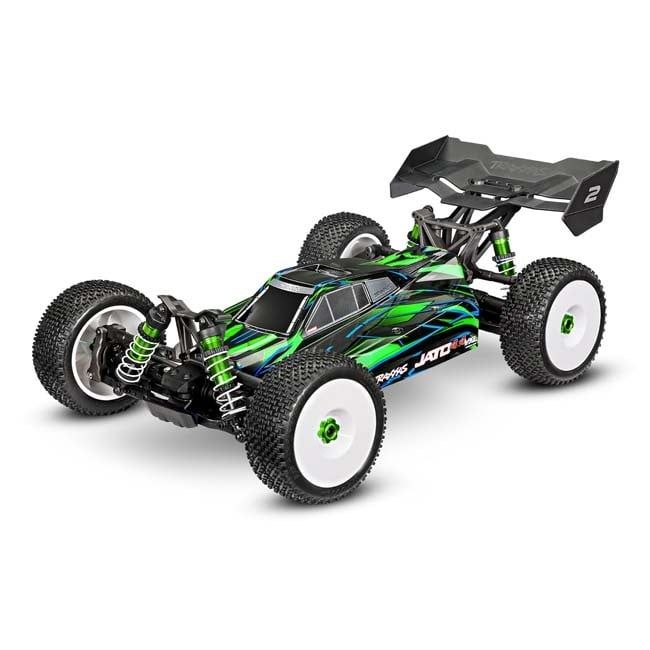

TRX-90386-4-GRN Traxxas JATO 4x4 VXL GREEN

Jato 4X4 VXL-4s

Overview

MODEL 90386-4: Jato 4X4 VXL is a 1/8-scale 4X4 brushless buggy, Ready-To-Race with factory-installed Extreme HD kit, waterproof electronics, TQi 2.4GHz 2-channel radio system, VXL-4s speed control, Velineon 540XL brushless motor, and clipless painted body.

Requires: Battery and charger.

---

What’s In The Box:

• Jato 4X4 with VXL-4s ESC and 540XL motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High-quality maintenance tools

---

What You’ll Need:

• Batteries: Jato 4X4 VXL requires a 2, 3, or 4-cell LiPo battery.
• Charger: Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

---

Features

Clipless Body

• Holds tight for intense action
• Quick and easy removal
• High-downforce wing

---

Extreme Heavy Duty Upgrade Kit Installed

• Strengthened C-hubs, axle carriers, and steering blocks
• Heavy-duty one-piece camber & toe links
• Maxx-duty driveshafts
• Oversize diameter
• 6 mm axles
• 17 mm hex hubs
• Aluminum wheel nuts

---

TQi™ 2.4 GHz High-Output Radio System

• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

---

VXL-4s™ Waterproof Electronic Speed Control

• 2s–4s LiPo compatible
• Real-time telemetry via Traxxas Link™
• Selectable 7.4-volt high-voltage BEC
• Large heat sink accepts accessory cooling fan (3340)
• Three Programmable Drive Profiles:
  • Sport Mode: Forward / Brake / Reverse
  • Race Mode: Forward / Brake
  • Training Mode™: 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• 12-gauge wire
• Integrated protection circuits
• LED status lights

---

Velineon® 540XL Brushless Motor

• Long-format brushless motor
• 4-pole 2400 Kv
• 5 mm output shaft
• Low-maintenance design

---

Chassis

• Aluminum T-Bar chassis stiffener
• Modular composite tub design
• Secure battery hold-down latch
• Low-CG design
• High-clearance skid plate

---

Steering

• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver

---

Suspension

• Heavy-duty shock towers
• Reinforced shock mounts
• Double-shear camber link connections
• Heavy-duty suspension arms
• Aluminum oil-filled GTR shocks
• Threaded shock collars for precise ride height adjustment
• Large oil capacity for consistent damping
• White powder-coated springs

---

Driveline

• Full-time shaft-driven 4-wheel drive
• Torque-Biasing Center Drive
• Sealed steel gear front and rear differentials
• Steel 32-pitch gears

---

Wheels and Tires

• 3″ dish wheels
• S1-compound Response Pro tires

---

Additional Details

• Sealed Ball Bearings
• Hex Hardware: Rust-resistant black oxide coating
