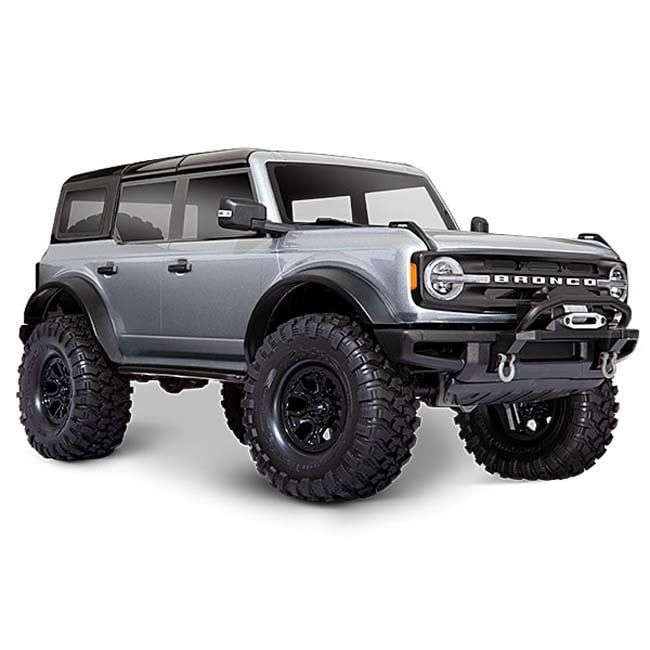

TRX-92076-4-SLVR Traxxas TRX-4 Silver 2021 Ford Bronco

TRX-4 Ford Bronco Trail Crawler

An Off-Road Legend Returns

The legend is back. After 25 years, the Bronco has returned as Ford’s® top-performing 4X4 and America’s most sought-after SUV. Traxxas has captured the Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4®. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

---

Model Overview

MODEL 92076-4: TRX-4 Scale and Trail® crawler with Ford® Bronco body:

• Scale: 1/10 scale 4X4 trail truck
• Assembly: Fully-assembled
• Electronics: Waterproof
• Ready-To-Drive®
• Radio System: TQi™ 2.4 GHz 4-channel radio system
• Speed Control: XL-5™ HV speed control
• Transmission: High/low transmission
• Differentials: Remote locking
• Body: Painted

---

What’s In The Box:

• TRX-4, Ready-To-Race model pre-assembled
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High-quality maintenance tools

---

What You’ll Need:

• Batteries: TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) Traxxas batteries.
• Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

---

Features

Officially Licensed 2021 Ford® Bronco Body:

• Two-tone paint with black roof and clear windows
• LED-ready headlights and taillights with multi-function capability
• Scale details:
  • Black molded grille with white Bronco logo
  • Replica hood cowl with wipers and folding mirrors
  • Replica spare tire mount
  • Replica door handles
  • Rugged PVC fender flares, wheel wells, and floor pans
  • Front and rear Bronco bumpers with skid plate and replica winch

Clipless Body Mounting:

• Clipless design for a smooth body appearance
• Rugged internal body cage for added rigidity
• Body details mount directly to the internal frame

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control:

• Fully waterproof design
• Five drive profiles:
  • Sport Mode: forward / brake / reverse
  • Race Mode: forward / brake / no reverse
  • Training Mode™: 50% forward / 100% brake / 50% reverse (patented)
  • Trail Mode: forward / brake / reverse with trail-tuned drag brake in neutral
  • Crawl Mode: forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude: NiMH (7.2–8.4 V) and LiPo (7.4–11.1 V)
• Two-stage low-voltage protection (LVD)

Titan® 550 Motor:

• Powerful Titan 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention is separate from gear mesh

Portal Axles:

• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

TQi™ 2.4 GHz Radio System:

• 4-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• Patented waterproof receiver box with easy-access plug

---

Rigid Steel Frame:

• 1.5 mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails

---

Innovative Battery Compartment:

• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

---

Drivetrain:

• Full-time shaft driven 4-wheel drive
• Rugged 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case

---

Transmission:

• Two-speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

---

Steering:

• Chassis mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

---

Suspension:

• Front: 3 link with Panhard
• Rear: Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5 mm diameter steel link rods with 4 mm threaded ends

---

Aluminum GTS Shocks:

• Oil-filled coilover GTS shocks exclusive to the TRX-4 chassis
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the most challenging trails
• O-ring cap seal and dual X-ring shaft seals

---

Wheels and Tires:

• Replica black 2021 Bronco wheels
• Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
• Trail tuned S1 rubber compound
• 12 mm steel hex

---

Additional Details:

• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

---

Note:

Requires Battery and Charger (Sold Separately)
