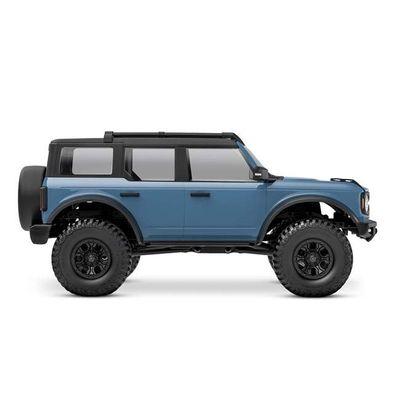

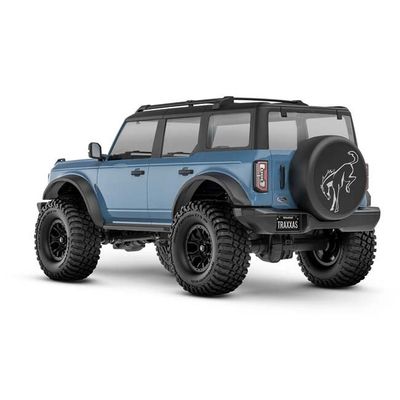

TRX-97074-1-A51 Traxxas TRX-4m Crawler with Ford® Bronco® (Area51 Blue): 1/18 Scale 4WD Electric Truck w/ TQ™ 2.4GHz Radio, ECM-2.5 Electronic Control Module (fwd/rev), and Titan® 87T motor. Includes:

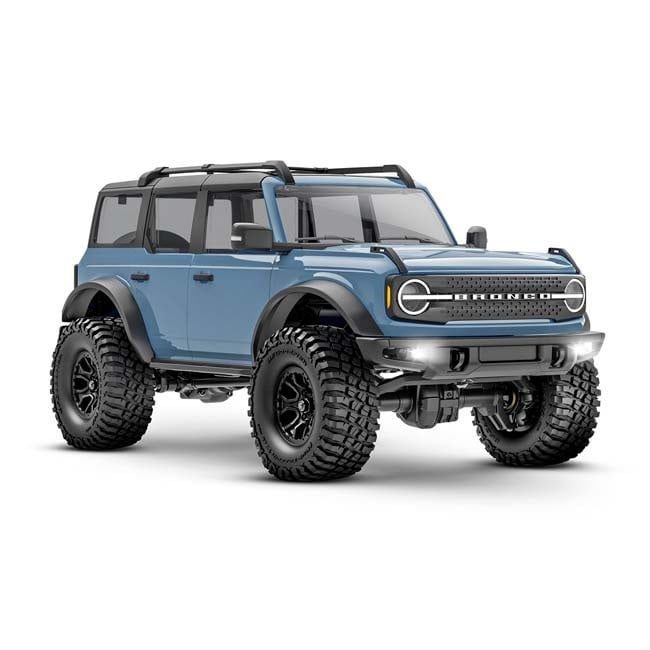

TRX-4M Ford Bronco 1/18 Trail Crawler

MODEL 97074-1

1/18 Scale 4X4 Trail Truck, Fully-Assembled, Ready-To-Drive®, with TQ™ 2.4GHz 2-channel Transmitter, and ECM-2.5™ Waterproof Electronics.

Overview

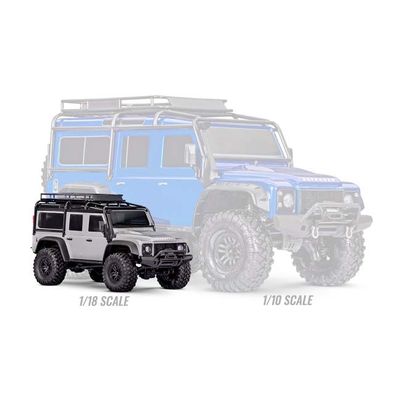

The TRX-4M offers a new way to experience all the fun, adventure, and scale realism of the TRX-4 in a compact 1/18 platform. Bridging the gap between the small crawler scene and 1/10 scale quality and performance, the TRX-4M delivers:

• True outdoor capability with oil-filled shocks, steel frame rails, and a smooth-running drivetrain that tackles rocks, grass, and streams with ease.
• Fantastic indoor maneuverability thanks to a tight turning radius and precise throttle control.

Key Features

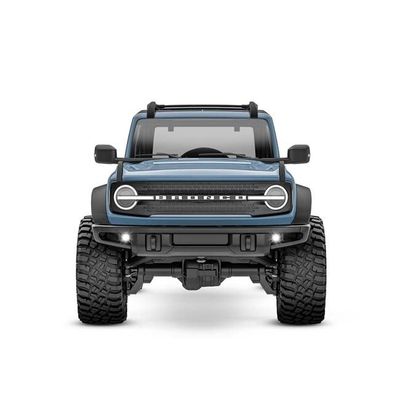

Officially Licensed Ford® Bronco Clipless Body

• Highly-detailed ABS hard body
• Molded-in color that won’t chip or flake
• Tough fender flares and rock sliders
• Realistic side mirrors, door handles, and wipers
• LED bumper lights
• Heavy-duty latching clips for secure trail performance and quick release

ECM-2.5™ Electronic Control Module

• Combines ESC, receiver, and LED controller in a single chassis
• Fully waterproof for all-weather fun
• Three drive profiles:
  • Sport Mode — forward / brake / reverse
  • Trail Mode — forward / brake / reverse with trail-tuned drag brake in neutral
  • Crawl Mode — forward / instant reverse with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Built-in Pro Scale® LED functionality
• Two-stage low voltage protection (LVD)
• Motor overload protection

TQ™ 2.4 GHz Transmitter

• Full-size 2-channel transmitter
• Provides all-day comfort and precise long-range control

Titan® 180 87-Turn Brushed Motor

• Fixed gear mesh requiring no adjustment
• Forward mounting position for enhanced crawling dynamics

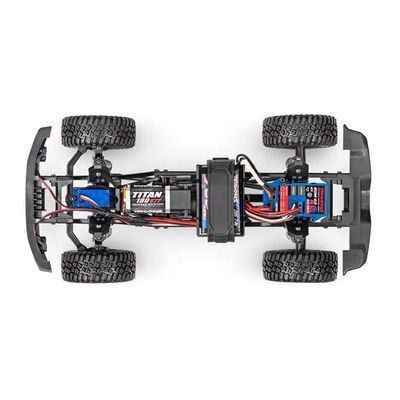

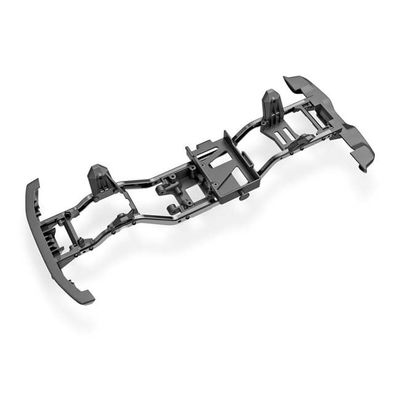

Heavy-Duty Steel Ladder Frame

• Deep C-channel design for maximum rigidity
• Thicker center section for added durability
• Rails run bumper to bumper

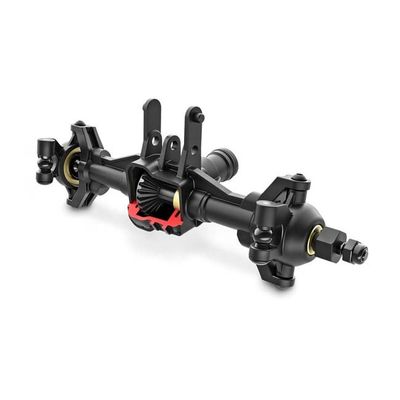

Drivetrain

• Full-time shaft-driven 4-wheel drive
• Solid steel axles
• Spool-equipped front and rear axles
• Heavy-duty CV center driveshafts

Low-CG Battery Tray

• Concentrates weight lower for improved stability
• Wide rubber strap secures the battery in place

Optional Transmission Ratios (sold separately)

• Low Range or Speed Gearing transmissions
• Modular design allows quick swaps in minutes

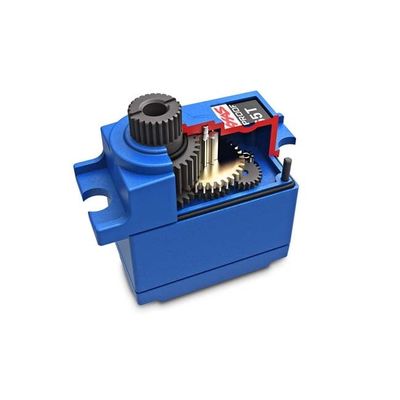

Steering

• Heavy-duty 2065T steering servo with metal main gear
• Superior 45° steering angle
• Direct steering (no servo saver)

Suspension

• Triangulated 4-link front and rear suspension
• Heavy-duty rod ends

Oil-Filled GTM™ Shocks

• Smooth, controlled damping for realistic body movements
• Adjustable pre-load spacers
• Easy refresh with available rebuild kits

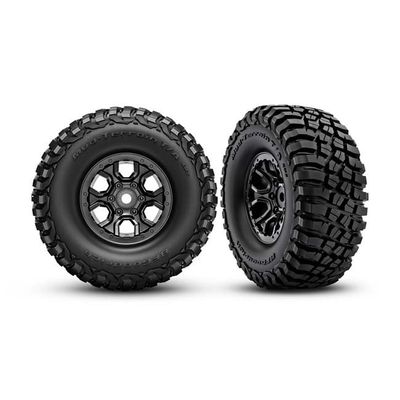

Wheels and Tires

• Highly-detailed 1″ wheels with 7 mm hex
• Replica BF-Goodrich® Mud Terrain T/A® KM3 tires
• Trail-tuned rubber compound

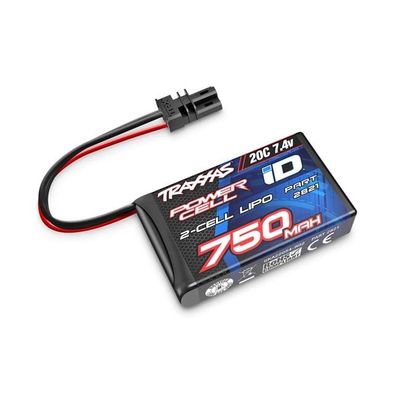

Battery and Charger Included

• High-capacity 2-cell LiPo battery with iD® technology
  • 7.4 volts
  • 750 mAh for over an hour of run time
• 2-amp USB-powered charger
• iD® technology ensures faster, safer charging

Additional Features

• Low-maintenance self-lubricating bushings
• Durable hex hardware

Model Specs

• Model Name: TRX-4M Ford Bronco
• Model Type: Trail / Crawler
• Model Skill Level: 1
• Scale: 1/18
• Weight: 1.03 pounds (468 g)
• Dimensions:
  • Length: 10.3 inches (262 mm)
  • Width: 4.9 inches (124 mm)
  • Height: 4.6 inches (117 mm)
  • Wheelbase: 6.1 inches (155 mm)
  • Center Ground Clearance: 1.12 inches (29 mm)
• Drivetrain: Shaft-driven 4WD
• Transmission: Single-speed direct drive
• Differential Type: Locked spool
• Gear Ratio (Internal): 11.38
• Gear Pitch: 64 pitch
• Servo(s): 2065T
• Radio System: TQ 2.4 GHz 2-channel transmitter
• Battery Compartment Specs: 51 mm x 31 mm

Motor Specs

• Motor Name: Titan 180
• Motor Type: 87-turn brushed motor
• Motor Weight: 1.16 ounces (33 g)
• Motor Dimensions:
  • Length: 1.66 inches (42 mm)
  • Diameter: 0.81 inches (21 mm)

ESC Specs

• ESC Name: ECM 2.5™
• ESC Type: Brushed
• ESC Case Dimensions: 1.79 inches (45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm)
• ESC Weight: 0.92 ounces (26 g)

Note: The charger requires a USB power source, and the transmitter requires 4 'AA' batteries, sold separately.
