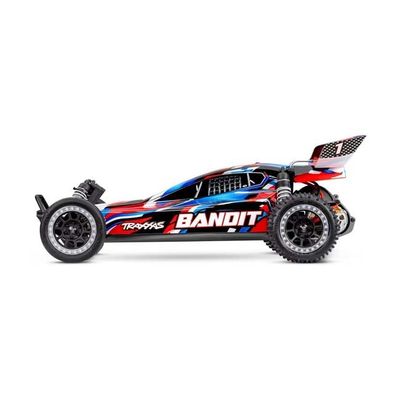

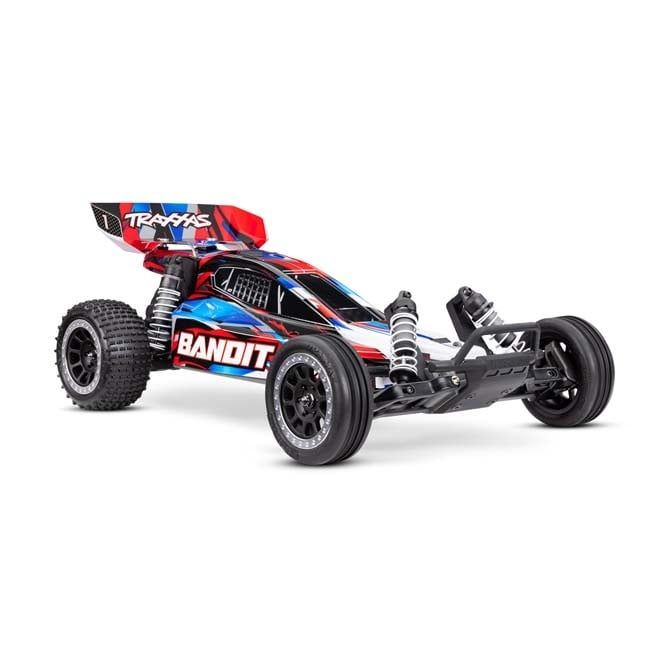

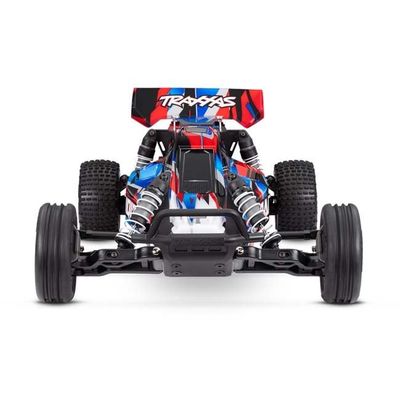

TRX-24254-8-RED Traxxas Bandit HD RED 1/10 Extreme Sports Buggy w/USB-C - Red

Traxxas Bandit XL-5 w/Battery

MODEL 24254-8

Fully assembled, waterproof, Ready-To-Race®, with:

• TQ™ 2.4 GHz radio system
• XL-5® Electronic Speed Control
• 8.4 V NiMH 3000 mAh Power Cell™ battery
• 4-amp USB-C fast charger
• ProGraphix® painted body

Features

ProGraphix® Painted Body

• Pre-painted body with applied decals
• Aggressive, aerodynamic body with rear wing

High-Performance Waterproof XL-5™ Electronic Speed Control

• Innovative waterproof design
• Three drive profiles:
  • Sport Mode: forward / brake / reverse
  • Race Mode: forward / brake
  • Training Mode™: 50% forward / brake / 50% reverse (patented)
• Traxxas EZ-Set® one-button setup
• LiPo and NiMH compatible with two-stage low-voltage detection

Titan® 550 Motor

• Powerful Titan 12T 550 modified motor with internal cooling fan
• Oversized armature for big torque and increased power handling
• Virtually maintenance-free operation

TQ™ 2.4 GHz 2-Channel Radio System

• Ergonomic transmitter with internal antenna
• Traxxas 6519 3-channel micro receiver with fail-safe security
• Sealed watertight receiver box keeps the receiver dry

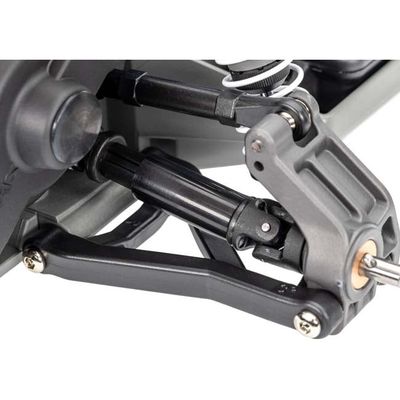

Extreme Heavy Duty Parts Installed

• Strengthened C-hubs, axle carriers, and steering blocks
• HD suspension arms

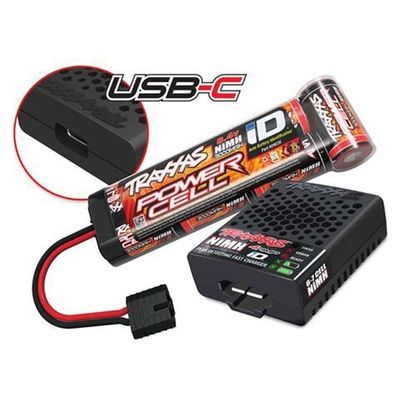

Includes Battery and Charger

• 4-amp USB-C fast charger
• 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®

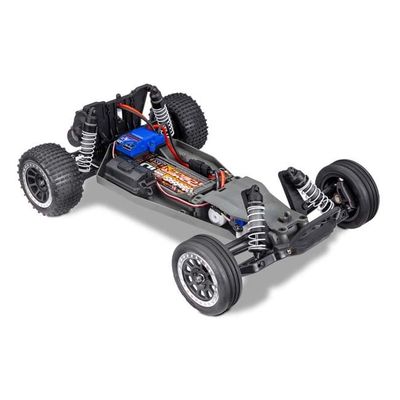

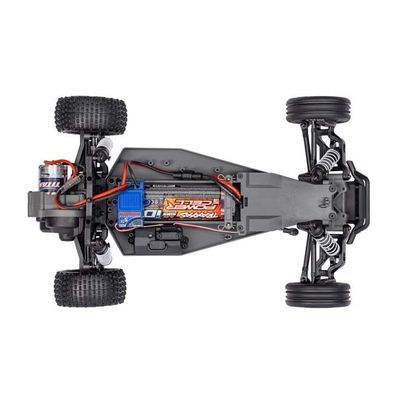

Tough Fiber-Composite Monocoque Chassis

• Tough tube-style LED-ready front bumper
• Wide, low-profile design for increased stability
• All electronics securely fastened to chassis

Easy Access Battery Compartment

• Accepts 7-cell flat packs and hump packs
• Accepts 2-cell LiPo batteries

Transmission and Driveline

• Brushless-ready Magnum 272™ metal-gear transmission
• Torque-Control™ slipper clutch system
• Planetary gear differential with steel ring gear
• Sealed gearbox protects the transmission with beefed-up motor guard
• External gear cover with easy clutch access
• Telescoping U-joint driveshafts

Steering

• High-torque waterproof Traxxas 2056 steering servo

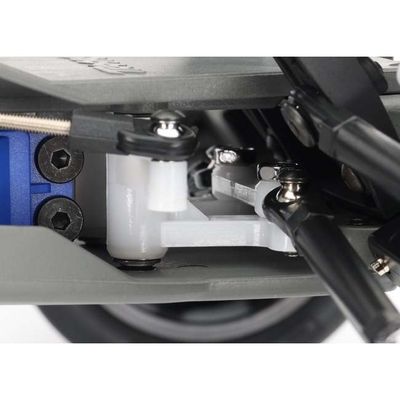

• High-performance bellcrank system minimizes bump steer

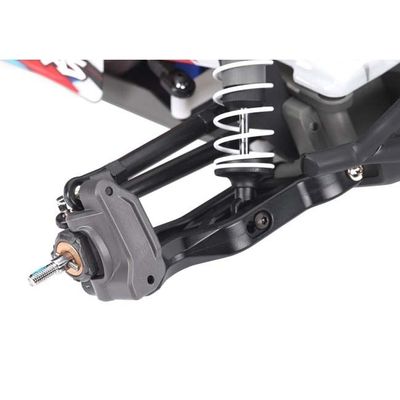

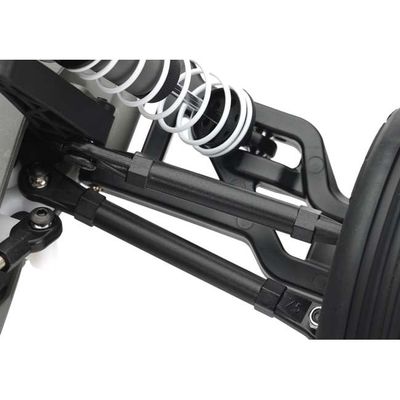

Suspension

• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won't pop off

Springs and Shocks

• Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
• White powder-coated springs

Wheels and Tires

• Pre-glued Alias® step-pin rear tires and ribbed front tires with performance foam inserts
• 2.2″ black and chrome multi-spoke wheels

Precision Hex Hardware

Model Specs

• Model Name: Bandit HD w/USB-C
• Model Type: Buggy
• Model Speed: 35+ mph with 7-cell battery
• Model Skill Level: 1
• Scale: 1/10
• Weight: 3 pounds (1.36 kg)
• Length: 16.25 inches (413 mm)
• Width: 9.84 inches (250 mm)
• Front Track: 9.84 inches (250 mm)
• Rear Track: 9.84 inches (250 mm)
• Height: 7 inches (178 mm)
• Wheelbase: 11.25 inches (286 mm)
• Drivetrain: 2WD
• Transmission: Magnum 272™
• Differential Type: Planetary steel gear
• Gear Ratio (Internal): 2.72 (final drive: 12.34)
• Gear Pitch: 48 pitch
• Servo(s): 2056 high-torque waterproof
• Radio System: TQ™ 2.4 GHz 2-channel radio
• Battery Compartment Specs: 164 mm X 46 mm X 26 mm

Motor Specs

• Motor Name: Titan® 12T 550
• Motor Type: High-speed brushed motor
• Motor Weight: 8.47 ounces (240 g)
• Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
• Motor Diameter: 1.41 inches (36 mm)
• Motor Shaft Size: 3 mm
• Motor Connector Type: Bullet

ESC Specs

• ESC Name: Waterproof XL-5 ESC with low-voltage detection
• ESC Type: Brushed
• ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
• ESC Weight: 2.44 ounces (69 g)
• Motor Connectors: Bullet
• Battery Connectors: Traxxas High-Current Connector
• ESC Power Wire: 14 gauge

Note: 4 'AA' batteries are required, sold separately. USB charger requires power source and cable, sold separately.
