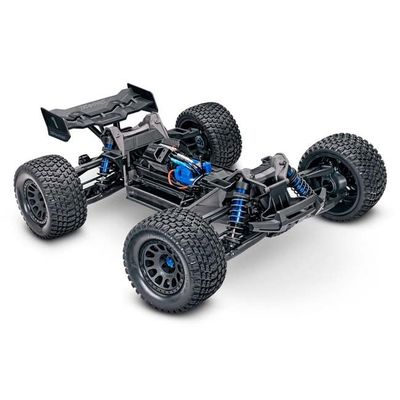

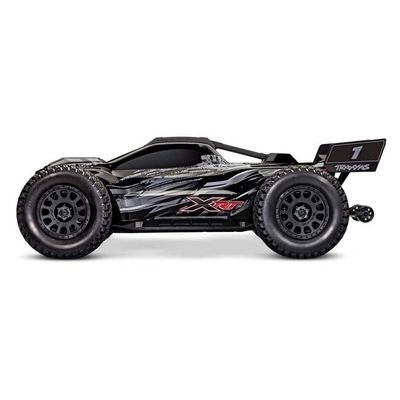

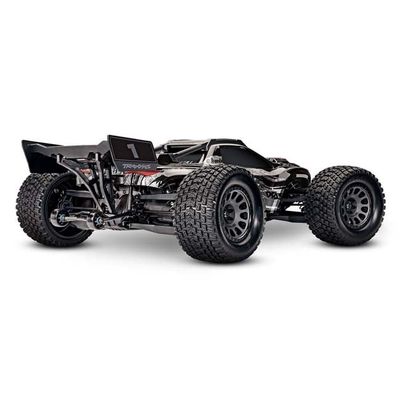

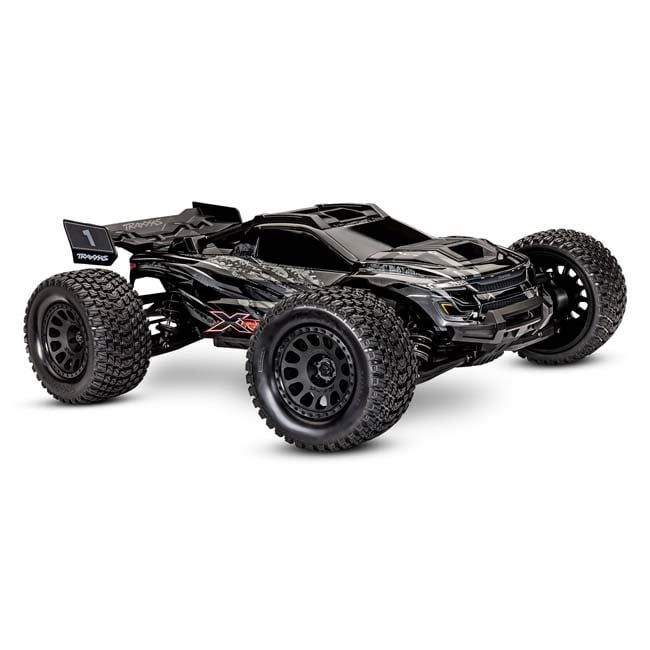

TRX-78086-4-BLK Traxxas XRT 8s Race Truck Black

Traxxas XRT 8s Monster Size Race Truck (Black)

Tough, durable, and fast, this monster 'Truggy' does it all!

Featuring:

• 8s power system with a huge 1275kV motor
• Waterproof electronics
• Metal 4x4 drive-line
• Clipless body mounting
• Radio transmitter system included

Built on a Race-Inspired LCG platform with legendary X-Maxx Heavy-Duty heritage.

Key Features:

VXL-8s™ Waterproof Electronic Speed Control

• New aggressive tune for more power at any RPM
• 8s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link
• 3-LED status indicators
• Machined heat sink
• Powered accessory ports
• 10-gauge silicone wire
• Integrated protection circuits

Velineon® 1200XL Brushless Motor

• 4-pole 1275 kV
• 5 mm output shaft
• Oversized aluminum heatsink for improved cooling
• Dual cooling fans
• Up to 60+ mph with two 4s LiPo batteries (sold separately)

Traxxas Stability Management®

• Improves straight-line acceleration and braking on low-traction surfaces
• Never dulls the throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

2.4 GHz High Output Radio System

• Automatically stores and loads settings for up to 30 Traxxas Link™
• TQi 2-channel transmitter
• Traxxas Link enabled
• 2.4 GHz 5-channel micro receiver with fail-safe security and integrated telemetry ports
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)

X-Truck™ Drivetrain

• Full-time shaft-driven 4-wheel drive
• Heavy-duty steel CV driveshafts & axles
• Splined aluminum center driveshaft
• Machined aluminum stub axles

Transmission

• Mod-1 pinion and spur gears
• Fixed gear mesh system
• Torque-Biasing Center Drive

X-Truck Differentials

• Heavy-duty sealed 4-gear design
• Large-scale steel ring and pinion gears
• Splined outdrives attached with the external thru-bolt method
• New bulkhead and covers increase bearing support

Rock-Solid Motor Mounting System

• Precise preset gear mesh adjustments
• 4 keyed pins lock the motor in place
• Motor retention is separate from gear mesh

GTX™ Shocks

• Machined aluminum threaded body
• Extra-large bore and capacity
• 5.2 mm damper shaft
• Lower seal cartridge includes an integrated wiper seal combination
• Height-adjustable spring retainer
• Heavy-duty composite shock caps with pivot balls
• Lower spring perches bolted on

WideMaxx® Suspension

• Performance-optimized geometry
• Extra-wide suspension arms
• Made from the strongest cold-weather material
• Double-shear connections
• High-strength steel suspension pins with retainers
• 4 mm machined pivot balls
• Fixed high-strength camber and toe links
• Heavy-duty steering blocks and axle carriers
• Oversized wheel bearings

Steering

• Powerful 365 oz-in steering servo
• Heavy-duty cam-style servo saver
• Dirt evacuation channels
• Fully waterproof

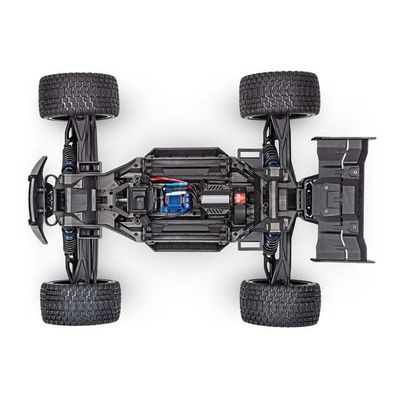

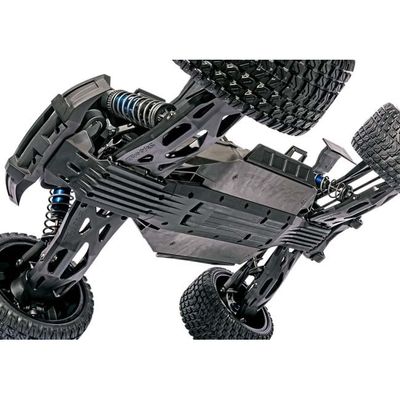

Ultra-Low-CG Chassis Design

• Modular chassis with interlocking bulkheads
• Low center of gravity for improved handling
• Flat bottom design
• Heavy-duty interlocking skid plates
• High-strength buttressing on shock towers

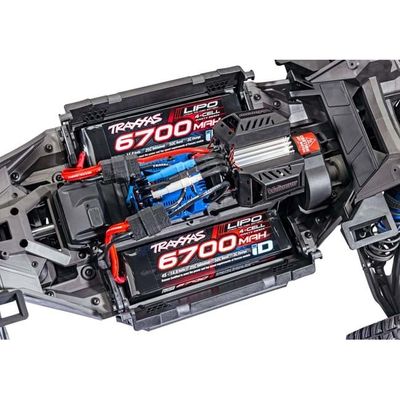

• Dual snap-lock battery compartments for added protection
• Allows secondary battery-clip security
• Interlocking components for tight tolerances
• Wire management for a clean appearance

Patent-Pending Clipless Body

• Snaps in place in just seconds
• Secure body latches are easy to use
• Clipless body mounting system
• Rigid internal frame
• Dual high-capacity cooling ducts
• Molded body reinforcements for tear-through protection
• Protective top skids

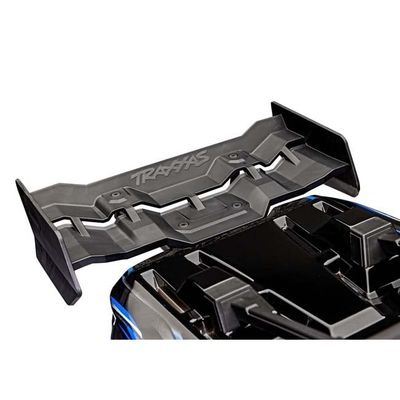

• Rugged high-downforce rear wing

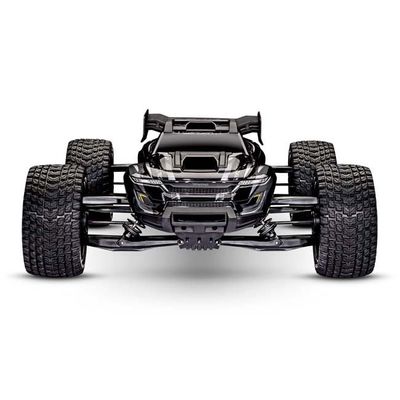

Heavy-Duty Bumpers

• Reinforced front bumper and rear wing support absorb impact forces while retaining shape
• Heavy-duty front bumper and support
• Reinforced rear wing support
• Nerf bars for side impact resistance

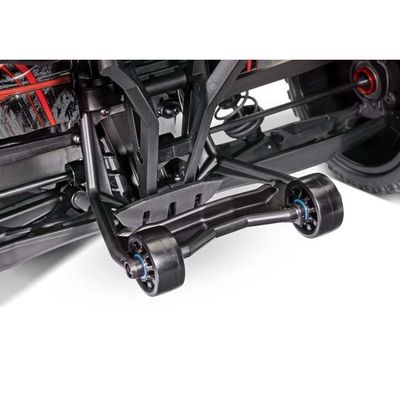

• Heavy-duty wheelie bar with carry handle

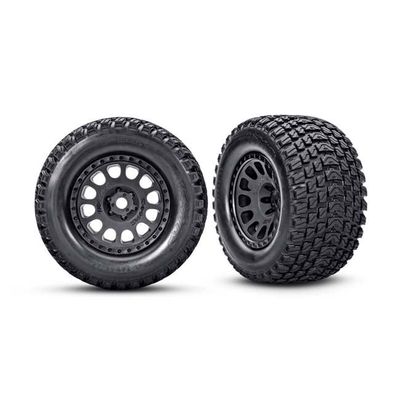

Wheels and Tires

• 7.4″ Gravix™ race tires
• Low sidewall for sharp turn-in response
• Thick center carcass resists ballooning at high speed
• Lower rotational mass for faster acceleration
• 3.8″ matte black XRT® wheels
• High-strength glue and bead design
• Huge 24 mm splined wheel hubs

Additional Specifications

• Length (including wing): 31.41 inches (798mm)
• Front Track: 23.43 inches (595mm)
• Rear Track: 23.43 inches (595mm)
• Ground Clearance: 1.93 inches (49mm)
• Weight:
  • 19.70 pounds (8.94 kg) - without body
  • 21.03 pounds (9.54 kg) - with body
  • 23.87 pounds (10.83 kg) - with body & two 4s 6700mAh LiPos
• Height:
  • 10.15 inches (258mm) - ride height
  • 12.12 inches (308mm) - full droop
• Wheelbase: 18.9 inches (480mm)
• Shock Length (front & rear): 6.79 inches (173mm)
• Tires (Pre-Glued): 7.4 x 4.0 inches (188mm x 102mm)
• Wheels: 4.3 x 5.7 inches (110mm x 147mm)

Electronics

• Speed Control: Velineon® VXL-8s
• Motor (electric): Velineon® 1200XL Brushless with heat sink and dual fan shrouds

Important Notes

• LiPo power batteries and charger not included
• Requires 4 'AA' batteries (not included)
