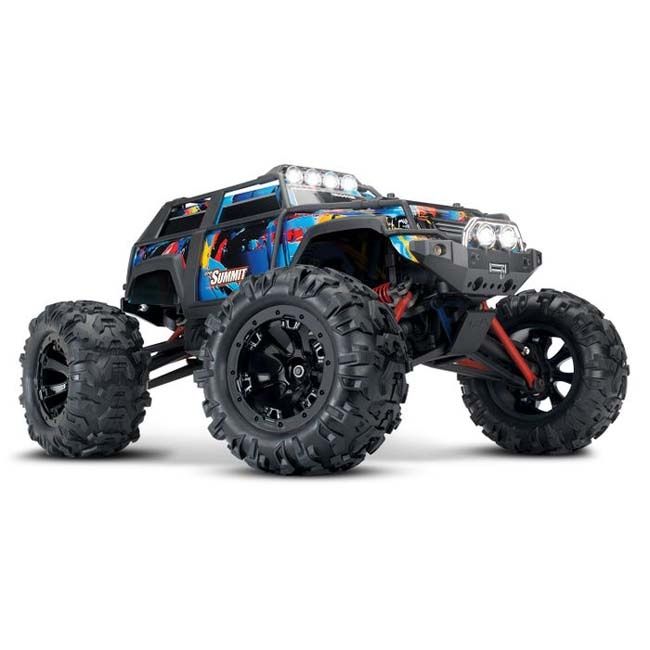

TRX-72054-5-RNR Traxxas Summit: 1/16-Scale 4WD Electric Extreme Terrain Monster Truck with TQ 2.4GHz radio system

1/16 Summit

MODEL 72054-5:
Fully assembled, Ready-To-Race with TQ 2.4GHz radio system, Titan 12-turn motor, XL-2.5 ESC, 7.2V iD NiMH battery, AC wall charger, and painted body.

What’s In The Box:

• 1/16 Summit with Titan® 12T modified motor and XL-2.5 ESC
• TQ™ 2.4 GHz radio system
• Quick Start Guide
• 7.2 volt NiMH iD® battery
• 2-amp USB-C fast charger with iD®

What You’ll Need:

• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
• USB Power Source

Features:

ProGraphix® Painted Body

• 1/16 Scale pre-painted body with applied decals
• Rugged bolt-on ExoCage
• Bright 12-LED lighting system

Waterproof XL-2.5™ Electronic Speed Control

• Innovative waterproof design
• Three drive profiles:
  • Sport Mode: forward / brake / reverse
  • Race Mode: forward / brake
  • Training Mode™: 50% forward / brake / 50% reverse (patented)
• Traxxas EZ-Set® one-button setup
• High-capacity heat sink
• LiPo and NiMH compatible with two-stage low-voltage detection

Titan® 550 Motor

• Powerful Titan 12T 550 modified motor with internal cooling fan
• Oversized armature for big torque and increased power handling
• Virtually maintenance-free operation

TQ™ 2.4 GHz 2-Channel Radio System

• Ergonomic transmitter with internal antenna
• Traxxas 6519 3-channel micro receiver with fail-safe security
• Patented O-ring sealed watertight receiver box keeps the micro receiver dry

Includes Battery and Charger

• AC wall outlet charger
• 1200 mAh Traxxas 6-cell 7.2 V NiMH battery with iD®

Fiber-Composite Monocoque Chassis

• Low-CG design for improved performance
• Tough skid plates for driveline protection

Dual Integrated Battery Compartments

• Quick-release battery doors for fast pack changes
• Intake and exhaust cooling vents keep battery temperatures down
• Accepts 1/16 scale NiMH and LiPo batteries

Transmission and Driveline

• Full-time shaft-driven 4WD
• Heavy-duty CV-style driveshafts
• Sealed heavy-duty transmission
• Adjustable slipper clutch
• Sealed, silicone-filled differentials

Steering

• Digital waterproof Traxxas 2080 steering servo
• Servo horn with integrated servo saver

Suspension

• Twin-arm pivot ball suspension
• Installed long travel rockers for maximum suspension articulation
• Rocker-actuated shocks provide true progressive damping
• Extended-wheelbase rear suspension arms (+10 mm)
• Captured rod ends won't pop off

Springs and Shocks

• Inboard fully adjustable oil-filled GTR™ shocks
• Adjustable pre-load collars
• Red powder-coated springs

Wheels and Tires

• Pre-glued Canyon AT™ Tires with foam inserts
• Black Geode 2.2″ wheels with beadlock trim

Rubber-Sealed Ball Bearings

Precision Hex Hardware

Backed by Unparalleled Traxxas Support and Parts Availability
