TRX-97074-1-BLK Traxxas TRX-4m Crawler with Ford® Bronco® (Black): 1/18 Scale 4WD Electric Truck w/ TQ™ 2.4GHz Radio, ECM-2.5 Electronic Control Module (fwd/rev), and Titan® 87T motor. Includes: 750 m

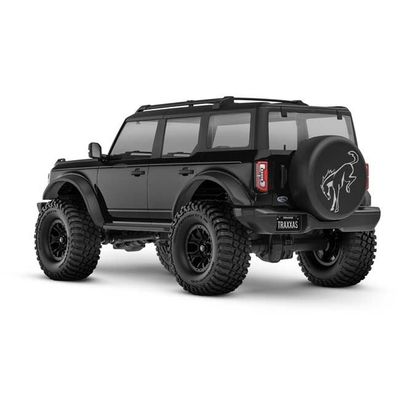

TRX-4M Ford Bronco 1/18 Trail Crawler

MODEL 97074-1: 1/18 Scale 4X4 Trail Truck, Fully-Assembled, Ready-To-Drive®, with TQ™ 2.4GHz 2-channel Transmitter, and ECM-2.5™ Waterproof Electronics.

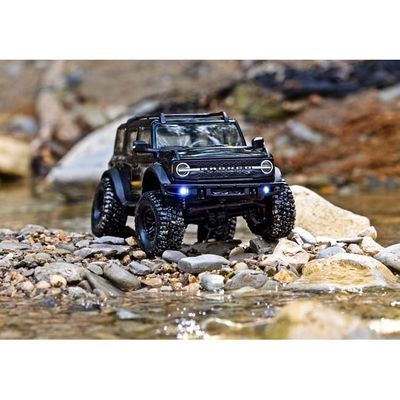

Experience all the fun, adventure, and scale realism of the TRX-4 in a compact 1/18 platform. The TRX-4M bridges the gap between the small crawler scene and 1/10 scale quality and performance. With oil-filled shocks, steel frame rails, and a smooth running drivetrain, this crawler delivers true outdoor capability over rocks, grass, and streams. Its tight turning radius and precise throttle control also make it fantastic for indoor maneuverability.

Features

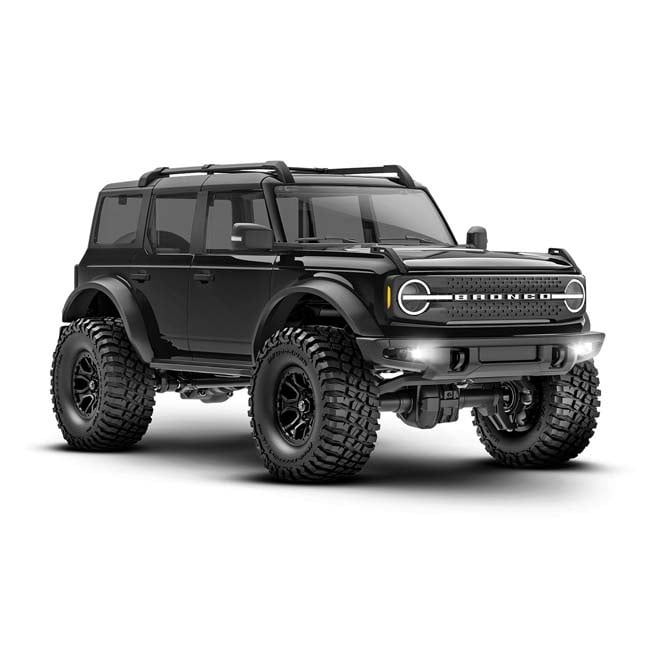

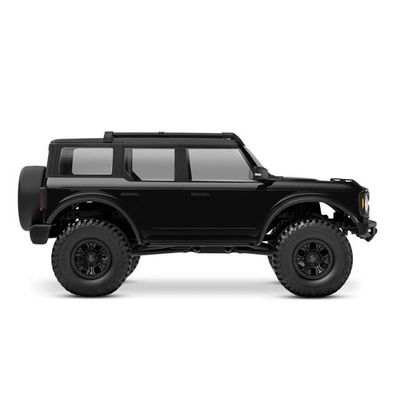

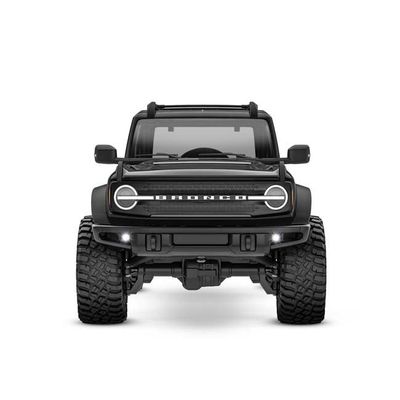

Officially Licensed Ford® Bronco Clipless Body

• Highly-detailed ABS hard body
• Molded-in color won’t chip or flake
• Tough fender flares and rock sliders
• Realistic side mirrors, door handles, & wipers
• LED bumper lights
• Heavy-duty latching clips hold tightly on the trail and release in seconds

ECM-2.5™ Electronic Control Module

• Combines ESC, receiver, and LED controller in one chassis
• Fully waterproof for all-weather fun
• Three drive profiles:
  • Sport Mode — forward / brake / reverse
  • Trail Mode — forward / brake / reverse with trail-tuned drag brake in neutral
  • Crawl Mode — forward / instant reverse (no neutral) with 100% hill-holding brake
• Traxxas EZ-Set® one-button setup
• Built-in Pro Scale® LED functionality
• Two-stage low voltage protection (LVD)
• Motor overload protection

TQ™ 2.4 GHz Transmitter

• Full-size 2-channel transmitter
• All-day comfort with precise long-range control

Titan® 180 87-Turn Brushed Motor

• Fixed gear mesh doesn’t require adjustment
• Forward mounting position for improved crawling dynamics

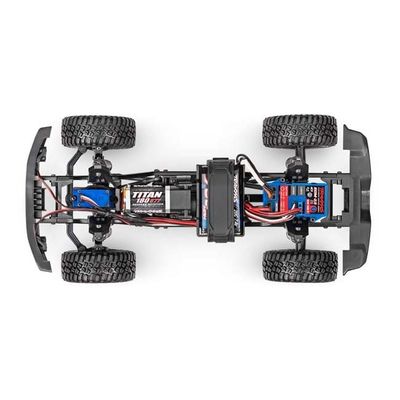

Heavy-Duty Steel Ladder Frame

• Deep C-channel design
• Thicker center section for maximum rigidity
• Rails run from bumper to bumper

Drivetrain

• Full-time shaft-driven 4-wheel drive
• Solid steel axles
• Spool-equipped front and rear axles
• Heavy-duty CV center driveshafts

Low-CG Battery Tray

• Concentrates weight lower for improved stability
• Wide rubber strap secures battery in place

Optional Transmission Ratios (sold separately)

• Optional Low Range or Speed Gearing transmissions
• Modular design swaps out in minutes

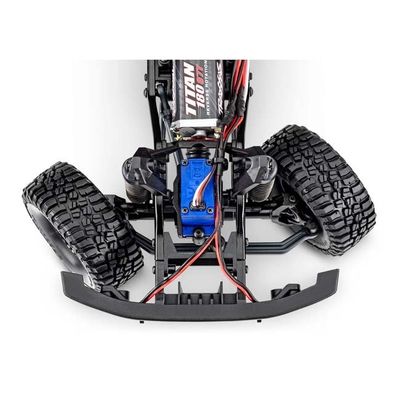

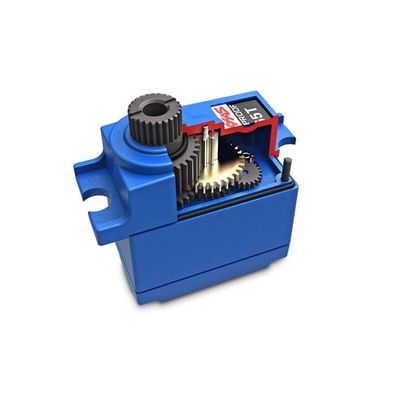

Steering

• Heavy-duty 2065T steering servo
• Metal main gear
• Superior 45° steering angle
• Direct steering (no servo saver)

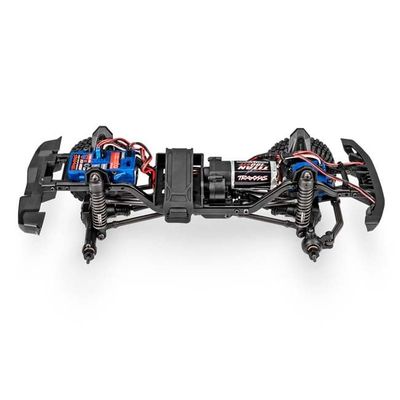

Suspension

• Triangulated 4-link front and rear
• Heavy-duty rod ends

Oil-Filled GTM™ Shocks

• Provides smooth controlled damping
• Realistic driving body movements
• Adjustable pre-load spacers
• Easily refreshed with available rebuild kits

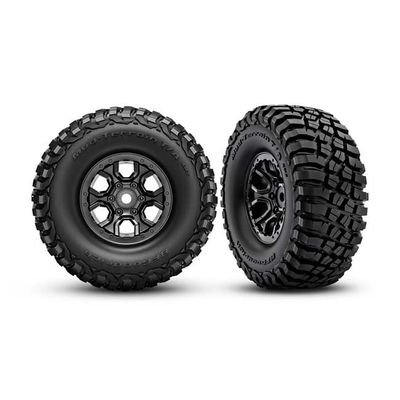

Wheels and Tires

• Highly-detailed 1″ wheels with 7 mm hex
• Replica BF-Goodrich® Mud Terrain T/A® KM3 tires
• Trail-tuned rubber compound

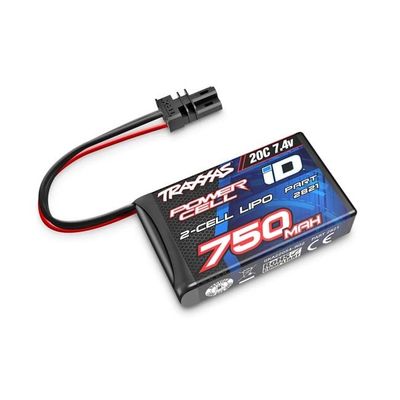

Battery and Charger Included

• High-capacity 2-cell LiPo battery with iD®
• 7.4 volts, 750 mAh for over an hour of run time

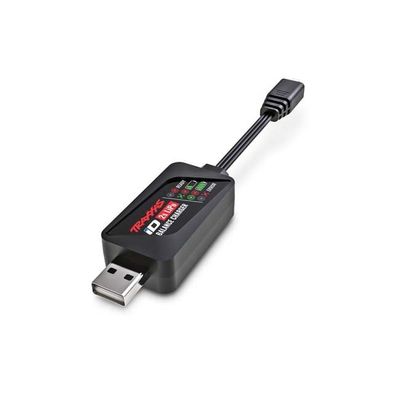

• 2-amp USB-powered charger
• iD® technology for faster, safer charging

Additional Features

• Low-Maintenance Self-Lubricating Bushings
• Durable Hex Hardware

Model Specs

• Model Name: TRX-4M Ford Bronco
• Model Type: Trail / Crawler
• Model Skill Level: 1
• Scale: 1/18
• Weight: 1.03 pounds (468 g)
• Length: 10.3 inches (262 mm)
• Width: 4.9 inches (124 mm)
• Front Track: 4.9 inches (124 mm)
• Rear Track: 4.9 inches (124 mm)
• Height: 4.6 inches (117 mm)
• Wheelbase: 6.1 inches (155 mm)
• Center Ground Clearance: 1.12 inches (29 mm)
• Drivetrain: Shaft-driven 4WD
• Transmission: Single speed direct drive
• Differential Type: Locked spool
• Gear Ratio (Internal): 11.38
• Gear Pitch: 64 pitch
• Servo(s): 2065T
• Radio System: TQ 2.4 GHz 2-channel transmitter
• Battery Compartment Specs: 51 mm X 31 mm

Motor Specs

• Motor Name: Titan 180
• Motor Type: 87-turn brushed motor
• Motor Weight: 1.16 ounces (33 g)
• Motor Length: 1.66 inches (42 mm)
• Motor Diameter: .81 inches (21 mm)

ESC Specs

• ESC Name: ECM 2.5™
• ESC Type: Brushed
• ESC Case Size: 1.79 inches (45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm)
• ESC Weight: .92 ounces (26 g)

Important Notes

• The charger requires a USB power source.
• The transmitter requires 4 'AA' batteries (sold separately).
• Shipping Restrictions: Continental US (48 states) ground shipping only. No express shipping or shipping to APO/FPO AK, HI, PR, Virgin Islands, Guam, or overseas.
