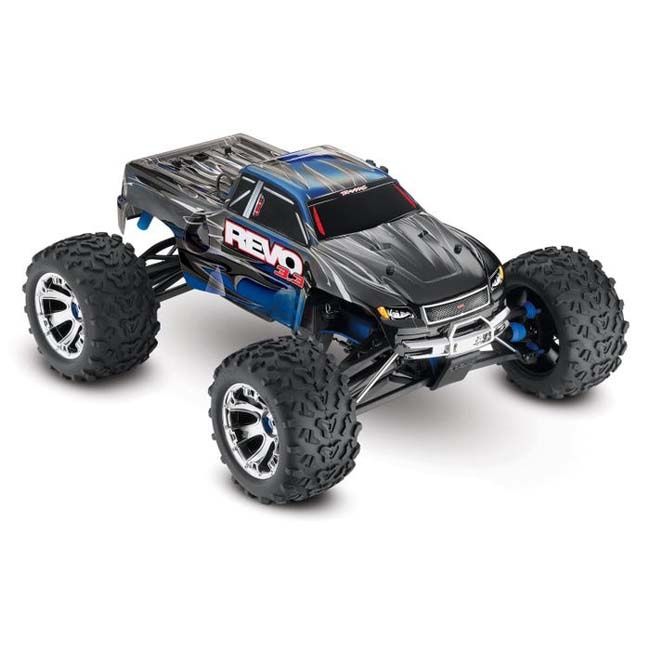

TRX-53097-3-BLUE Traxxas Revo® 3.3: 4WD Nitro-Powered Monster Truck (with Telemetry Sensors) with TQi 2.4GHz Radio System

Revo 3.3

Model Details:

MODEL 53097-3: Revo 3.3 is a 1/10 scale 4WD nitro monster truck, fully assembled and Ready-To-Race®. It features:

• TQi™ 2.4 GHz radio system with Traxxas Stability Management®.
• Traxxas Link Wireless Module.
• TRX® 3.3 Racing Engine.
• ProGraphix® painted body.

What’s In The Box:

• Revo 3.3 with TRX 3.3 engine.
• Quick Start Guide.
• TQi™ 2.4 GHz radio system with installed wireless module.
• Starter box with battery and charger.
• 5-cell 1200 mAh receiver pack battery.
• Fuel bottle, spare filter & glow plug, and maintenance tools.

What You’ll Need:

• Nitro Fuel: Traxxas Top Fuel, 20% or 33%.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

Key Features:

ProGraphix® Painted Body

• Pre-painted body with applied decals.
• Tough front and rear tube bumpers.
• Adjustable wheelie bar.

TRX® 3.3 Racing Engine

• Large-bore piston and sleeve deliver extreme power.
• Oversized dual-stage air filter.
• Polished aluminum dual-chamber tuned exhaust pipe.
• Slide carburetor.
• Knife-edged connecting rod.
• Large aluminum blue-anodized cooling head.
• Super-light piston and rod.
• High-performance ball bearings.

EZ-Start® Electric Starting System

• Lights the glow plug and cranks the engine with the push of a button.
• Status LEDs.
• Includes starter battery and charger.

Traxxas Stability Management® (TSM)

• Improves straight-line acceleration and braking on low-traction surfaces.
• Maintains steering composure for throttle-on powerslides.
• Never dulls the throttle or slows the vehicle.
• Adjustable assistance from off to 100% via the transmitter.

Blue-Anodized Aluminum Chassis

• Blue-anodized 3 mm aluminum 3D semi-monocoque chassis.
• Tall 4.25″ center ground clearance.
• Rugged front and rear skid plates.
• Large 150 cc fuel tank extends run time.

TQi™ 2.4 GHz High Output Radio System

• TQi 2.4 GHz 3-channel high output transmitter.
• Includes Traxxas Link™ Wireless Module.
• Factory-installed speed, RPM, and temperature telemetry sensors.
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models.
• Multi-function knob.
• 5-channel TSM micro receiver (6533) with fail-safe security and integrated telemetry ports.
• Includes 1200 mAh NiMH receiver pack battery.
• Enclosed radio box protects sensitive electronics from dirt and fuel spills.

Transmission and Driveline:

• Auto-shifting, two-speed transmission that is simple, reliable, and easy to adjust.
• Ultra-compact with fewer moving parts.
• Low rotating mass for quick, high-revving acceleration.
• Constant drive engagement for smooth and instantly responsive performance.
• Sealed case protects gears and two-speed system from debris.
• Shaft-driven Four Wheel Drive.
• Tunable front and rear sealed, limited-slip gear differentials.
• Large diameter semi-metallic brake disc.
• Torque-Control™ slipper clutch.
• Semi-metallic pads.
• Finned aluminum alloy pressure plates.
• True constant-velocity U-joint driveshafts.
• Rubber seals for smooth, trouble-free performance.
• Extreme deflection for maximum suspension travel.

Steering:

• Dual digital waterproof high-torque Traxxas 2075 steering servos.
• Heavy-duty bellcrank with integrated servo saver.

Suspension:

• Progressive pushrod rocker-actuated suspension.
• Shocks are rigidly mounted to the chassis to minimize crash damage.
• Sealed pivot ball suspension arms.
• Captured rod ends that won’t pop off.

Springs and Shocks:

• Precise GTR™ shocks provide smooth, consistent damping performance.
• Threaded shock bodies for precise ride height adjustment.
• Hard-anodized PTFE-coated shock bodies with TiN-coated shock shafts.
• Red powder-coated springs.

Wheels and Tires:

• Pre-glued 6.3″ tall Maxx® tires with performance foam inserts.
• 3.8″ Mirror-chrome Geode™ wheels.
• 17 mm splined hex.

Additional Features:

• Backed by Unparalleled Traxxas Support and Parts Availability.
• Precision rubber-sealed ball bearings.
• Precision metric hex hardware throughout.
