TRX-82216-4 Traxxas TRX-4 Crawler Kit: 1/10 Scale 4WD Unassembled Chassis

Build the TRX-4 from the Ground Up

The Traxxas TRX-4 Crawler Kit (82216-4) is the full TRX-4 platform in unassembled form — same portal axles, same two-speed high/low transmission, same remote-locking T-Lock differentials, same waterproof electronics. You build the portal axles yourself, assemble the two-speed transmission, wire the electronics, and dial in the suspension. A full-color labeled-bag assembly manual guides every step. The result is a completely capable 1/10 scale trail crawler with a deep understanding of how it all works.

Body sold separately — fits any Traxxas 312 mm clipless Traxxas body; other wheelbase options are optional.

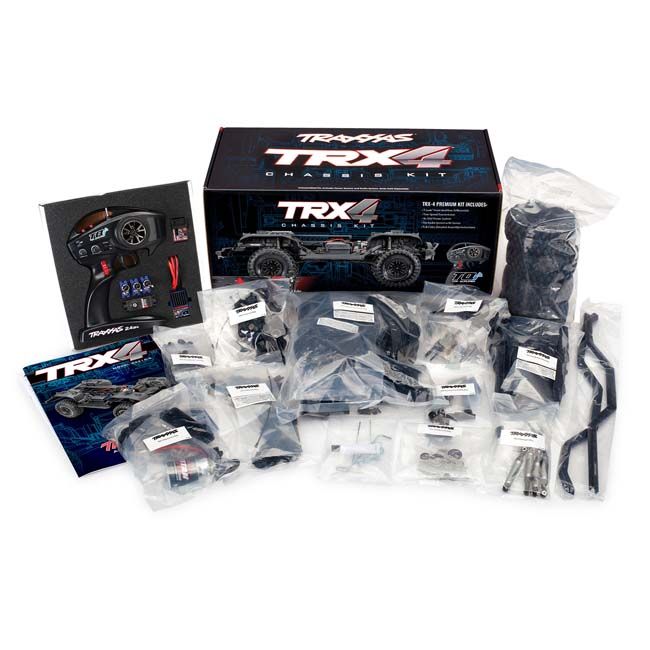

What's Included

• TRX-4 chassis assembly kit — all structural components in labeled bags
• XL-5™ HV waterproof electronic speed control
• Titan® 21T 550 reverse rotation brushed motor
• TQi™ 2.4GHz 4-channel radio system with 6533 5-channel receiver
• 2075X chassis-mounted metal gear digital servo
• Pre-assembled aluminum GTS coilover shocks (pre-filled with oil)
• Pre-assembled suspension links
• Pre-glued 1.9" Canyon Trail tires on black scale wheels
• Full-color step-by-step assembly manual
• High-quality maintenance tools

You Also Need

• ⚠️ Body not included — requires a Traxxas 312 mm (or other) wheelbase clipless body, sold separately.
• ⚠️ Battery not included — accepts NiMH (6-7 cell) or LiPo (2S-3S). Battery compartment: 159 × 47 × 23/26 mm. Traxxas 3S LiPo Completer Pack (2970-3S) recommended for up to 2 hours of run time.
• ⚠️ Charger not included — Traxxas EZ-Peak® Live (2971) recommended.
• ⚠️ 4 AA alkaline batteries required for transmitter — not included. Traxxas AA batteries (2914) available separately.
• ⚠️ Metric hex drivers required for assembly. Traxxas 7-piece Metric Hex & Nut Driver Set (8712) recommended.

Size & Scale

1/10 scale — about the size of a watermelon or a pizza box. Assembled dimensions (without body): 20.57" L × 9.78" W × 10.47" H (523 × 249 × 266 mm). Default wheelbase: 12.28" (312 mm). Weight: 6.43 lbs (2.91 kg).

Key Features

• Portal axles you build yourself: Portal axles raise the chassis for 3.14" of center ground clearance — more than an inch taller than straight-axle designs. Internal gear reduction also virtually eliminates torque twist. You assemble them from scratch in this kit.
• Two-speed high/low transmission with remote shifting: Shift between high range for trail blasting and low range for maximum torque on technical terrain — all from the transmitter without stopping.
• T-Lock remote-locking differentials: Lock and unlock both front and rear differentials independently from the transmitter. Open for easy driving, locked for maximum traction when you need it.
• XL-5 HV ESC with 5 drive profiles: Sport (Forward / Brake / Reverse), Race (Forward / Brake only — reverse locked out), Training (Forward / Brake / Reverse — 50% power), Trail (Forward / Brake / Reverse with drag brake in neutral), and Crawl (Forward / instant reverse — no neutral, 100% hill-hold brake). 3S LiPo capable.
• Adjustable steel ladder frame: Four wheelbase positions (300, 312, 324, 336 mm) and adjustable rock rails, bumpers, and rear shock tower positions — configure for your preferred body and terrain.
• TQi 4-channel radio with Cruise Control: Compatible with the optional Traxxas Link Wireless Module (6511) for app-based tuning. Built-in Cruise Control for matching trail pace hands-free.

Who It's For

Skill Level 2 — more complex than a Slash kit, but Traxxas' labeled bag system and full-color manual keep it manageable for a motivated builder. Well-suited for experienced hobbyists who want full knowledge of their rig, or anyone making the jump from RTR crawling to a custom-built platform. Designed for rock crawling, trail driving, and technical terrain — creek crossings, mud, and snow included thanks to fully waterproof electronics.

Reference Numbers

Traxxas PN: 82216-4 · Retailer PN: TRA82216-4 · JackWagon SKU: TRX-82216-4 · UPC: 020334032676
