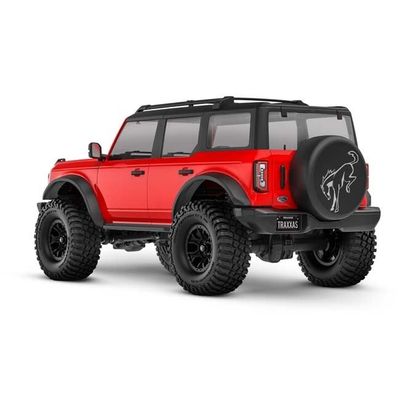

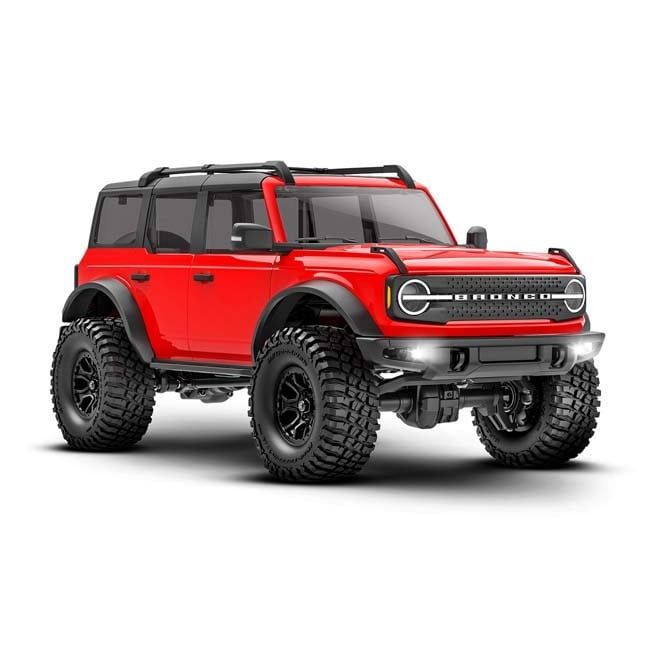

TRX-97074-1-RED Traxxas TRX-4m Crawler with Ford® Bronco® (Red): 1/18 Scale 4WD Electric Truck w/ TQ™ 2.4GHz Radio, ECM-2.5 Electronic Control Module (fwd/rev), and Titan® 87T motor. Includes: 750 mAh

TRX-4M Ford Bronco 1/18 Trail Crawler

MODEL 97074-1: 1/18 Scale 4X4 Trail Truck

Fully-Assembled, Ready-To-Drive®, with TQ™ 2.4GHz 2-channel Transmitter, and ECM-2.5™ Waterproof Electronics

TRX-4M Overview

TRX-4M offers a new way to experience the fun, adventure, and scale realism of the TRX-4 in a compact 1/18 platform. It bridges the gap between the small crawler scene and 1/10 scale quality and performance.

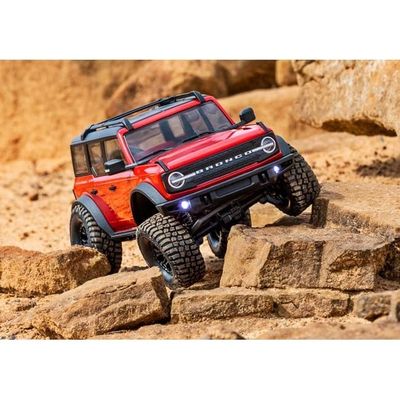

• Outdoor Capability: Oil-filled shocks, steel frame rails, and a smooth drivetrain deliver true outdoor performance over rocks, grass, and streams.
• Indoor Maneuverability: A tight turning radius and precise throttle control make it perfect for indoor use.

Key Features

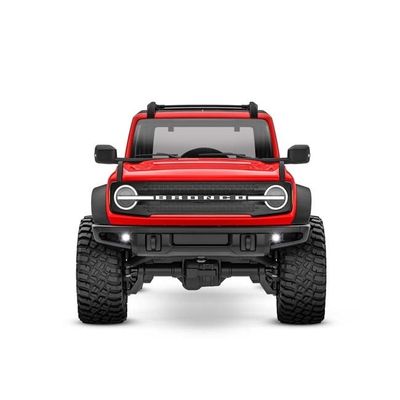

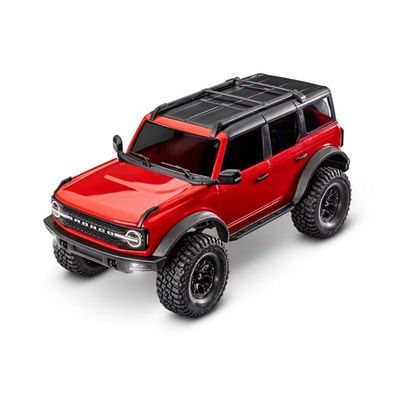

Officially Licensed Ford® Bronco Clipless Body

• Highly-detailed ABS hard body
• Molded-in color won’t chip or flake
• Tough fender flares and rock sliders
• Realistic side mirrors, door handles, & wipers
• LED bumper lights
• Heavy-duty latching clips hold tightly on the trail and release in seconds

ECM-2.5™ Electronic Control Module

• Combines ESC, receiver, and LED controller into one chassis
• Fully waterproof for all-weather fun
• Three drive profiles:
  • Sport Mode: Forward / brake / reverse
  • Trail Mode: Forward / brake / reverse with trail-tuned drag brake in neutral
  • Crawl Mode: Forward / instant reverse (no neutral) with 100% hill-holding brake
• Traxxas EZ-Set® one-button setup
• Built-in Pro Scale® LED functionality
• Two-stage low voltage protection (LVD)
• Motor overload protection

TQ™ 2.4 GHz Transmitter

• Full-size 2-channel transmitter
• All-day comfort with precise long-range control

Titan® 180 87-Turn Brushed Motor

• Fixed gear mesh requires no adjustment
• Forward mounting position enhances crawling dynamics

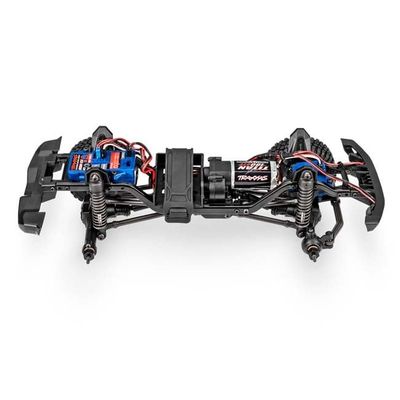

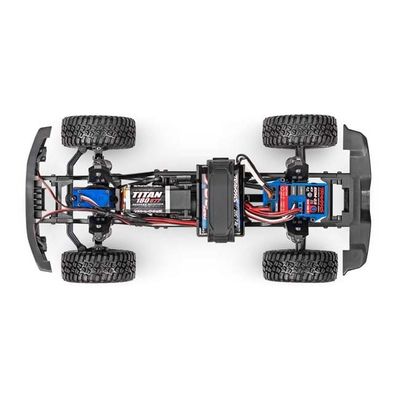

Heavy-Duty Steel Ladder Frame

• Deep C-channel design
• Thicker center section for maximum rigidity
• Rails run from bumper to bumper

Drivetrain

• Full-time shaft-driven 4-wheel drive

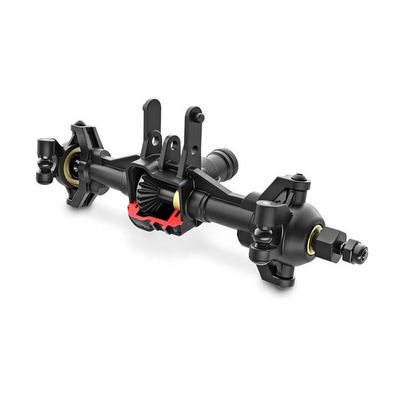

• Solid steel axles
• Spool-equipped front and rear axles
• Heavy-duty CV center driveshafts

Low-CG Battery Tray

• Concentrates weight lower for improved stability
• Wide rubber strap secures battery in place

Optional Transmission Ratios (sold separately)

• Optional Low Range or Speed Gearing transmissions
• Modular design swaps out in minutes

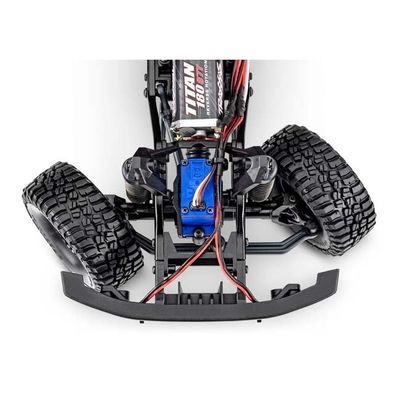

Steering

• Heavy-duty 2065T steering servo with metal main gear
• Superior 45° steering angle
• Direct steering (no servo saver)

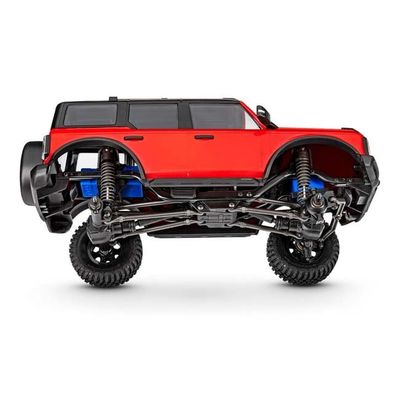

Suspension

• Triangulated 4-link front and rear suspension
• Heavy-duty rod ends

Oil-Filled GTM™ Shocks

• Smooth, controlled damping for realistic driving body movements
• Adjustable pre-load spacers
• Easily refreshed with available rebuild kits

Wheels and Tires

• Highly-detailed 1″ wheels with 7 mm hex
• Replica BF-Goodrich® Mud Terrain T/A® KM3 tires
• Trail-tuned rubber compound

Battery and Charger Included

• High-capacity 2-cell LiPo battery with iD®
  • 7.4 volts
  • 750 mAh for over an hour of run time
• 2-amp USB-powered charger
• iD® technology ensures faster, safer charging

Additional Features

• Low-Maintenance Self-Lubricating Bushings
• Durable Hex Hardware

Model Specifications

• Model Name: TRX-4M Ford Bronco
• Model Type: Trail / Crawler
• Model Skill Level: 1
• Scale: 1/18
• Weight: 1.03 pounds (468 g)
• Length: 10.3 inches (262 mm)
• Width: 4.9 inches (124 mm)
• Front Track: 4.9 inches (124 mm)
• Rear Track: 4.9 inches (124 mm)
• Height: 4.6 inches (117 mm)
• Wheelbase: 6.1 inches (155 mm)
• Center Ground Clearance: 1.12 inches (29 mm)
• Drivetrain: Shaft-driven 4WD
• Transmission: Single speed direct drive
• Differential Type: Locked spool
• Gear Ratio (Internal): 11.38
• Gear Pitch: 64 pitch
• Servo(s): 2065T
• Radio System: TQ 2.4 GHz 2-channel transmitter
• Battery Compartment Specs: 51 mm X 31 mm X

Motor Specifications

• Motor Name: Titan 180
• Motor Type: 87-turn brushed motor
• Motor Weight: 1.16 ounces (33 g)
• Motor Length: 1.66 inches (42 mm)
• Motor Diameter: .81 inches (21 mm)

ESC Specifications

• ESC Name: ECM 2.5™
• ESC Type: Brushed
• ESC Case Size: 1.79 inches (45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm)
• ESC Weight: .92 ounces (26 g)

Additional Notes

• Charger requires a USB power source.
• Transmitter requires 4 'AA' batteries (sold separately).
• Shipping Restrictions: Continental US (48 states) ground shipping only. No express shipping or shipping to APO/FPO, AK, HI, PR, Virgin Islands, Guam, or overseas.
